Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: 01-31-2008
SECTION 5: PARTS SECTION
VACUUM SWITCH ASSEMBLY INSTALLATION
48
Detergent switch (Red Tube)
1. Connect black wire from gray cable to black/yellow wire
from switch.
2. Connect brown wire from gray cable to blue wire from
switch.
Sanitizer Switch (White Tube)
1. Connect white wire from gray cable to white/yellow wire
from switch.
2. Connect red wire from gray cable to blue wire from switch.
Remove locknut on plumbing support brkt. and mount
switch box over existing stud. Re-install brkt. and route red
and white tubes behind blue hose as shown.
Route gray cable down back and under tub along inlet
plumbing, remove wires from existing pressure switches
and connect to gray cable per note below.

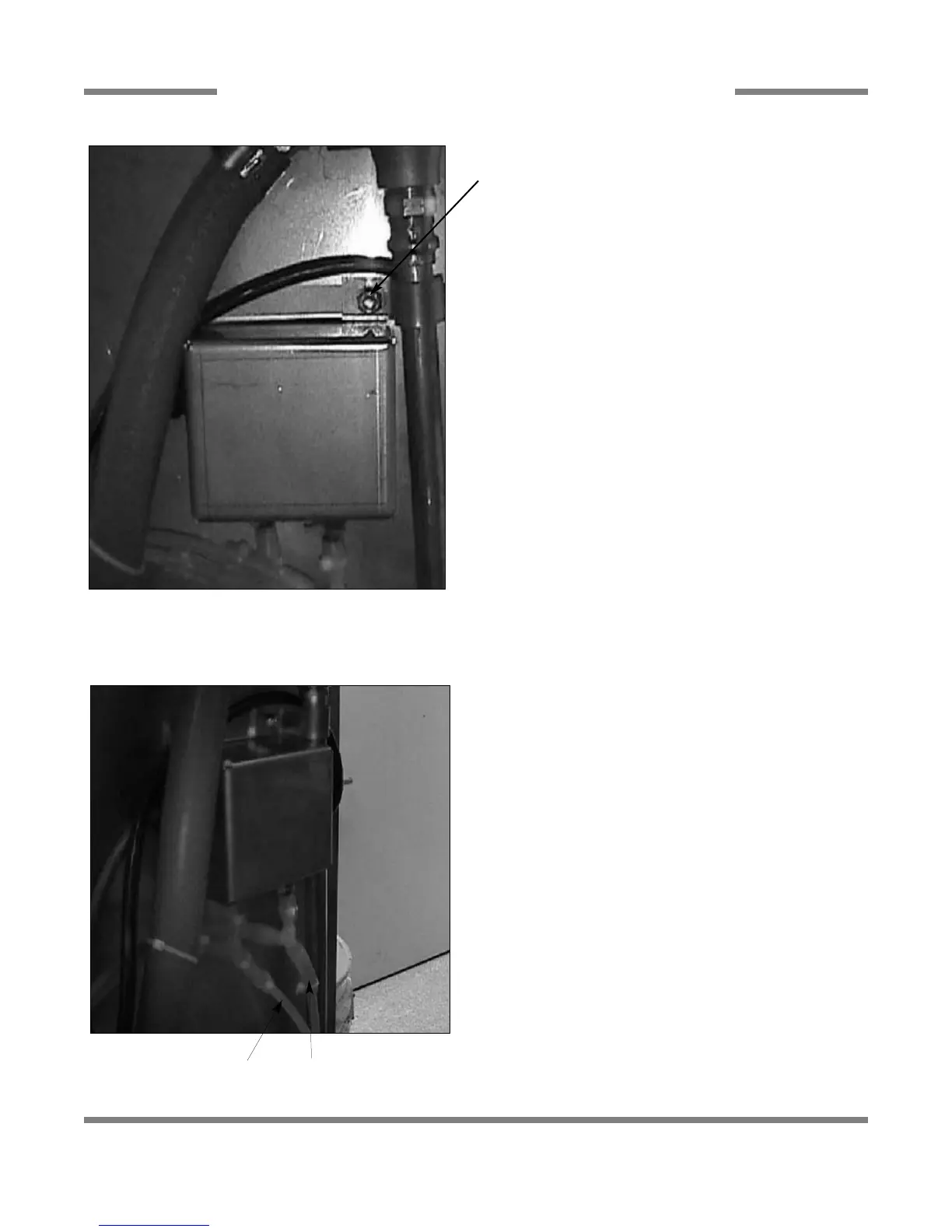

Back of machine showing use of existing mounting
hardware for installation of vacuum switch assembly.
After cutting the existing red & white tube approximately 12"
above the gray tube stiffener, insert the cut ends into the
clear tubes as shown.
White
Red
