Jackson Avenger LT - Plumbing Assemblies

Avenger™ Series Technical Manual 7610-003-34-01 Rev. A
Issued: 10-07-2007 Revised:
09-18-2009
SECTION 5: PARTS SECTION
30

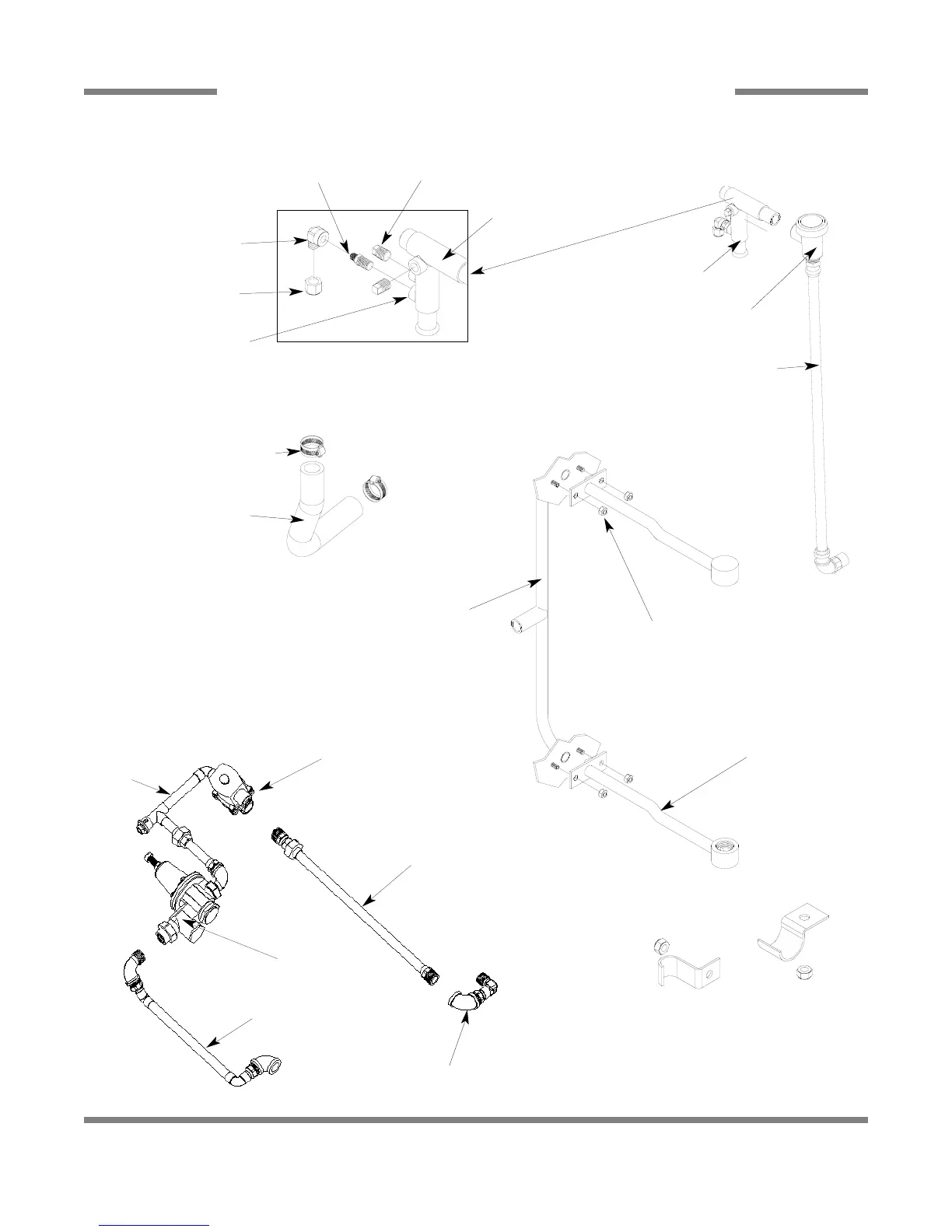

PLUMBING ASSEMBLIES - AVENGER™HT
Complete Incoming Plumbing Assembly
05700-003-36-32
Vacuum Breaker
04820-003-06-13
Vacuum Breaker
Tubing Assembly
05700-003-32-15
Vacuum Plumbing Assembly
05700-003-32-14
Injector Weldment
05700-031-41-83
Injector Assembly
05700-003-22-01
Nut, P/P for 1/8” Tubing
04730-011-59-45
Bushing, 1/4 x 1/8 SS
(Not Shown)
04730-003-05-61
Fitting, Outlet Elbow
04820-111-51-18
Valve, Check
04820-111-51-14
Plug, 1/4” Brass
2 per machine
04730-209-01-00
Clamp, Pipe
05700-011-38-62
Clamp, Pipe
2 per assembly
05700-000-35-05
Clamp, Hose
04730-719-06-09
Injector Hose, 3/4” x 7 1/2 ”
05700-003-33-49
Connects to
Rinse Injector
Connects to
Rinse Stiffener
Rinse Stiffener
(Not replaceable,
part of the tub
weldment)
Injector Hose Spring
05340-003-33-50
Locknut, 1/4”-20 S/S
Hex with Nylon Insert
05310-374-01-00
Locknut, 1/4”-20 S/S
Hex with Nylon Insert
05310-374-01-00
Rinse Hub Weldment
05700-021-38-31
Inlet Booster Plumbing
05700-003-33-97
Inlet Hook-Up Plumbing
05700-003-33-99
Regulator
04820-100-04-07
Inlet Booster Valve
Plumbing
05700-003-33-98
Incoming Plumbing
Assembly
05700-003-32-17
Valve, Solenoid 1/2” 220 volt
04810-
003-71-56
Valve, Solenoid 1/2" 110 Volt
04810-003-71-55
