Jackson Avenger LT - Stands, 6 & 18

Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: N/A
SECTION 5: PARTS SECTION
44

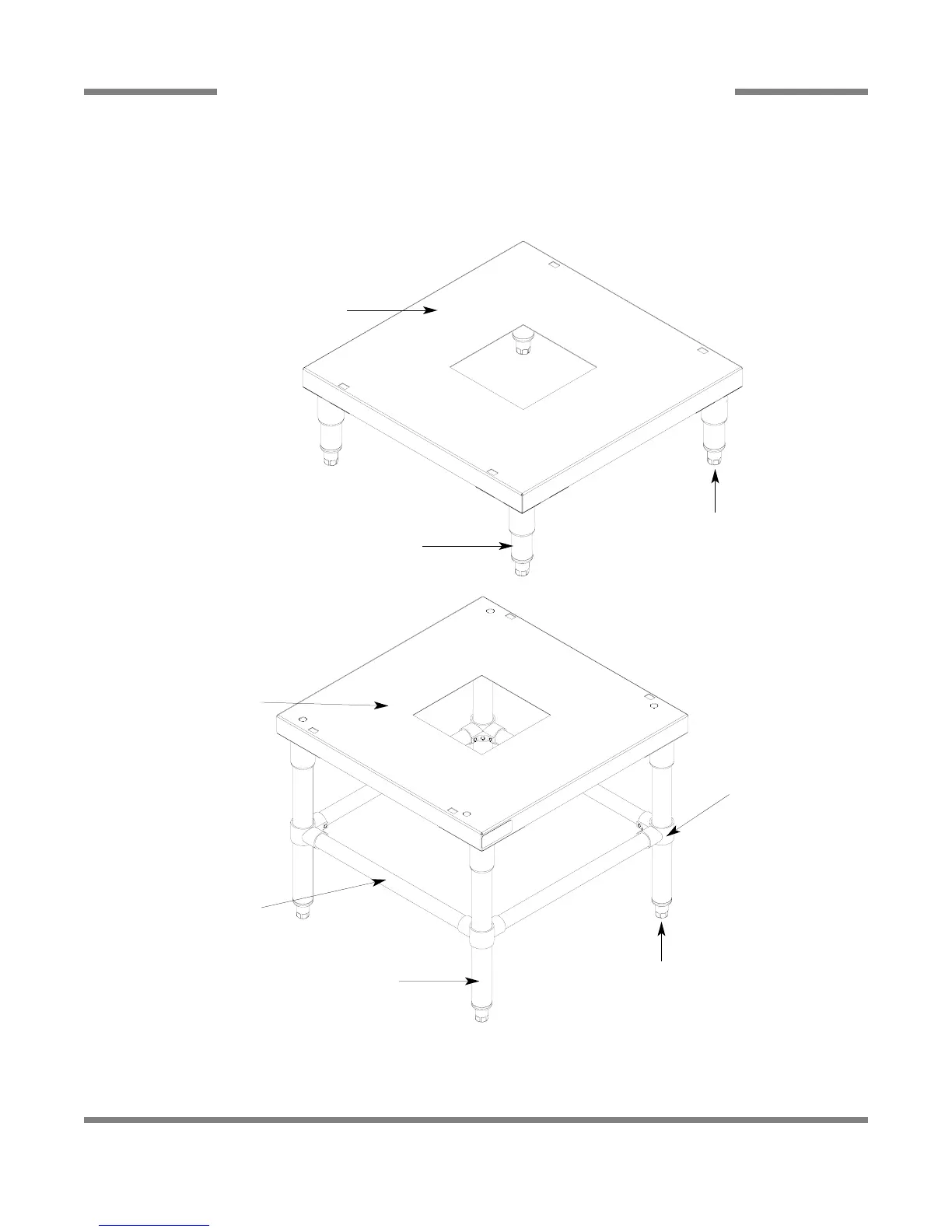

STANDS & COMPONENTS
6” Stand Assembly
05700-003-34-24
Stand
05700-002-88-82
Bullet Foot
05340-108-01-03
6” Leg
05700-021-61-10
18” Stand Assembly
05700-003-34-25
Stand
05700-002-88-82
18” Leg
05700-002-89-47
Cross Brace
05700-003-25-90
Bullet Foot
05340-108-01-03
Cross Member
Bracket
04730-003-25-89
Installation Instructions: To install the stand, first remove the adjustable feet from the machine. Place machine on table
and use the square mounting holes to line up the machine. Re-insert adjustable feet through bottom of table top and tighten
to lock machine to table.
