Jackson Avenger LT - Frame & Panel Components

Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: N/A
SECTION 5: PARTS SECTION
42

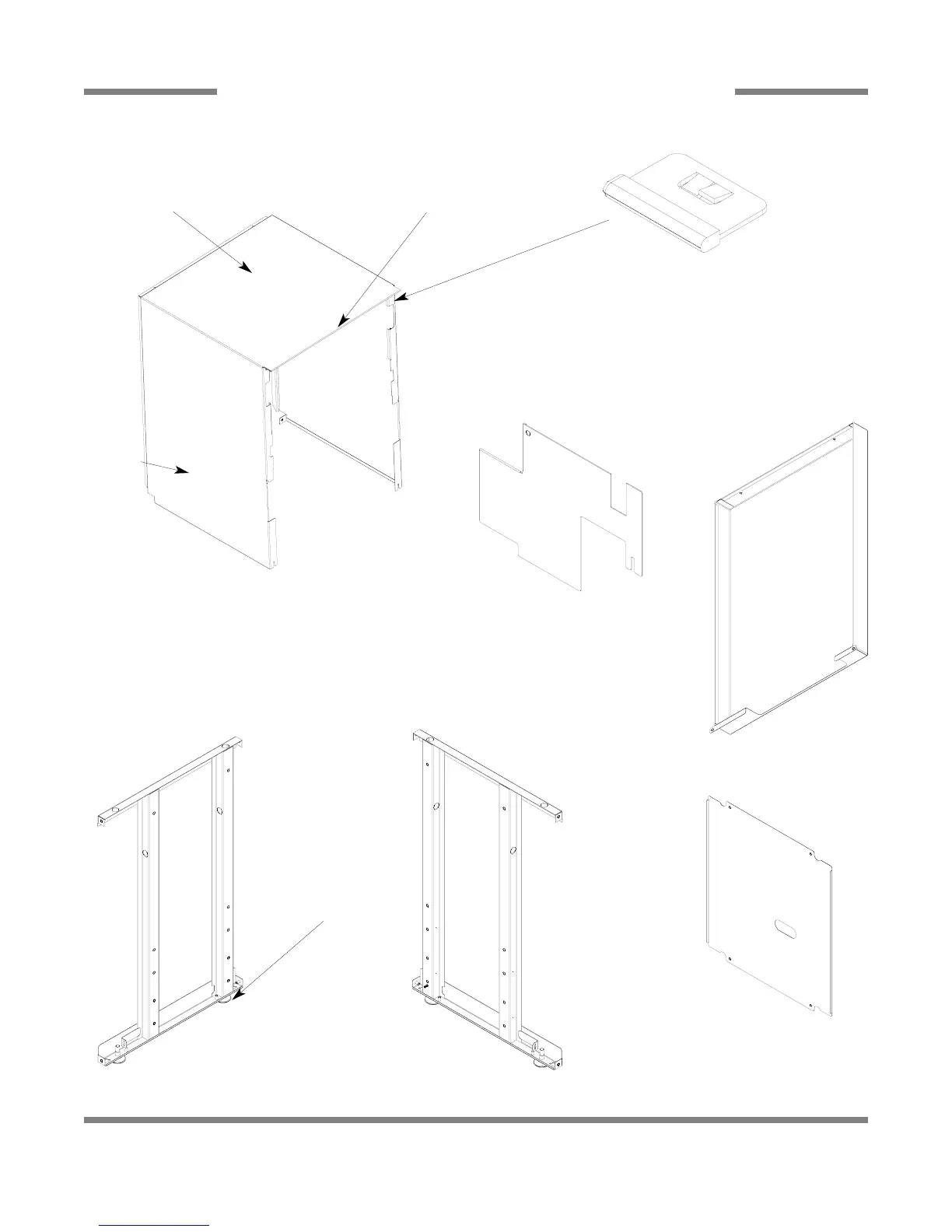

FRAME & PANEL COMPONENTS
Right Frame Weldment
05700-003-31-90
Left Frame Weldment
05700-003-31-91
Bottom Panel
05700-003-37-87
The swivel feet used
on the frames may be
ordered using
05340-108-02-00
Hardware:
Nut, 1/4”-20 Serrated Hex (4 per Asm)
05310-011-66-49
Nut, 5/16”-18 Cad Spline (4 per Asm)
05310-959-03-00
Shroud Plug (2 per unit)
05700-003-32-50
Standard Back Panel
05700-003-36-35
Optional Back Panel
05700-003-33-55
W-Left Shroud
05700-003-37-04
W-Top Shroud
05700-003-37-06
W-Right Shroud
05700-003-37-05
