Jackson Avenger LT - Solenoid Valve Repair Kit;Vacuum Breaker Repair Kit; Water Pressure Regulator Kit (WPRK Option)

Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: N/A
SECTION 5: PARTS SECTION
32

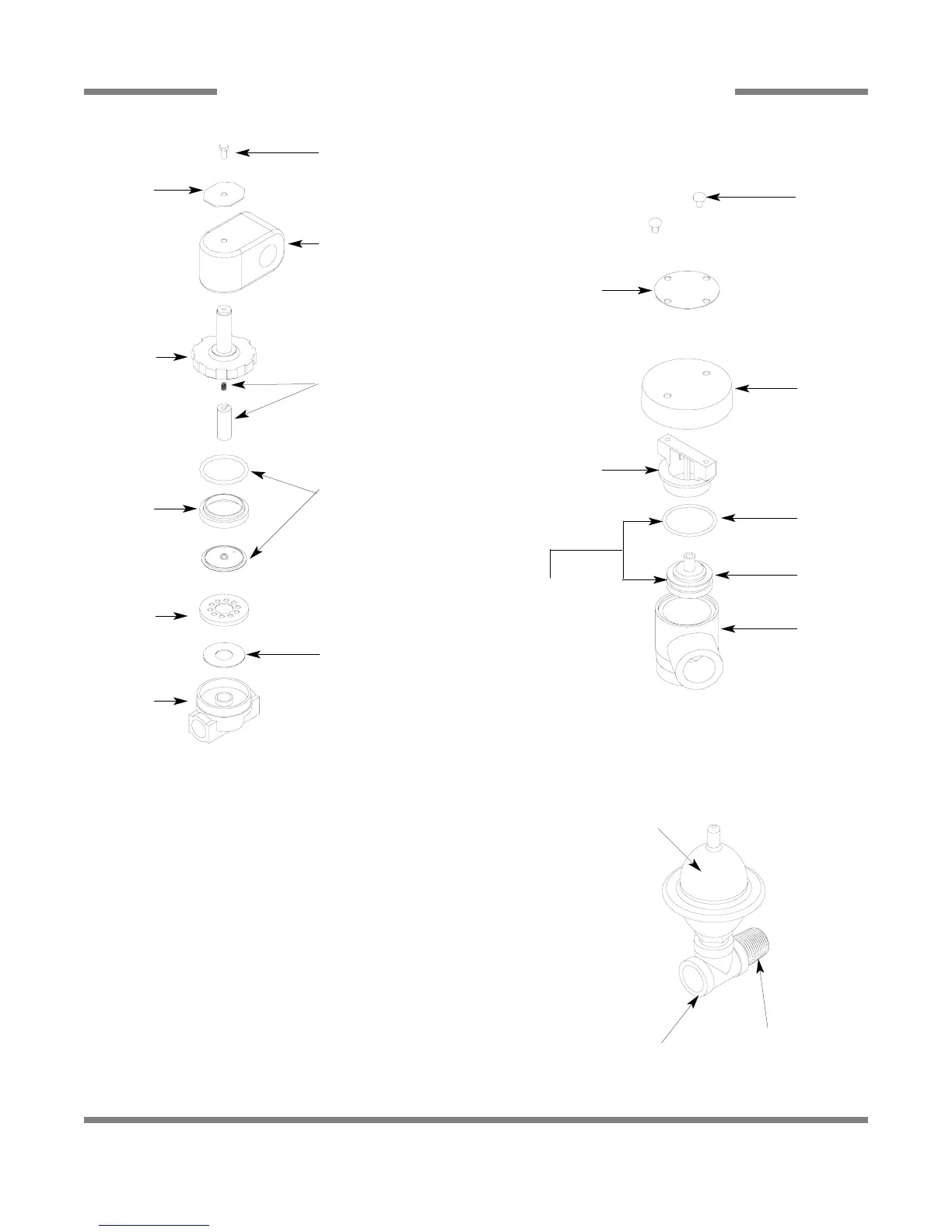

RINSE SOLENOID VALVE & VACUUM BREAKER REPAIR PARTS KITS/WATER HAMMER ARRESTOR KIT OPTION
Complete 110 Volt Solenoid Valve Assembly, 1/2”
04810-100-12-18
Coil & Housing only, 1/2”
06401-003-07-43
Complete 220 Volt Solenoid Valve Assembly, 1/2”
04810-100-09-18
Coil & Housing only, 1/2”
06401-003-07-44
Screw
Data Plate
Coil & Housing
Valve Bonnet
Spring & Plunger Kit
06401-003-07-40
Spring position is moved
for clarity.
Goes below the plunger.
O-Ring & Diaphragm
06401-003-07-41
Diaphragm
Retainer
Screen
Retainer
Mesh Screen
Valve Body
Components of
Repair Kit
06401-003-06-23
Cap Screw
Data Plate
Cap
O-Ring
Plunger
Body
Cap Retainer
Complete Vacuum Breaker Assembly, 1/2” NPT
04820-003-06-13
Water Hammer Arrestor Assembly
05700-002-64-67
Water Hammer Arrestor,
1/2" NPT
06685-100-05-00
Tee, 1/2” x 1/2” x 1/2”
04730-211-27-00
Close Nipple, 1/2”
04730-207-15-00
