Jackson Avenger LT - Terminal Block Box Assembly

Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: 11-20-2007
SECTION 5: PARTS SECTION
24

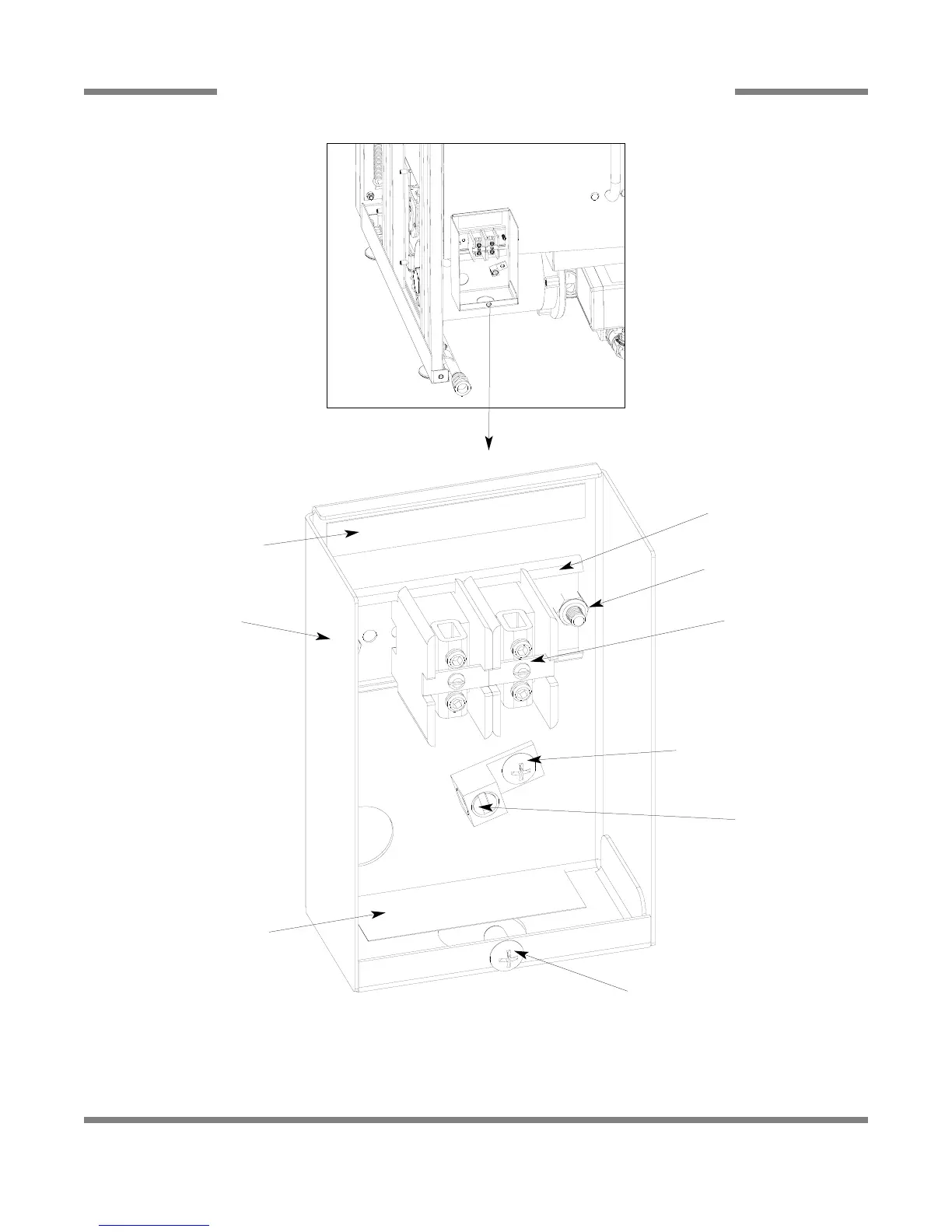

TERMINAL BLOCK BOX ASSEMBLY
Decal, Copper Conductors
09905-011-62-72
Terminal Block Box
05700-003-27-69
Terminal Block Box Cover
(Not Shown)
05700-003-27-70
Decal, Power Connections
09905-011-47-35
Terminal Block Track
05700-000-43-60
Locknut, 10-24 S/S Hex w/
Nylon Insert
05310-373-01-00
Screw, 10-32 x 1/2”
05305-011-39-36
Screw, 10-32 x 1/2”
05305-011-39-36
Terminal Block
(2 Per) (3 per 480V)
05940-500-02-19
Ground Lug
05940-200-76-00
