Jackson Avenger LT - Miscellaneous Door Components

Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: N/A
SECTION 5: PARTS SECTION
41

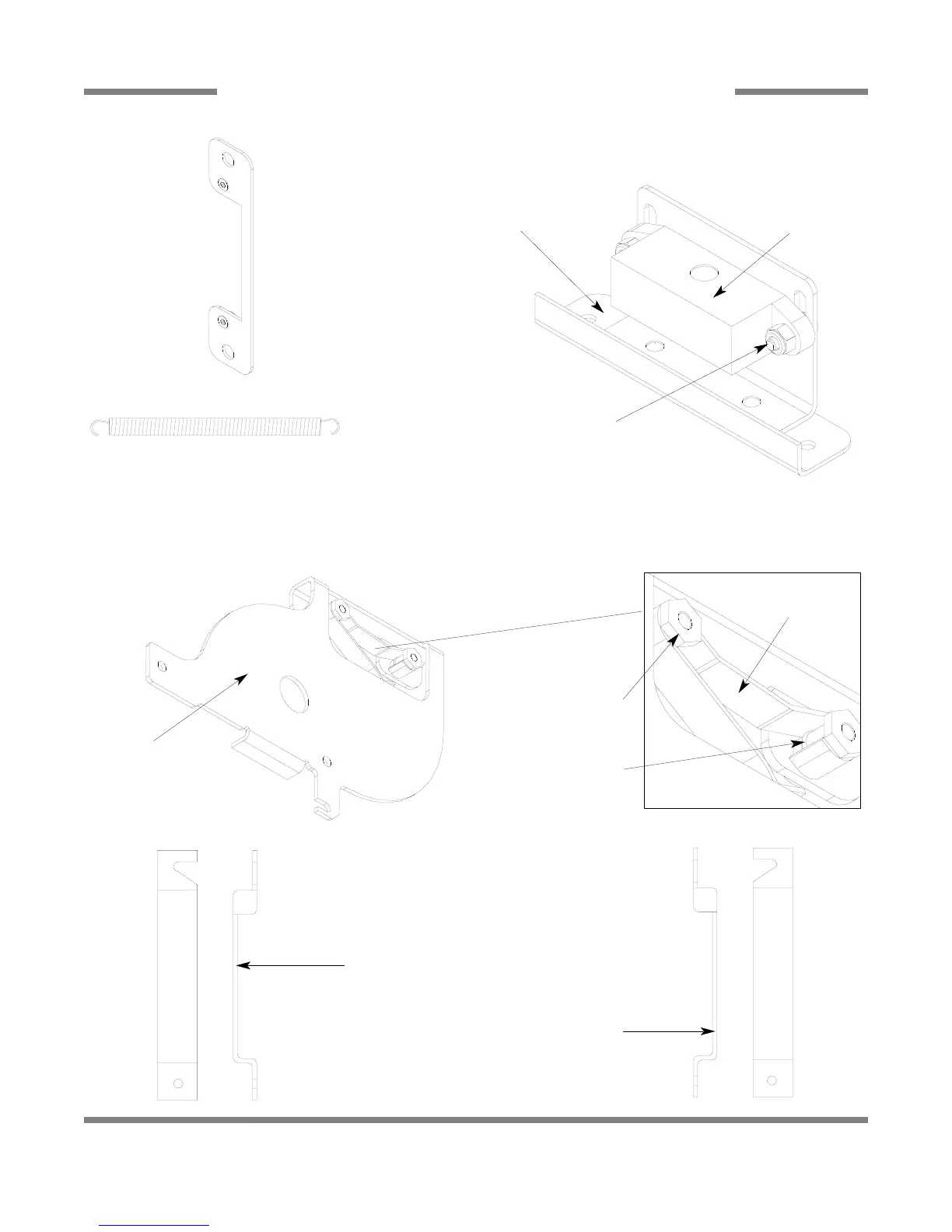

MISCELLANEOUS DOOR COMPONENTS
Door Spring
05700-003-32-85
HInge Stop Assembly
Right (Shown): 05700-003-32-61
Left: 05700-003-32-60
O-ring (2 per Asm)
05330-003-32-34
Latch Nut (2 per Asm)
05700-003-32-33
Latch Spring
05700-003-32-32
Cover, Right HInge Weldment
05700-002-18-42
Hinge Components secured with:
Locknut, 1/4”-20 S/S Hex with Nylon Insert
05310-374-01-00
Cover, Left Hinge Weldment
05700-002-18-41
Switch Mounting Plate
Assembly
05700-003-33-54
HInge Stop Weldment
Right (Shown): 05700-003-32-63
Left: 05700-003-32-61
Door Switch & Bracket Assembly
05700-003-32-21
Door Switch
05930-003-31-44
Door Switch Bracket
05700-003-31-43
Hardware:
Locknut, 6-32 S/S Hex with Nylon Insert
05310-373-03-00
Screw, 6-32 x 1/4” Flat Head
05305-171-01-00
