ITEM QTY DESCRIPTION Mfg. No.
1 1 Outer Door Weldment 05700-003-33-37
2 1 Inner Door 05700-003-33-21
3 1 Door Handle 05700-003-26-62
4 2 Bolt, 1/4”-20 x 3/8" Long 05305-274-20-00
5 1 Channel, Right Seal 05700-003-33-19
6 1 Channel, Left Seal 05700-003-33-20
7 1 Channel, Top Seal 05700-003-33-22
8 12 Screw, 10-32 x 1/2” Pan Phillips Head 05305-011-44-52
9 1 Baffle, door 05700-003-33-38
10 1 Start Switch Assembly 05700-003-34-80
11 1 Hinge, Right Weldment 05700-003-32-72
12 1 Hinge, Left Weldment 05700-003-32-71
13 6 Screw, 1/4”-20 x 1-1/2” Flat Phillips Head 05305-011-44-50
14 2 Hinge Spacer 05700-003-33-42
15 2 Stop, Door Hinge 05700-003-32-55
16 2 Screw, No. 10 Pan Head, 18-8 S/S x 1/2” 05305-173-01-00
17 2 Retaining Plate Assembly 05700-011-44-37
18 1 Magnet, Reed Switch 05930-002-68-53
19 2 Locknut, 6-32 S/S Hex with Nylon Insert 05310-373-03-00
Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: N/A
SECTION 5: PARTS SECTION
DOOR ASSEMBLY (CONTINUED)
40

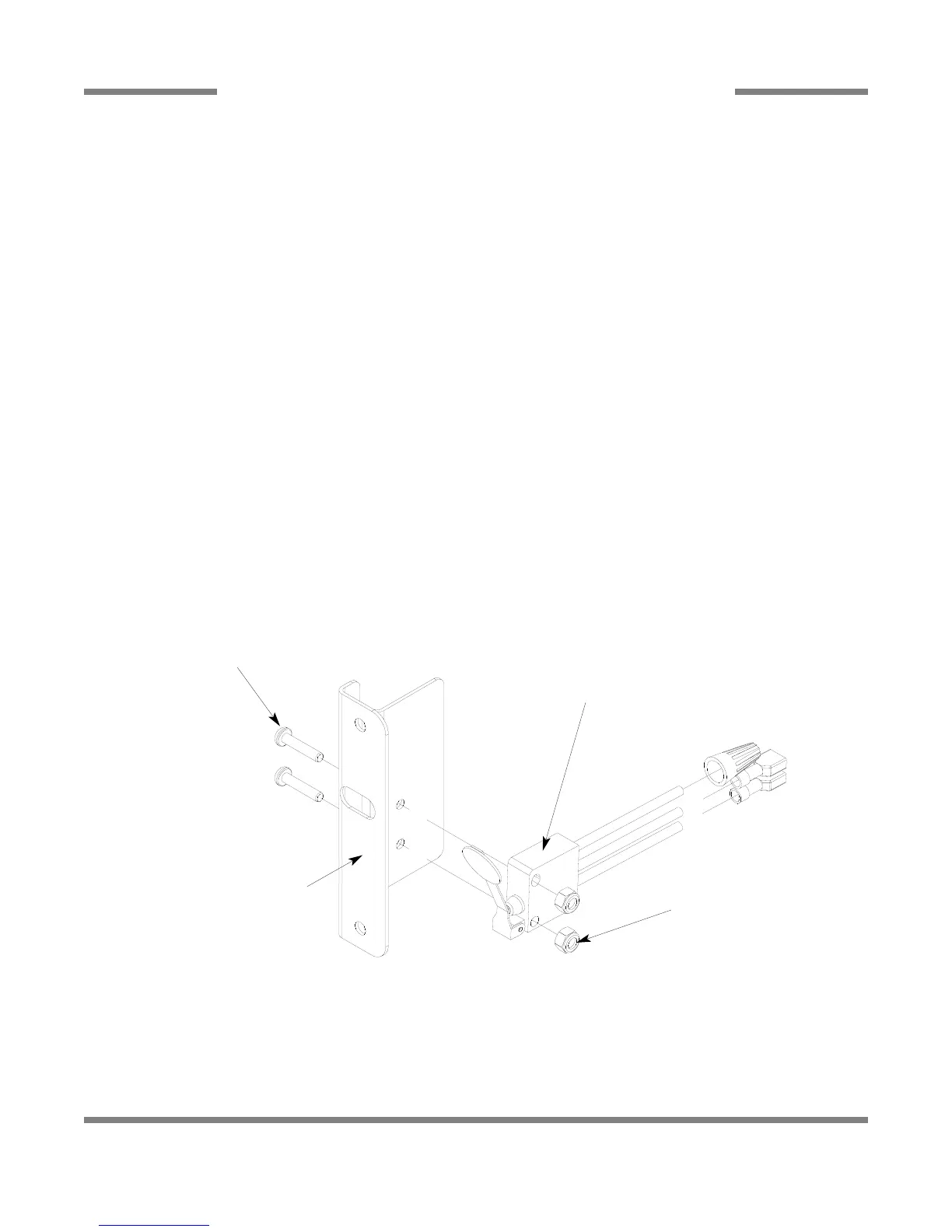

Cycle Switch Asm.
05700-003-52-14
Switch Cover Plate
05700-003-52-10
Cycle Switch Weldment
05700-003-36-81
Locknut, 6-32
05310-373-03-00
Screw, 6-32 x 5/8”
05305-011-39-85
