Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: 11-20-2007
SECTION 5: PARTS SECTION
CHEMICAL FEEDER PUMP ASSEMBLY - AVENGER™HT (CONTINUED)
26
Screw, 10-32 x 5/8” Truss Head
(4 per Asm.)
05305-003-02-12

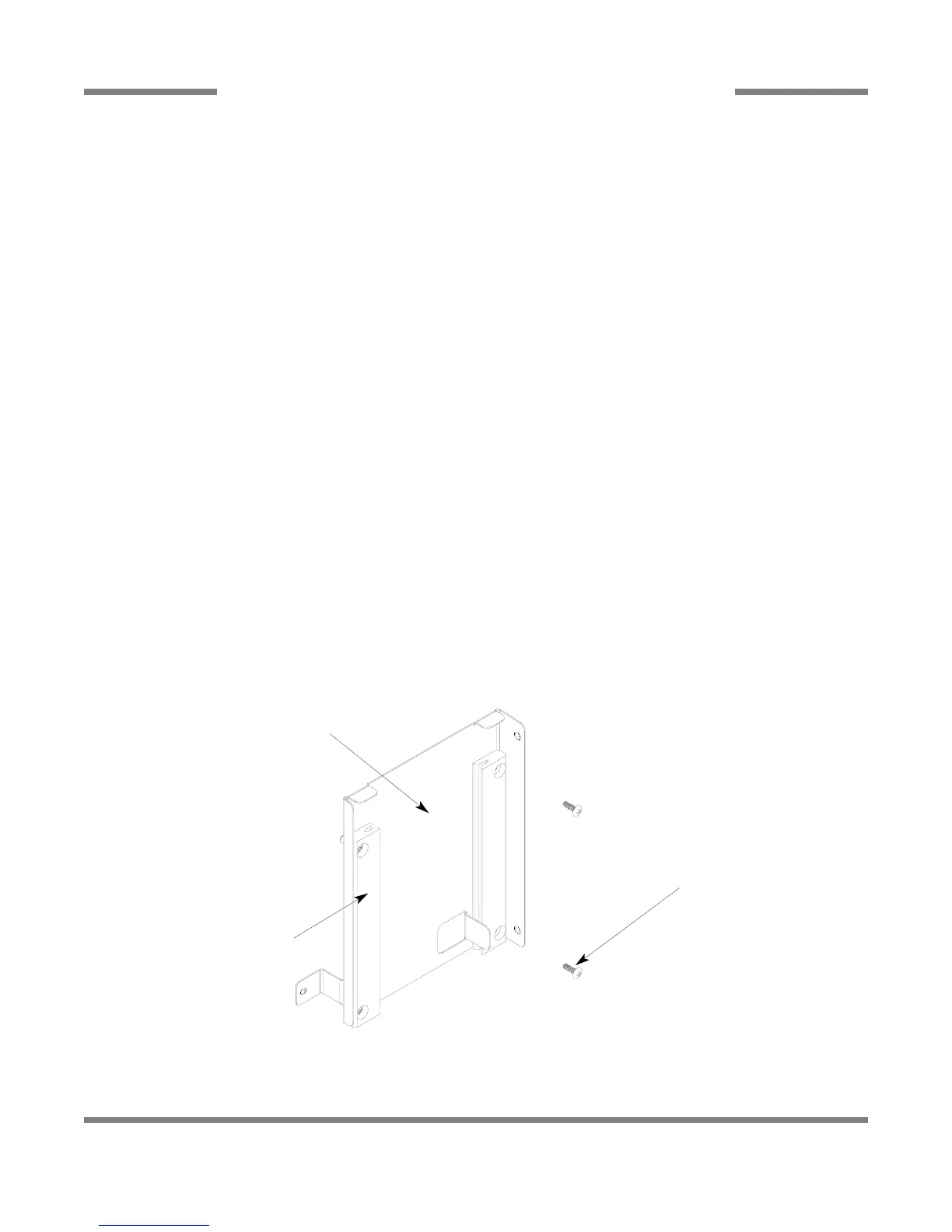

Complete Avenger™HT Peripump
Track Assembly
05700-003-33-46
Track, Peripump (2 per Asm.)
05700-003-33-44
Bracket, Track Mounting
05700-003-33-52
ITEM QTY DESCRIPTION Mfg. No.
1 1 Peri Pump Plate Weldment 05700-003-33-48
2 1 Detergent Feeder Pump, (Red Roller) 36RPM, 240V 05700-002-72-49
2 1 Motor, 36 RPM 115V (480V Machine) 04320-111-35-14
3 1 Rinse Aid Feeder Pump, (Black Roller), 14RPM, 240V 05700-002-72-48
3 1 Motor, 14 RPM 115V (480V Machine) 04320-111-35-13
4 2 Nylon Loop Strap 04320-002-71-22
5 2 Locknut, 6-32 W/Nylon Insert 05310-373-03-00
6 1 Red Tube 1/4” x 14 1/2” 05700-003-33-59
7 1 Tube, Tygoprene 3/16” x 8” 05700-003-22-89
8 1 Red Tube 1/4” x 72” 05700-003-33-58
9 1 Red Tube 1/4” x 120” 05700-003-33-57
10 1 1/8” x 120” Clear Tube 05700-003-33-61
11 1 1/8” x 93” Clear Tube 05700-003-33-60
12 1 12” Long Black Sleeve 05700-003-33-63
13 1 Blue Tube 1/4” x 22” 05700-001-86-78
14 2 Chemical Tube Stiffener 05700-002-66-49
15 1 Stop Bracket 05700-003-36-24
16 2 Screw, 10-32 x 3/8” 05305-173-12-00
To Next Page
