ITEM QTY DESCRIPTION Mfg. No.
1 1 Peri Pump Plate Channel 05700-003-53-25
2 2 Switch, Pressure 06685-003-36-13
3 2 Bracket, Pressure Switch 05700-003-53-03
4 2 Locknut, 10-24 W/Nylon Insert 05310-373-01-00
5 2 Motor, 36 RPM 115V 04320-111-35-14
6 1 Motor, 14 RPM 115V 04320-111-35-13
7 2 Peri Pump Kit (Black Roller) 04320-002-87-63
8 3 Chemical Tube Stiffener 05700-002-66-49
9 1 Peri Pump Kit (White Roller) Not Shown 04320-002-83-90
10 3 Tube, Tygoprene 05700-003-22-89
11 1 Wye, 1/4” Barbed PVDF 04730-003-36-14
12 4 5/16 ID Clear Tube 05700-003-53-26
13 1 Red Tube 1/4” x 100” 05700-003-03-45
14 1 White Tube 1/4” x 100” 05700-003-20-67
15 1 Blue Tube 1/4” x 48” 05700-002-62-11
16 1 Blue Tube 1/4” x 100” 05700-003-20-68
17 1 Red Tube 1/4” x 48” 05700-002-62-12
18 1 White Tube 1/4” x 48” 05700-002-62-13
19 - Tye Wrap 05945-602-01-16
Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: N/A
SECTION 5: PARTS SECTION
CHEMICAL FEEDER PUMP ASSEMBLY - AVENGER™LT (CONTINUED)

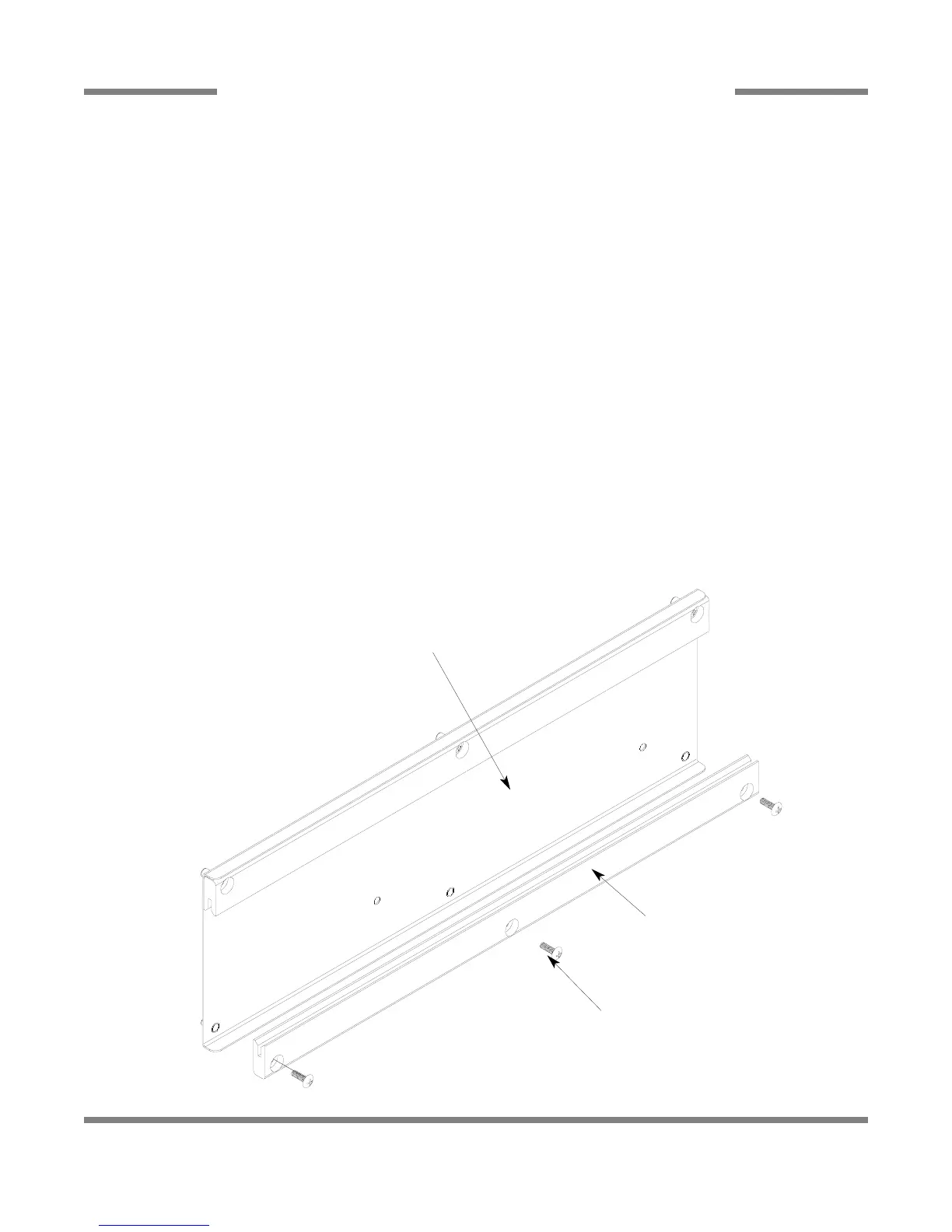

28
Screw, 10-32 x 5/8” Truss Head
(6 per Asm.)
05305-003-02-12
Complete Avenger™LT Peripump
Track Assembly
05700-003-33-31
Track, Peripump (2 per Asm.)
05700-003-33-29
Bracket, Track Mounting
05700-003-33-30
