7

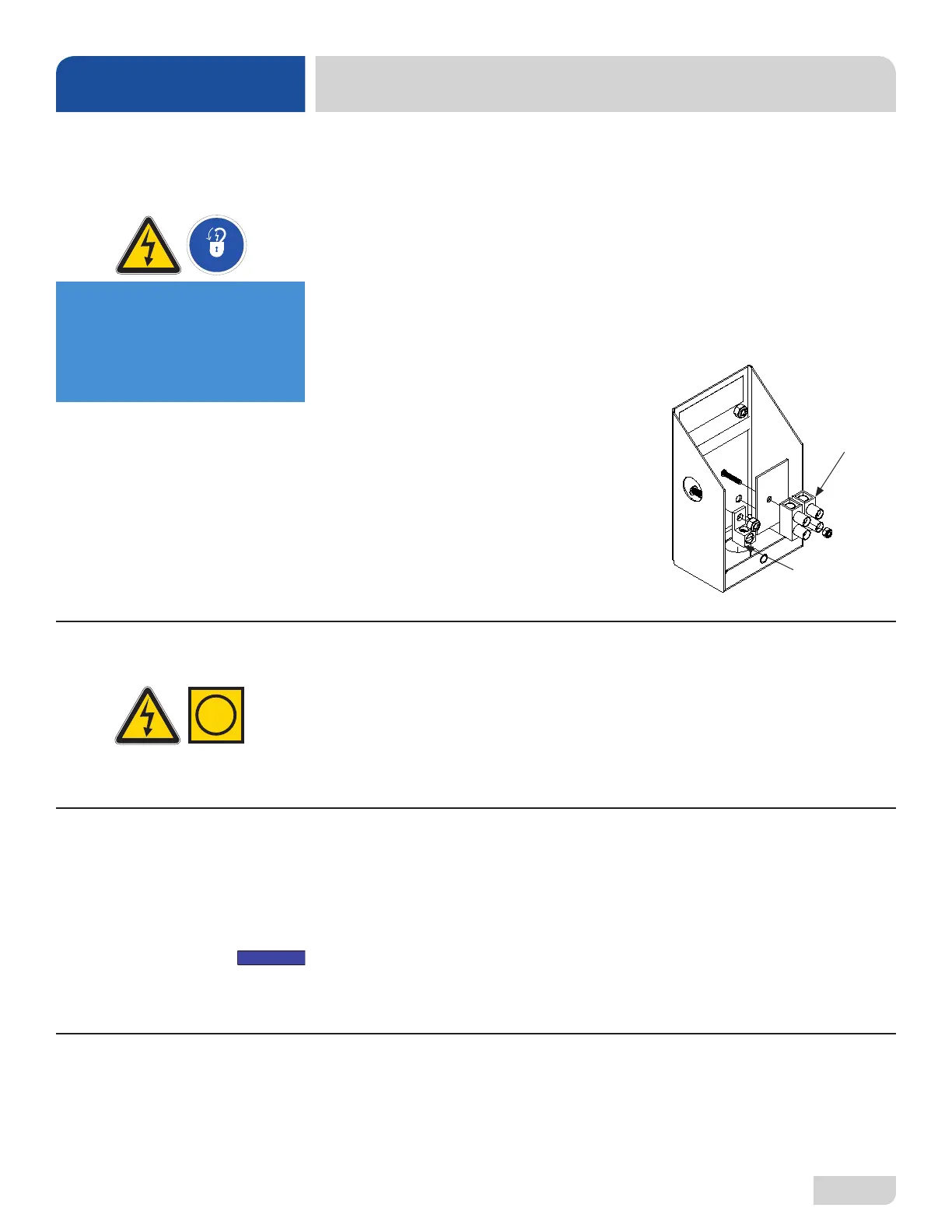

Ground Lug
Power Block
INSTRUCTIONS
INSTALLATION
Electrical and grounding conductors must comply with the applicable portions of the
National Electric Code ANSI/NFPA 70 (latest edition) and/or other electrical codes.
The data plate is located behind the door of the machine. Refer to the data plate for
machine operating requirements, machine voltage, total amperage, and serial number.
Remove the connection box lid to install the incoming power lines. Install 1/2” conduit
into the pre-punched holes in the back of the control box. Route power wires and
connect to power block and grounding lug. Install the service wires to the appropriate
terminals as they are marked on the terminal block. Install the grounding wire into
the lug provided. It is recommended that “DE-OX” or
another similar anti-oxidation agent be used on all
power connections.
Apply power to the machine. Check the incoming power at the terminal block and
ensure it corresponds with the voltage listed on the data plate. If not, contact a
qualied service agency to examine the problem. Do not run machine if voltage is
too high or too low. Shut o the service breaker and advise all proper personnel of
the location of the breaker and any problems. Replace the connection box lid and
tighten-down the screws.
This is a commercial machine and reaches temperatures that can exceed those
generated by a residential machine. Therefore, any surrounding countertops, cabinets,
ooring material, and suboor material must be designed and/or selected with these
higher temperatures in mind.
Any damage to surrounding area that is caused by heat and/or moisture to materials
that are not recommended for higher temperatures will not be covered under warranty
or by the manufacturer.
The temperature setpoints on this unit have been set at the factory. They should
only be adjusted by an authorized service agent.
TEMPERATURE
SETPOINTS
SURROUNDING
AREA
VOLTAGE CHECK
ELECTRICAL POWER
CONNECTIONS
Disconnect electrical
power at the breaker or
disconnect switch and
tag-out in accordance with
procedures and codes.
i
