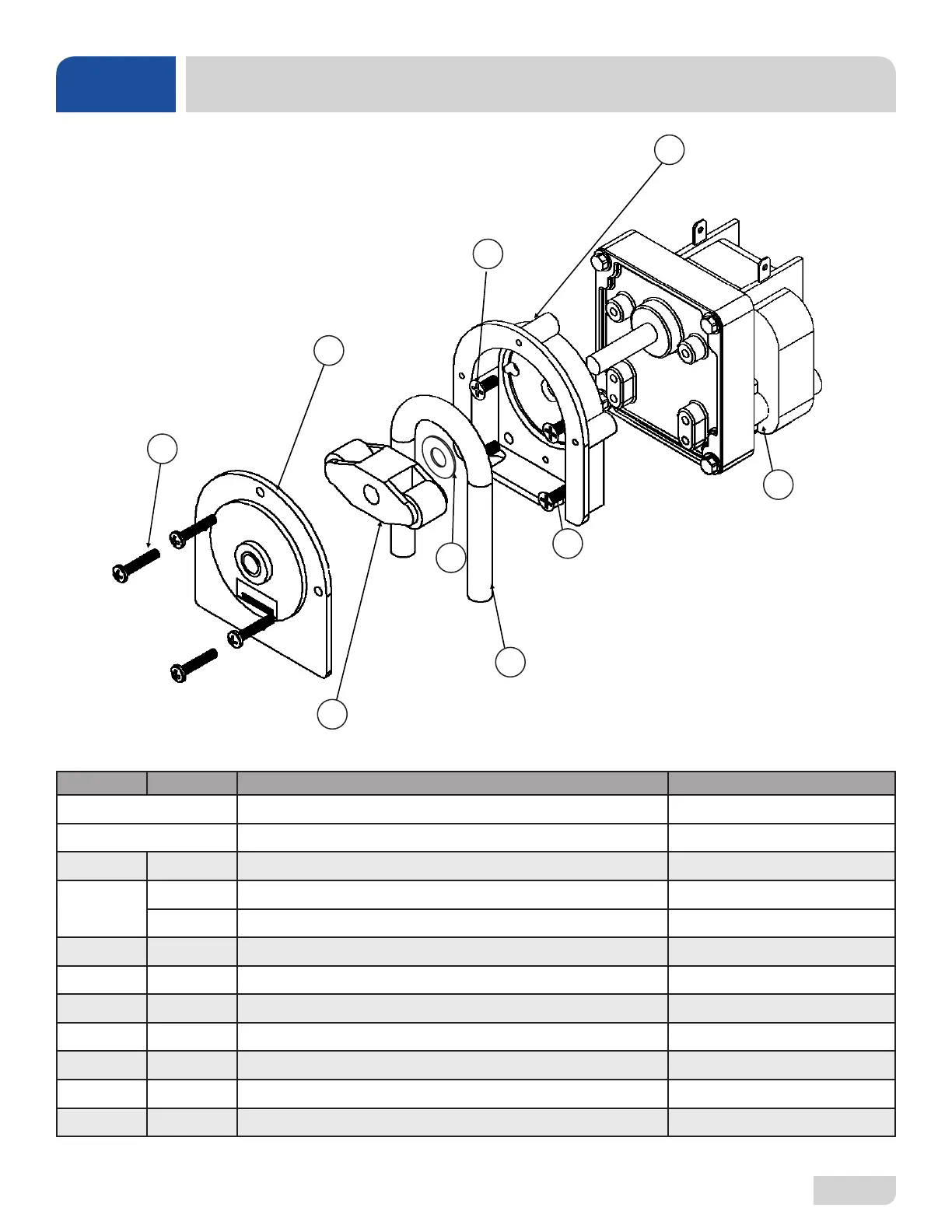

CHEMICAL FEEDER PUMP COMPONENTS
PARTS
ITEM QTY DESCRIPTION PART NUMBER
Complete Assembly with Motor, 36 RPM 05700-004-71-60
Complete Assembly with Motor, 14 RPM 05700-004-71-61
1 1 Housing, Clear 04320-004-59-41
2
1 Motor, 14 RPM 115 V Rinse-aid Feeder Pump 04320-111-35-13
1 Motor, 36 RPM 115 V, Detergent/Sanitizer Feeder Pump 04320-111-35-14
3 2 Screw, 8-32 x 1/2” Phillips Flat Head 05305-011-37-06
4 1 Tube, 3/16" x 8” Clear Tygoprene 05700-003-22-89
5 1 Roller, Purple Dot 04320-004-59-43
6 4 Screw, 6-32 x 3/4” Phillips Pan Head 05305-011-37-05
7 1 Cover, Clear 04320-004-59-45
8 4 Screw, 8-32 x 3/8” Flat Head 05305-011-37-07
9 1 Washer, Thrust 04320-004-75-85
