SOLENOID VALVE REPAIR KITS
PARTS
Complete 110 Volt Solenoid Valve Assembly, 1/2”
04810-100-12-18
Coil & Housing only, 1/2”
06401-003-07-43
Complete 220 Volt Solenoid Valve Assembly, 1/2”
04810-100-09-18
Coil & Housing only, 1/2”
06401-003-07-44
Water Hammer Arrestor Assembly
05700-002-64-67
Water Hammer
Arrestor, 1/2" NPT
06685-100-05-00
Tee, 1/2” x 1/2” x 1/2”
04730-211-27-00
Close Nipple, 1/2”
04730-207-15-00
Complete Vacuum Breaker Assembly, 1/2” NPT
04820-003-06-13
Cap Screw
Data Plate
Cap
Cap Retainer
O-Ring
Plunger
Body

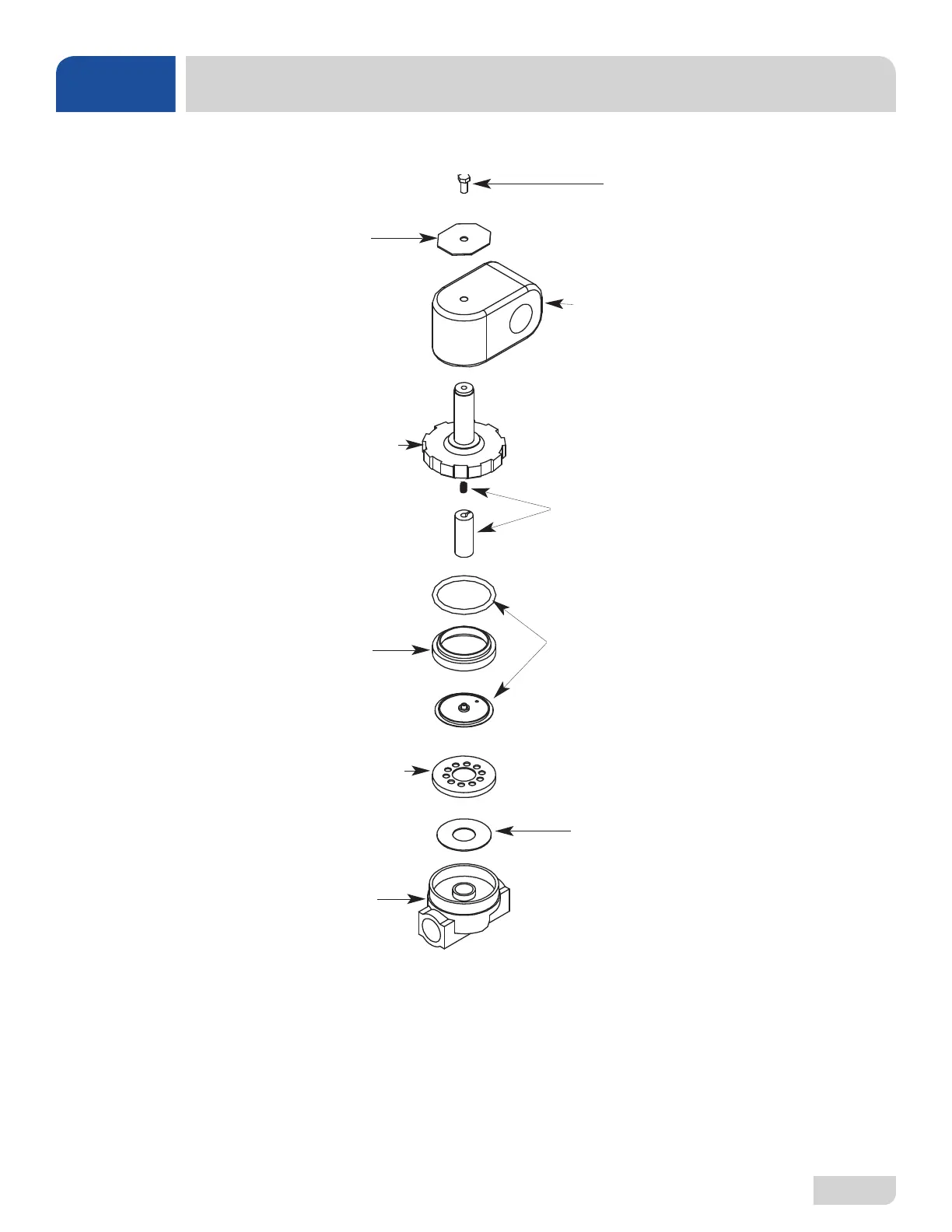

Components of Repair
Kit 06401-003-06-23
Screw
Data Plate
Coil and Housing
Valve Bonnet
Spring position is moved
for clarity. Goes below
the plunger.
Valve Body
Mesh Screen
Screen Retainer
Diaphragm
Retainer
Spring & Plunger Kit
06401-003-07-40
O-Ring & Diaphragm
06401-003-07-41
