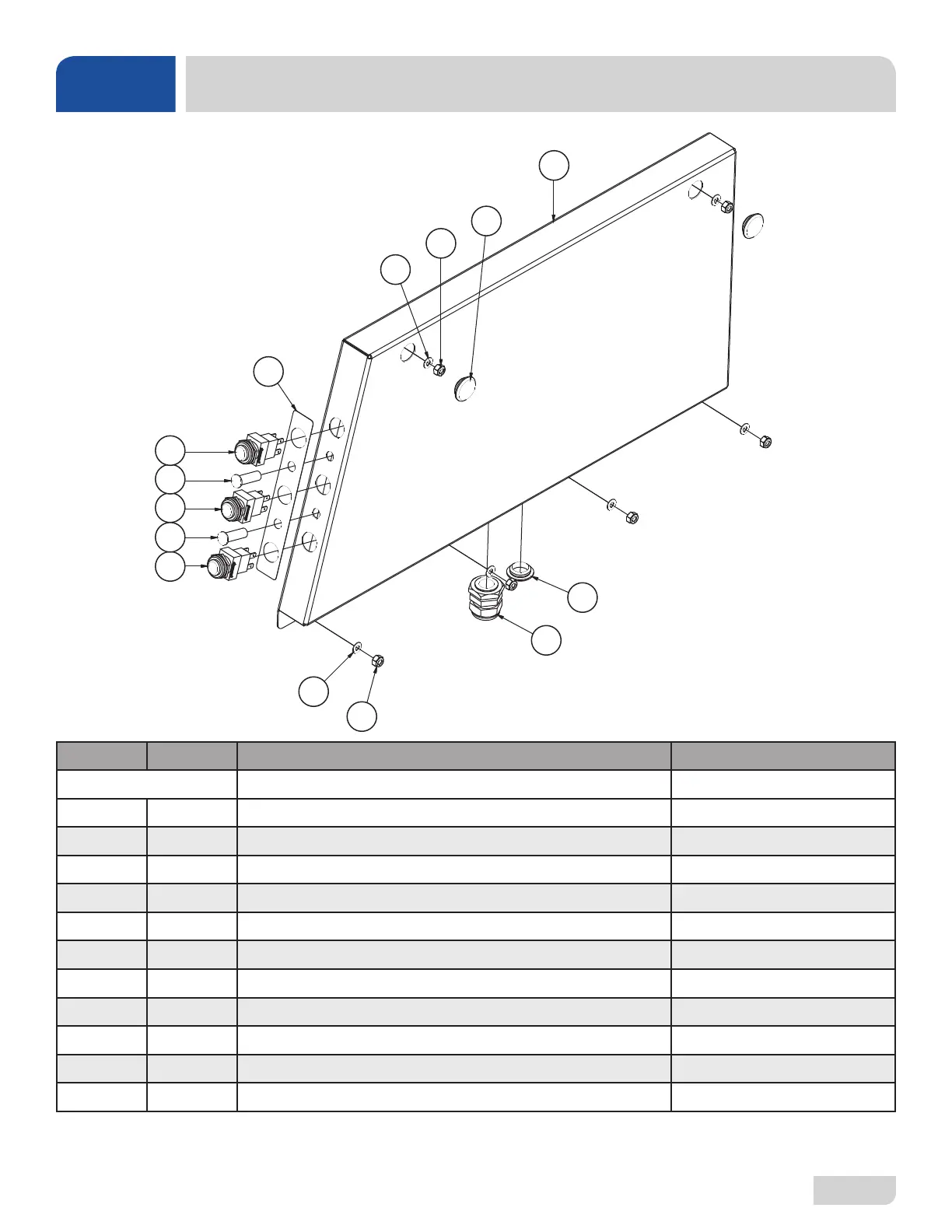

SWITCH PANEL
PARTS
ITEM QTY DESCRIPTION PART NUMBER
Complete Side Panel Assembly 05700-003-24-38
1 1 Side Panel Weldment 05700-003-24-36
2 2 Switch, Prime Assembly 05700-003-14-91
3 1 Switch, On/Off Assembly 05700-003-14-92
4 1 Light, Amber 05945-504-06-18
5 1 Light, Red 05945-504-07-18
6 1 Decal, Switch Panel 09905-003-08-63
7 1 Fitting, .25-.546 05975-011-65-51
8 3 Plug, 3/4” Hole 04730-011-60-21
9 6 Locknut, 10-24 with Nylon Insert 05310-373-01-00
10 6 Washer 05311-176-02-00
11 1 Terminal Board (Not Shown) 05940-001-97-91
