37

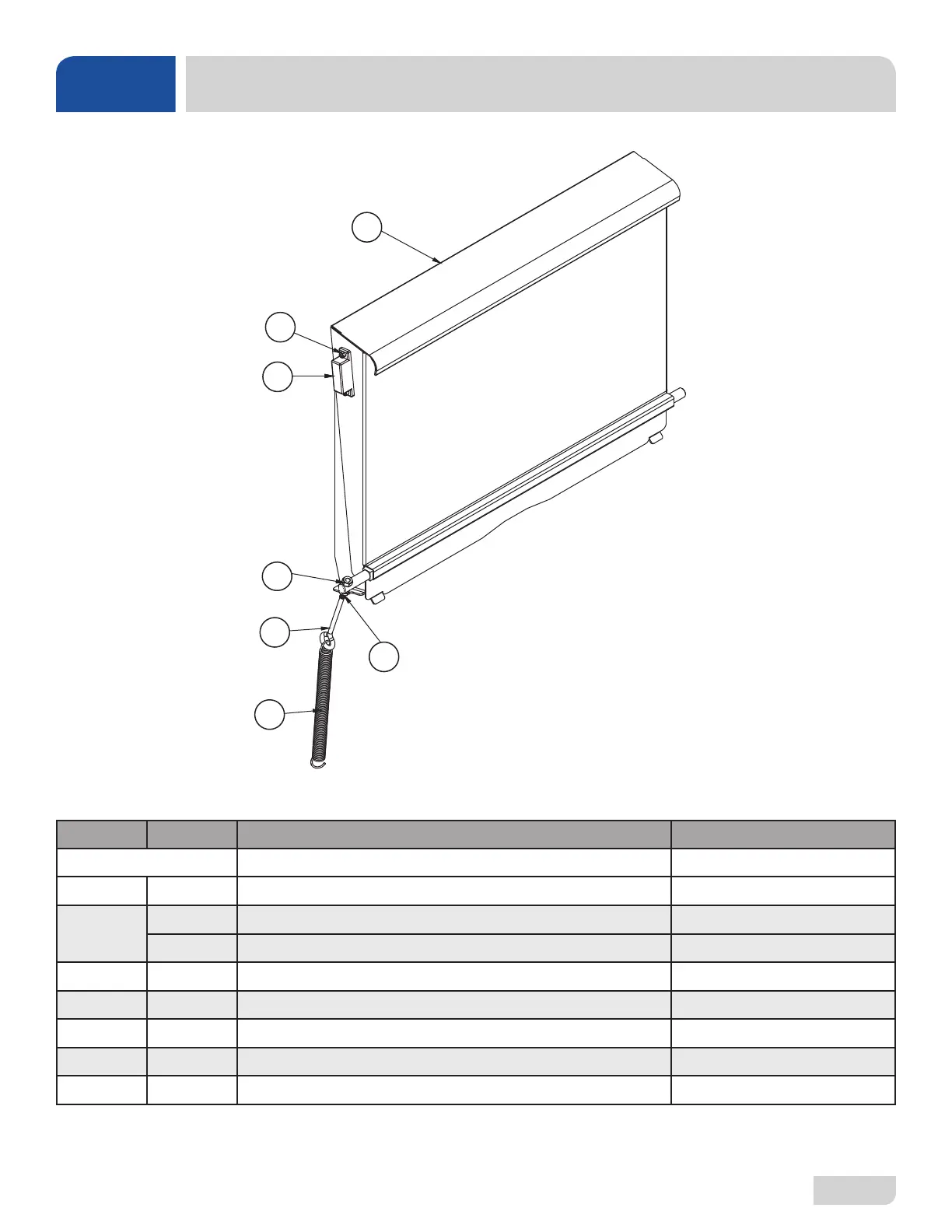

ITEM QTY DESCRIPTION PART NUMBER
Complete Door Assembly 05700-003-46-50
1 1 Door Weldment 05700-003-46-49
2
1 Magnet, Reed Switch 05930-002-88-42
1 Magnet Cover (not shown) 05700-004-07-38
3 1 Locknut, 6-32 SS Hex with Nylon Insert 05310-373-03-00
4 1 Locknut, 1/4-20 SS Hex with Nylon Insert 05310-374-01-00
5 2 Nut, Hex 1/4-20 SS 05310-274-01-00
6 1 Bolt, 1/4-20 Eye, SS 05306-002-55-59
7 1 Spring, Door 05340-011-44-58
DOOR
PARTS
1
3
4
7
5
6
2
