Jackson DELTA Series User Manual

24

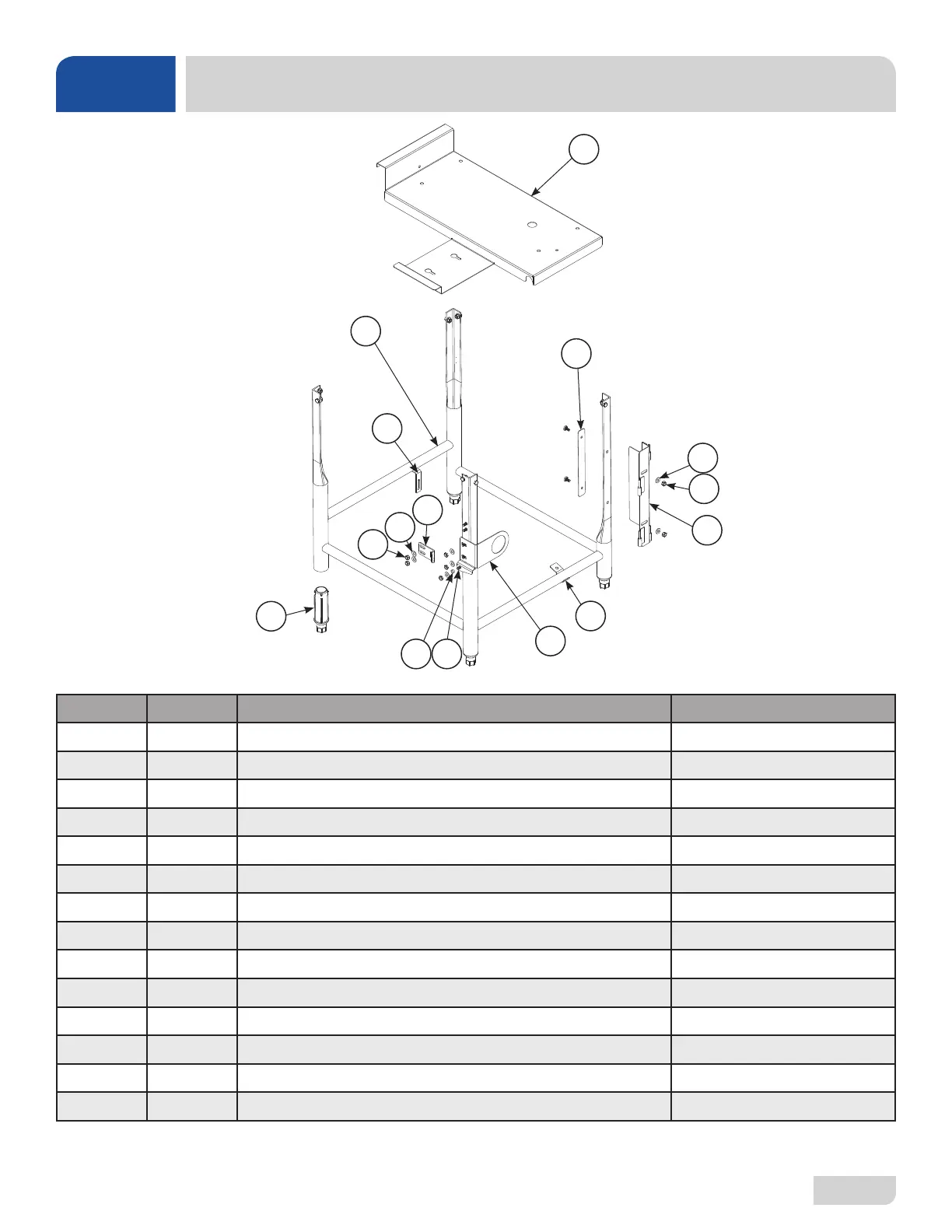

FRAME
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Frame Weldment 05700-003-09-40
2 4 Adjustable Foot 05340-002-14-55
3 1 Plate, Hinge Weldment 05700-003-10-11
4 1 Washer, Hinge Weldment 05700-002-54-62
5 1 Spacer, PB Bolt 05700-000-29-40
6 1 Clamp, Pipe 05700-000-35-05
7 8 Washer, 1/4-20 SS 05311-174-01-00
8 1 Keeper, Door Panel Latch 05700-003-09-31
9 4 Locknut, 1/4-20 SS Hex with Nylon Insert 05310-374-01-00
10 5 Nut, Hex 1/4-20 05310-274-01-00
11 1 Heater Mounting Plate Weldment 05700-002-51-93
12 1 Bracket, Temperature Gauge 05700-003-14-53
13 1 Bolt, 1/4-20 x 1/2” 05305-274-02-00
14 1 Bracket, Manifold Position Tube 05700-011-34-63
1
2
3
4
8
5
9
6
7
10
11
7
13
12
14
