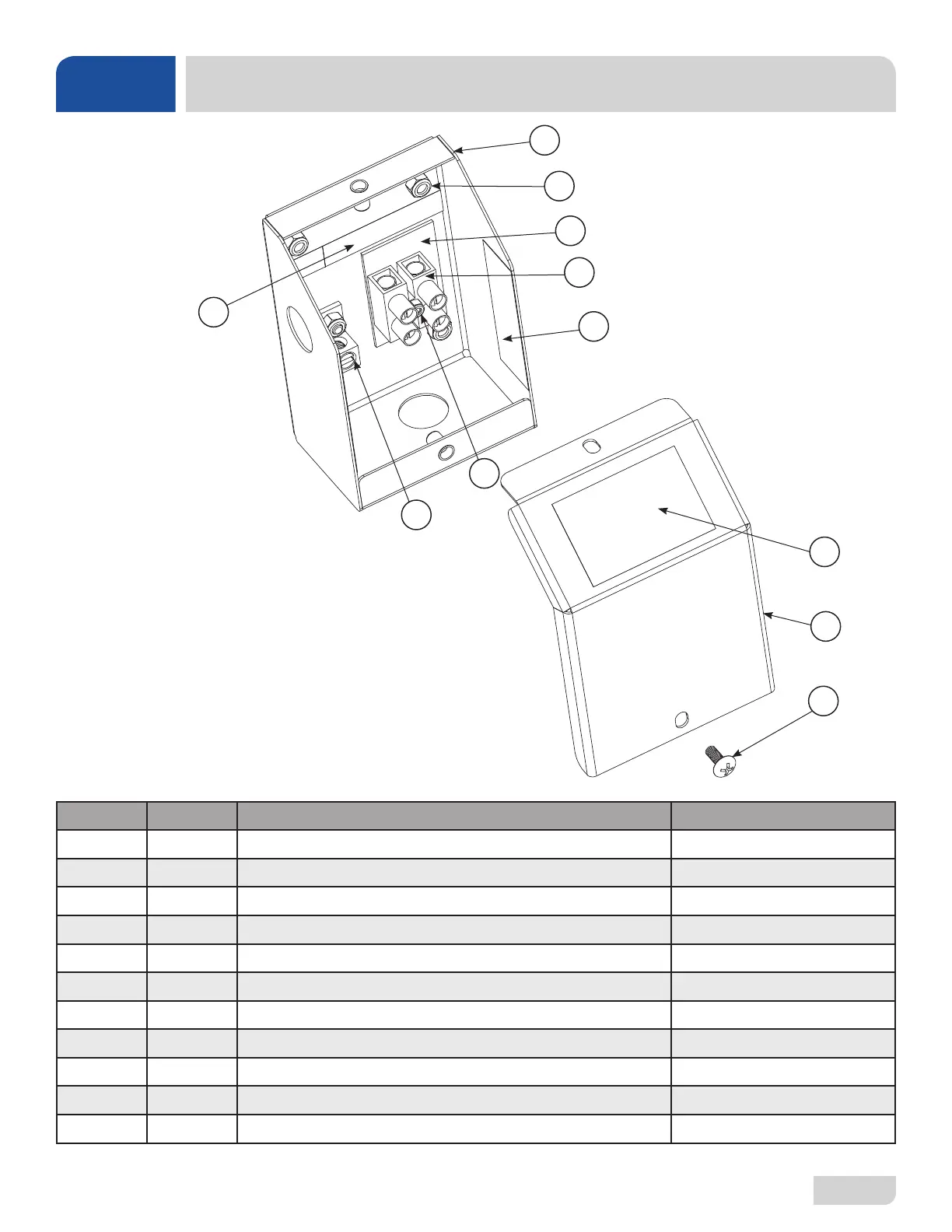

ELECTRICAL CONNECTION BOX
PARTS
1
2
3
4
8
5
9
6
7
ITEM QTY DESCRIPTION PART NUMBER
1 1 Box, Power Junction Weldment 05700-003-30-58
2 1 Terminal Block Spacer 05700-011-40-05
3 1 Terminal Block 05940-500-09-61
4 1 Locknut, 6-32 with Nylon Insert 05310-373-03-00
5 5 Locknut, 10-24 with Nylon Insert 05310-373-01-00
6 1 Lug, Ground 05940-200-76-00
7 1 Decal, Power Connection 09905-011-47-64
8 1 Decal, Warning to Disconnect Power 09905-004-08-16
9 1 Screw, 10-32 x 1/2’’ Long, Phillips Trusshead 05305-011-39-36
10 2 Decal, Copper Conductors Only 09905-011-47-35
11 1 Cover, Solenoid Box 05700-003-46-72
