Jackson DELTA Series User Manual

22

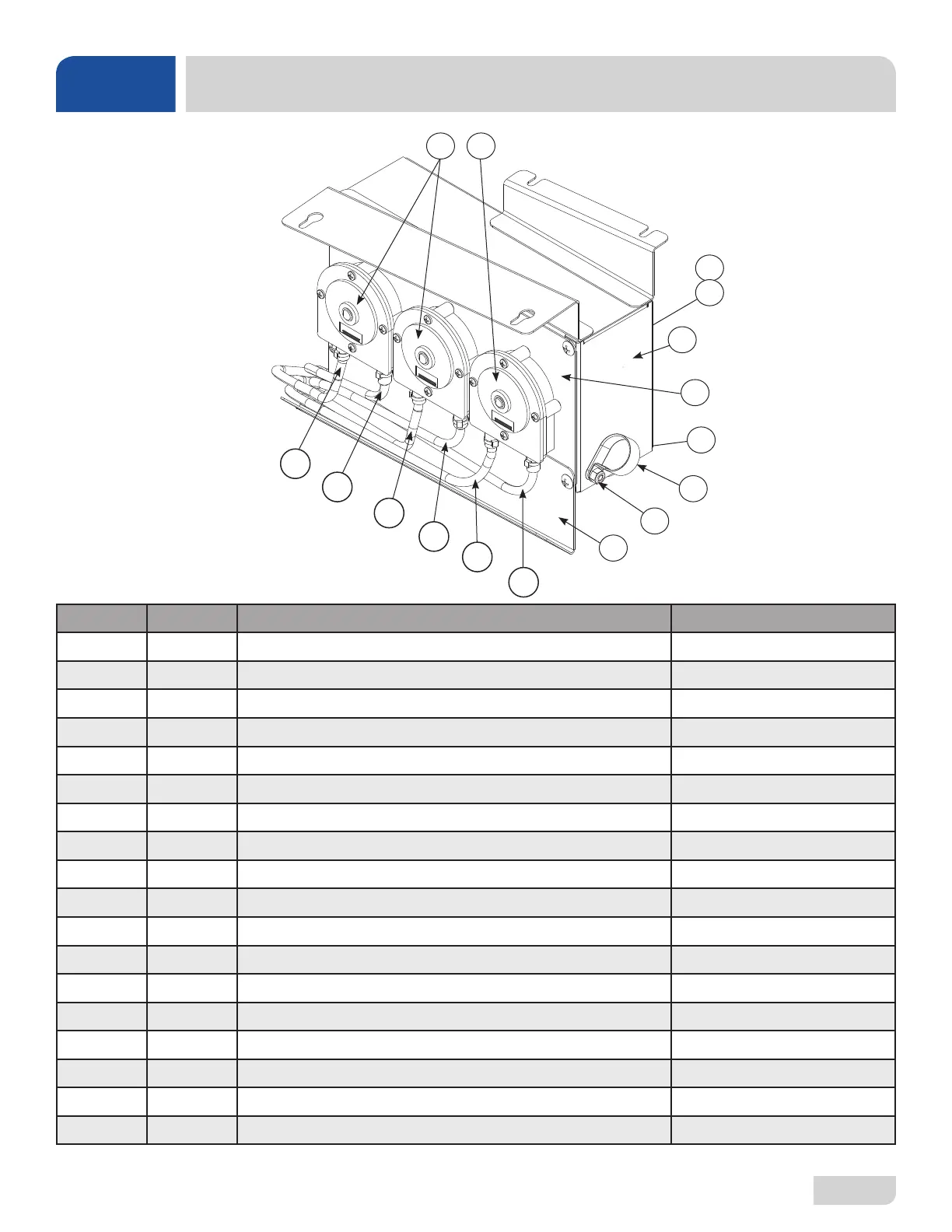

PERI-PUMP BOX
PARTS
16
12
18
14
17
13
ITEM QTY DESCRIPTION PART NUMBER
1 2 Peri-pump Assembly, 36 RPM See previous page.
2 1 Peri-pump Assembly, 14 RPM See previous page.
3 1 Drip Channel 05700-003-32-89
4 1 Peri-pump Box 05700-003-32-00
5 1 Peri-pump Box Cover 05700-003-33-80
6 1 Fitting, Conduit, Heyco 1/2’’ 05975-011-65-51
7 1 Clamp, 5/8” Nylon (Located inside of box) 04730-011-39-01
8 1 Clamp, 1” Nylon 04730-002-41-88
9 5 Screw, 10-32 x 1/2’’ 05305-011-39-36
10 3 Locknut, 10-24 SS Hex w/Nylon Insert 05310-373-01-00
11 3 Tube Stiffener (Not Shown) 05700-002-66-49
12 1 Tubing, 1/4’’ OD x 60” Long, Blue 05700-002-52-34
13 1 Tubing, 1/4’’ OD x 60” Long, White 05700-002-52-33
14 1 Tubing, 1/4’’ OD x 60” Long, Red 05700-011-63-18
15 1 Terminal Board (Not Shown) 05940-001-97-91
16 1 Tubing, 1/4” OD x 120” Long, Blue 05700-011-37-17
17 1 Tubing, 1/4” OD x 120” Long, White 05700-011-37-13
18 1 Tubing, 1/4” OD x 120” Long, Red 05700-011-37-15
1
7
2
6
5
3
4
8
10
15
