Jackson DELTA Series User Manual

34

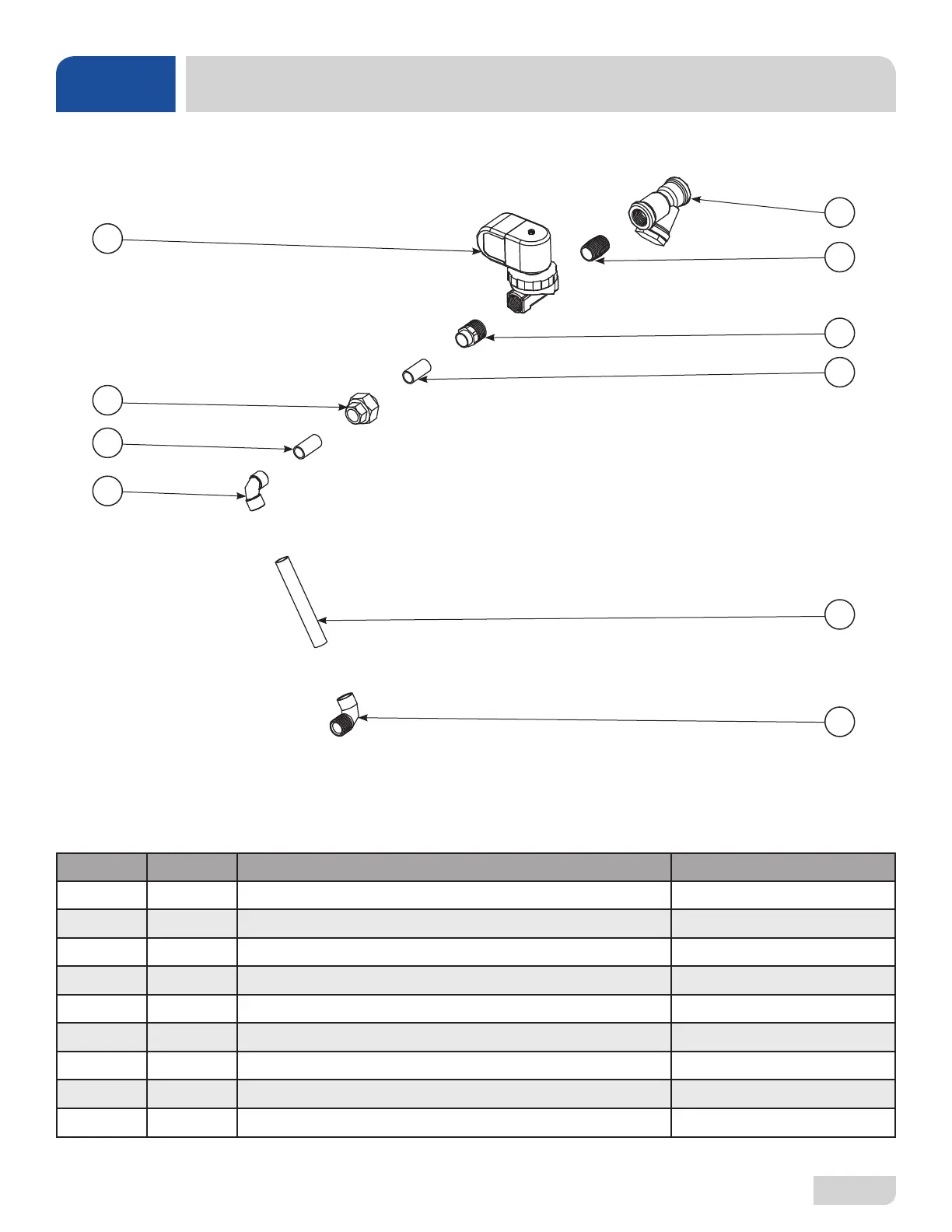

INLET PLUMBING
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Y-Strainer 04730-217-01-10
2 1 Nipple, Close, 1/2’’ NPT, Brass 04730-207-15-00
3 1 Valve, Solenoid, 1/2’’ NPT, 115 V 04810-100-12-18
4 1 Adaptor, 1/2’’ Fitting (CU to Male) 04730-401-03-01
5 2 Tube, Copper, 1/2’’ x 1 1/4” 05700-001-08-28
6 1 Union, 1/2’’ 04730-412-05-01
7 1 Elbow, 1/2” 04730-406-01-01
8 1 Tube, Copper, 1/2’’ x 4 1/4” 05700-001-01-60
9 1 Elbow, 90-Degree (CU to MSPS) 04730-406-32-01
1
2
3
4
5
6
5
7
8
9
1
3
4
5
6
7
8
9
2
5
