Jackson TEMPSTAR - Dimensions Tempstar;Tempstar Lt;Tempstar NB (Top Mounted Control Box)

Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION

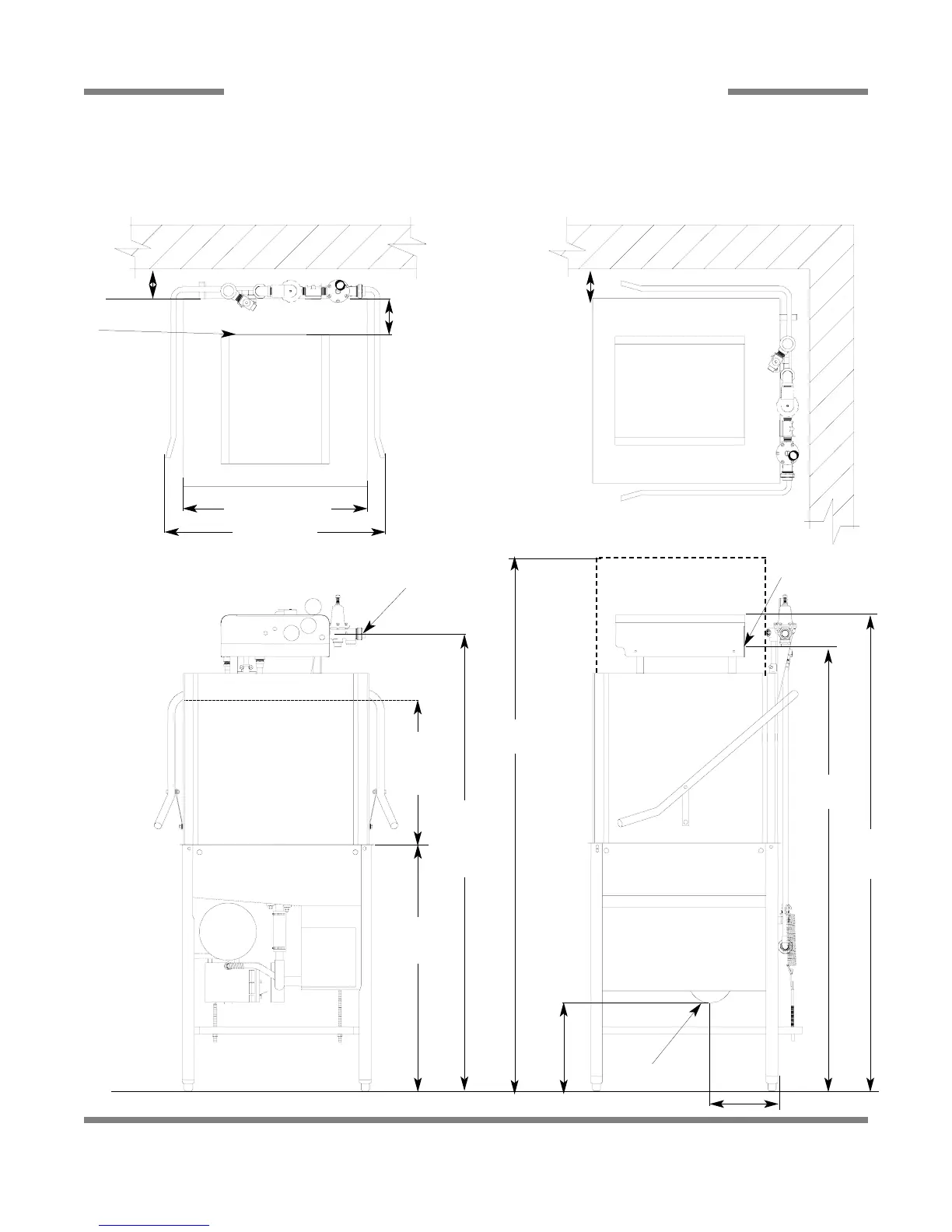

DIMENSIONS TEMPSTAR/NB/LT/S (TOP MOUNTED CONTROL BOX)
5
25 1/4” (64.1 cm)
32” (81.3 cm)
17 1/2”
(44.5 cm)
MACHINE
OPENING
34” (86.4 cm)
TABLE
HEIGHT
76” (193 cm)
W/ DOOR OPEN
14”
(35.6 cm)
DRAIN
TO
FLOOR
64 3/8”
(163.5 cm)
60 5/8”
(154 cm)
61 3/4”
(156.8 cm)
WATER
INLET TO
FLOOR
A- WATER INLET (3/4” NPT)
B- ELECTRICAL CONNECTION POINT
C- DRAIN (1 1/2” NPT)
D- STANDARD CLEARANCE BETWEEN
MACHINE AND WALL (WITH DISHTABLE) IS 4” (10.2 cm).
D
A
B
B
D
C
15 1/2” (39.4 cm)
LEGEND
4 7/8” (12.4 cm)
