Jackson TEMPSTAR - Hood Assembly (Bolted Single Support Design)

Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

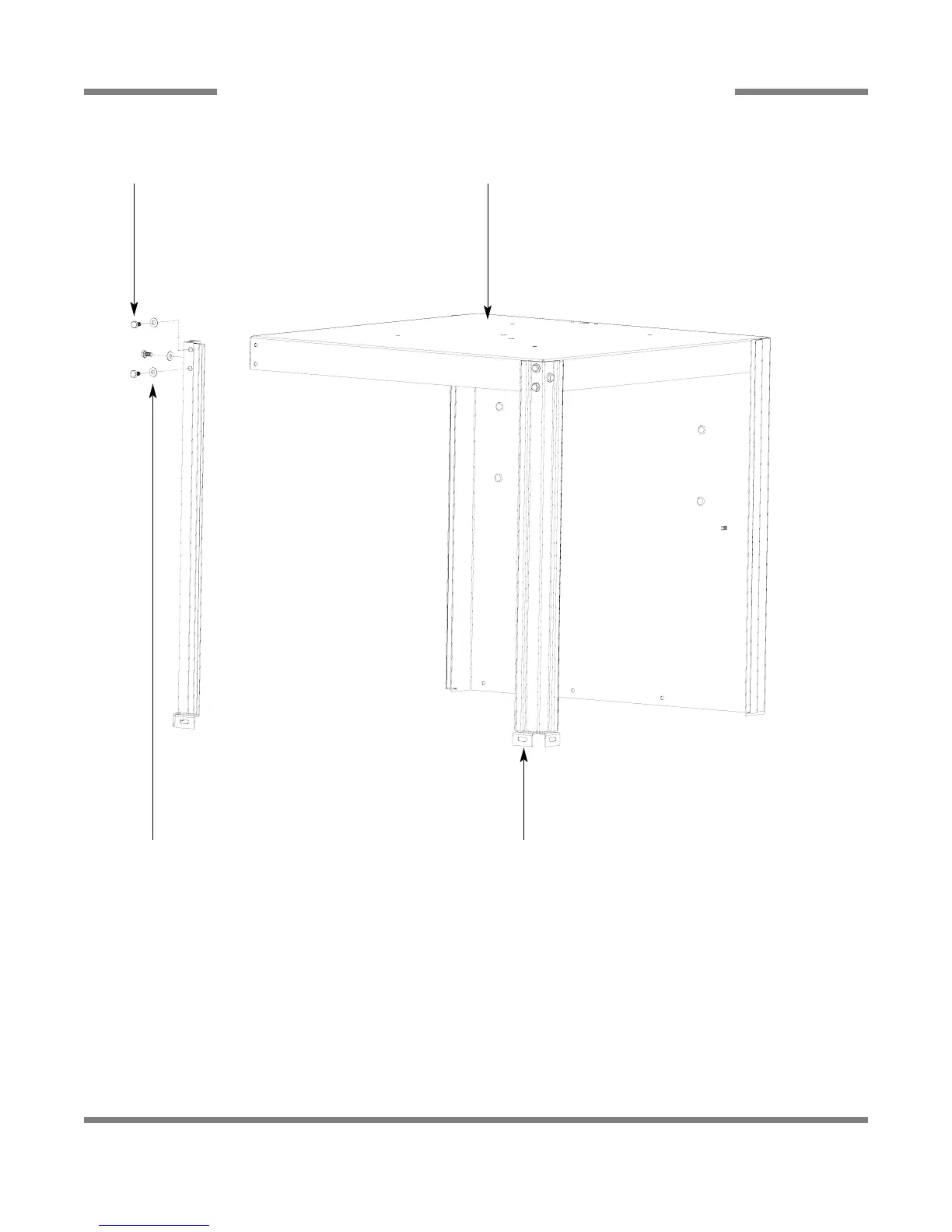

HOOD ASSEMBLY (BOLTED SINGLE SUPPORT DESIGN)
29
ITEM QTY DESCRIPTION Mfg. No.
1 1 Hood Weldment (Tempstar/Tempstar LT/Tempstar NB) 05700-002-29-79
1 1 Hood Weldment (Tempstar SDS) 05700-002-36-91
2 2 Hood Support 05700-002-78-99
3 6 Bolt, 1/4”-20 x 1/2” Long 05305-274-21-00
4 6 Washer, Flat, SS, 1/4”-20 ID 05311-174-01-00
5 6 Locknut, 1/4”-20 with Nylon Insert (Not Shown) 05310-374-01-00
6 4 Block Spacer 05700-002-81-02
1
2
3
4
