Jackson TEMPSTAR User Manual

Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

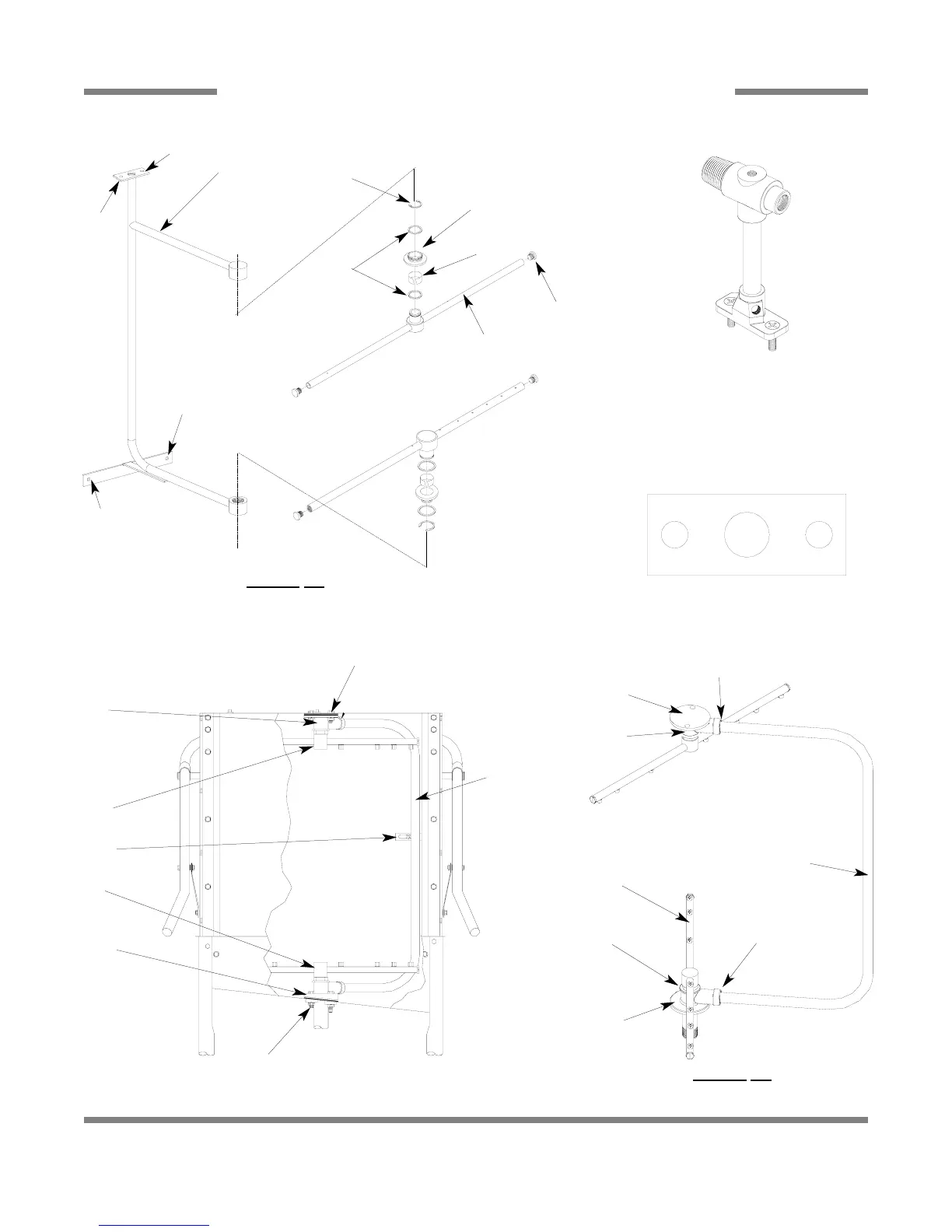

WASH & RINSE ARM/MANIFOLD ASSEMBLIES
13
18
20
11
12
15
14
2, 3, 4
7
16, 8
6, 10
5
9
7
1
DETAIL “B”
WASH ARMS & MANIFOLD
DET
AIL “A”
FINAL RINSE ARMS & MANIFOLD
10
10
10
10
5
17
17
16
2, 3, 19
9, 17
9, 17
1
Rinse Injector Weldment
1 per machine
05700-021-47-65
Rinse Injector Gasket
2 per machine
05330-111-42-81
Plug, 1/8” NPT, Brass
3 per Rinse Injector
04730-209-07-37
