Jackson TEMPSTAR User Manual

Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

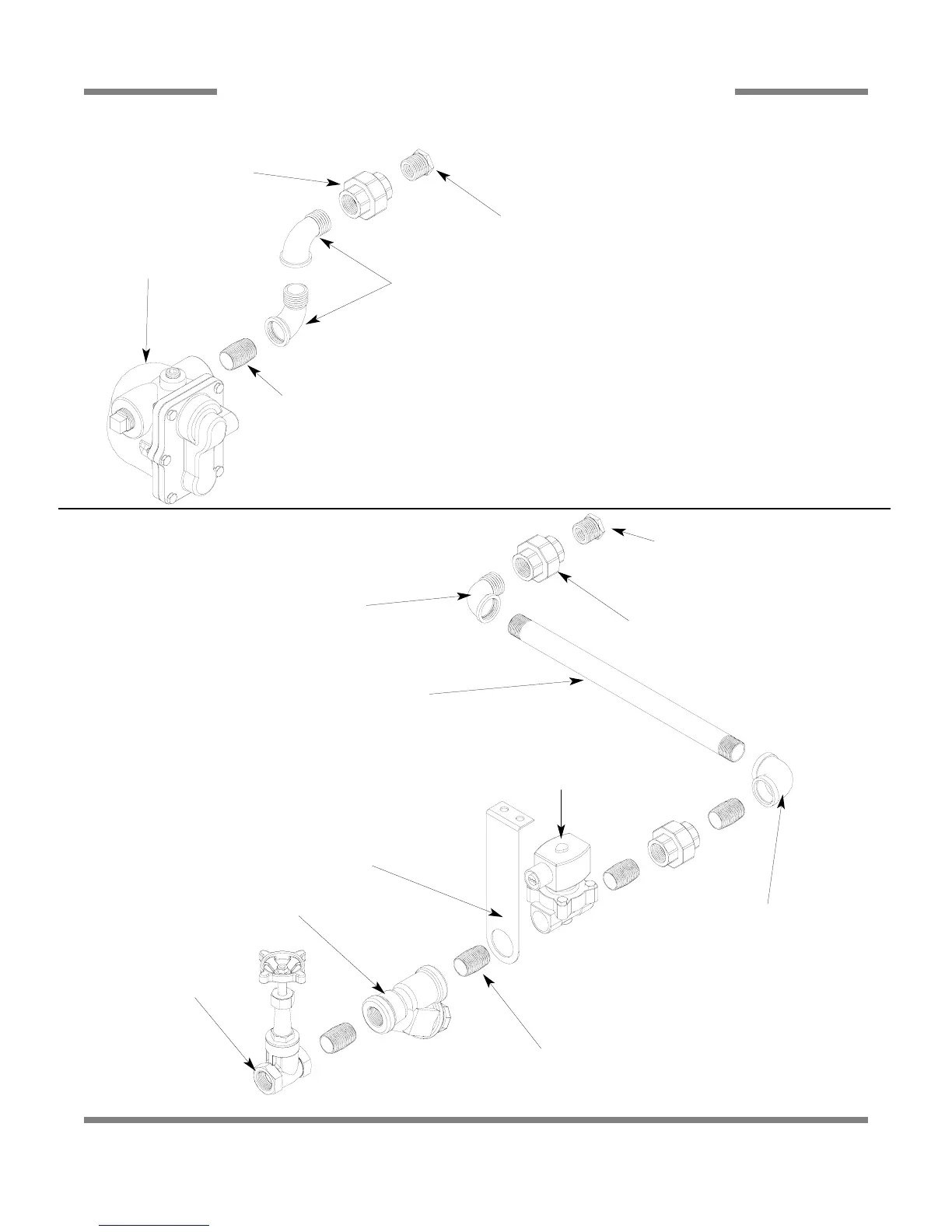

INCOMING STEAM PLUMBING ASSEMBLIES
39
Union, 3/4’’ NPT, Black Iron
04730-912-01-01
Elbow, 3/4” 90° Street
04730-011-87-37
Elbow, 3/4” 90° Street
04730-011-87-37
Steam Trap, 3/4” NPT F&T
06680-500-02-77
Nipple, Close, 3/4’’ NPT, Black Iron
04730-907-01-00
Bushing, Reducing, 3/4’’ to 1/2’’
04730-911-02-34
Bushing, Reducing, 3/4’’ to 1/2’’
04730-911-02-34
Elbow, 90° 3/4” NPT Black Iron
04730-011-87-37
Union, 3/4’’ NPT, Black Iron
2 per assembly
04730-912-01-01
3/4” NPT Black Iron Pipe
05700-002-20-83
Gate Valve, 3/4” NPT
04820-100-19-00
Bracket, Steam Plumbing Support
05700-002-20-83
Y-Strainer, 3/4” NPT Black Iron
04730-217-01-32
Solenoid Valve, Steam Plumbing, 220V
04820-002-01-32
Nipple, Close, 3/4’’ NPT, Black Iron
4 per Assembly
04730-907-01-00
To order this complete assembly, use part number:
05700-002-01-55
To order this complete assembly, use part number:
05700-002-01-60
