Jackson TEMPSTAR User Manual

Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

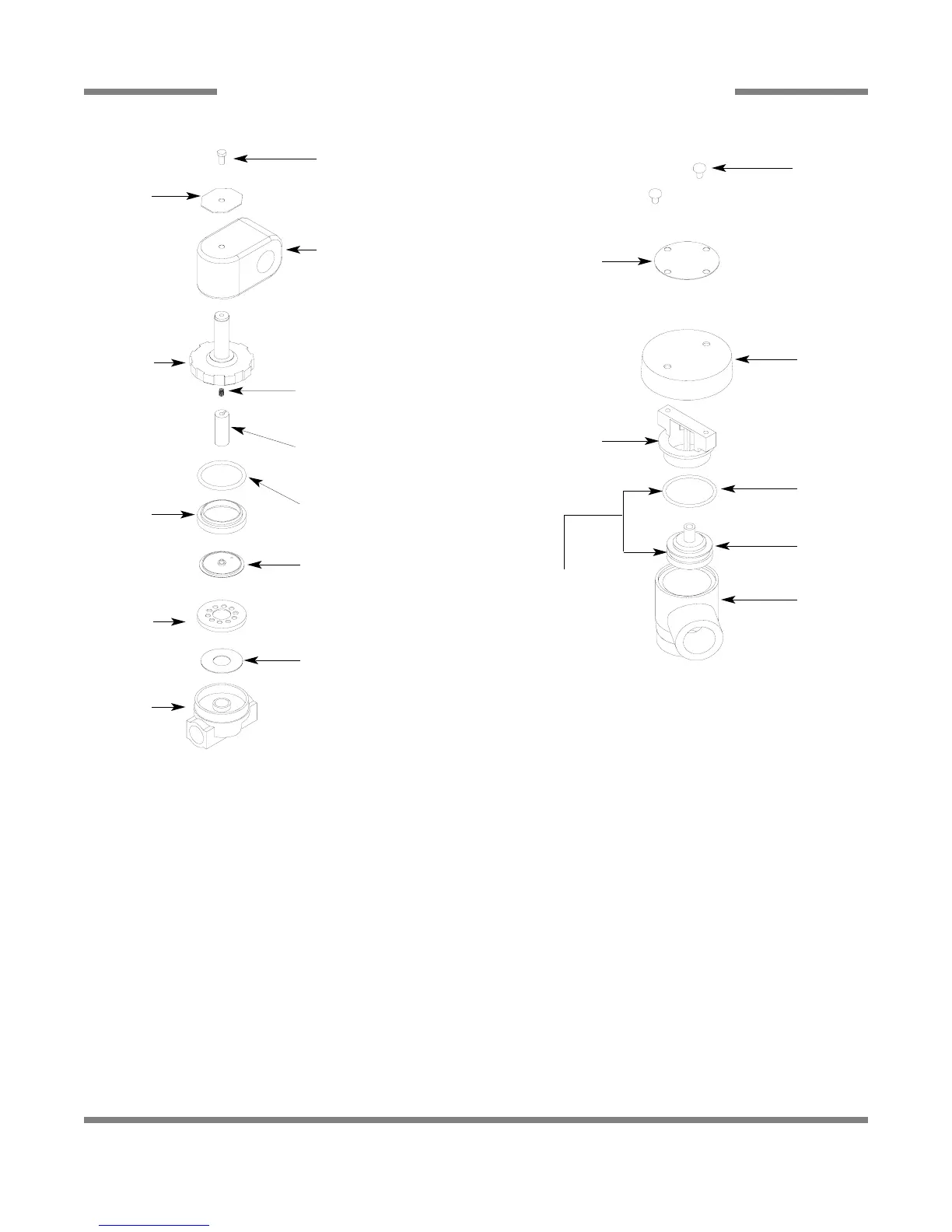

3/4” SOLENOID VALVE & 3/4” NPT VACUUM BREAKER REPAIR PARTS KITS
47
Screw
Data Plate
Coil & Housing
Valve Bonnet
Spring
06401-003-07-40
Plunger
06401-003-07-40
O-Ring
06401-003-07-42
Diaphragm
Retainer
Diaphragm
06401-003-07-42
Screen
Retainer
Mesh Screen
Valve Body
Complete 110 Volt Solenoid Valve Assembly
04810-100-53-00
Coil & Housing only
06401-003-07-43
Complete 240 Volt Solenoid Valve Assembly
04810-100-03-18
Coil & Housing only
06401-003-07-44
Complete Vacuum Breaker Assembly
04820-002-53-77
Components of Repair Kit
06401-003-06-24
Cap Screw
Data Plate
Cap
O-Ring
Plunger
Body
Cap Retainer

Jackson TEMPSTAR Specifications

General

Model	TEMPSTAR
Category	Dishwasher
Weight	Varies by model
Depth	25-5/8"
Height	33-1/2"
