Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
13

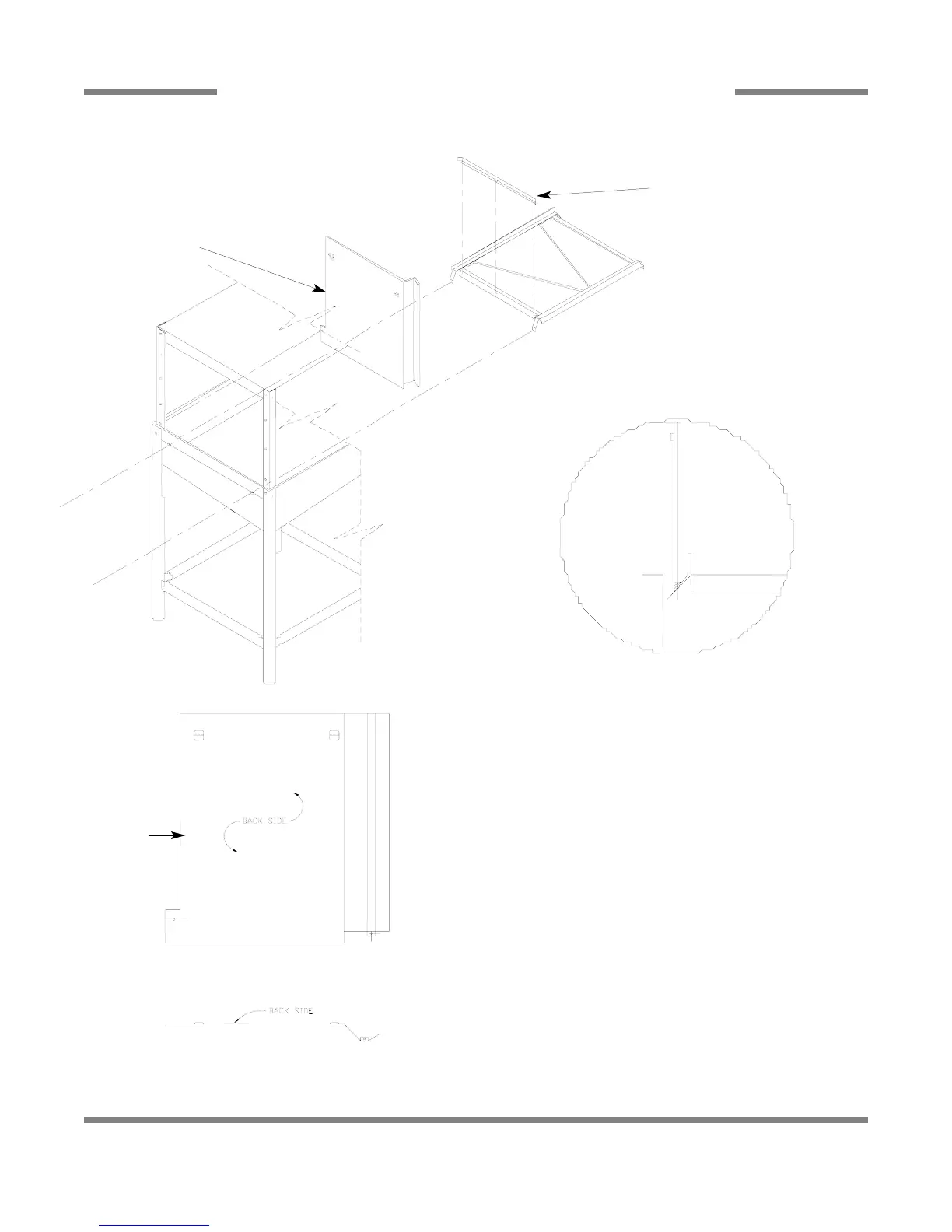

FALSE PANEL INSTALLATION
1. Remove the rack assembly from the unit.
2. False panel will mount inside the dishmachine.
3. Position panel in unit on side to be closed.
4. Hold panel against side of dishmachine and push up.
5. Panel will clip in at the top, inside unit.
6. Holes in false panel will line up with rack assembly holes.
7. Re-install screws for rack assembly which will secure false
panel to unit.
8. Re-assemble the rack track in an “L” shape for a corner oper-
ation.
Bottom of side panel.
Insert this
side first.
False panel positioned in unit.
Rack rail removed & reposi-
tioned for a corner operation.
False Panel
