Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION
TEMPSTAR SDS DISPENSER ASSEMBLY (CONTINUED)
51
ITEM QTY DESCRIPTION Mfg. No.
1 3 Screw, 6-32 x 3/4" Long 05305-171-07-00
2 1 Lockwasher, #6, External Tooth 05311-271-02-00
3 1 Rinse Cylinder Bracket 05700-011-59-72
4 1 Rinse Additive Screen 05930-011-48-66
5 1 Rinse Cylinder Cover 09515-011-49-01
6 1 Rinse Additive Cylinder 09515-031-49-00
7 1 Decal, Rinse Additive 09905-011-59-80
8 1 Rinse Aid Nozzle 04730-011-50-03
9 1 Detergent Screen 05335-011-48-65
10 1 Detergent Spray Nozzle 04730-011-50-04
11 1 Detergent Flush Pipe 05700-011-51-52
12 1 Decal, Detergent Additive 09905-011-59-79
13 3 Light, Red 05945-011-48-96
14 1 Motor, Feeder Pump 06105-111-51-02
15 1 Dispenser Molding 09515-031-48-62
16 1 Sonalert 05945-011-48-97
ITEM QTY DESCRIPTION Mfg. No.
17 2 Locknut, 4-40 05310-279-06-00
18 1 Lockwasher, 4-40 05311-011-59-71
19 1 Screw, 4-40 x 3/4" Long 05305-011-59-64
20 1 Spring, .023 Wire 05340-111-58-02
21 1 Magnet, 3/16" x 1" Long Bar 05930-011-48-81
22 1 Holder, Cam Magnet 05340-011-48-80
23 1 Cam Holder 05340-011-59-62
24 1 Switch, 5A 05930-011-48-83
25 2 Screw, 4-40 x 3/8" Long 05305-011-59-70
17
18
19
20
21
23
22
24
25

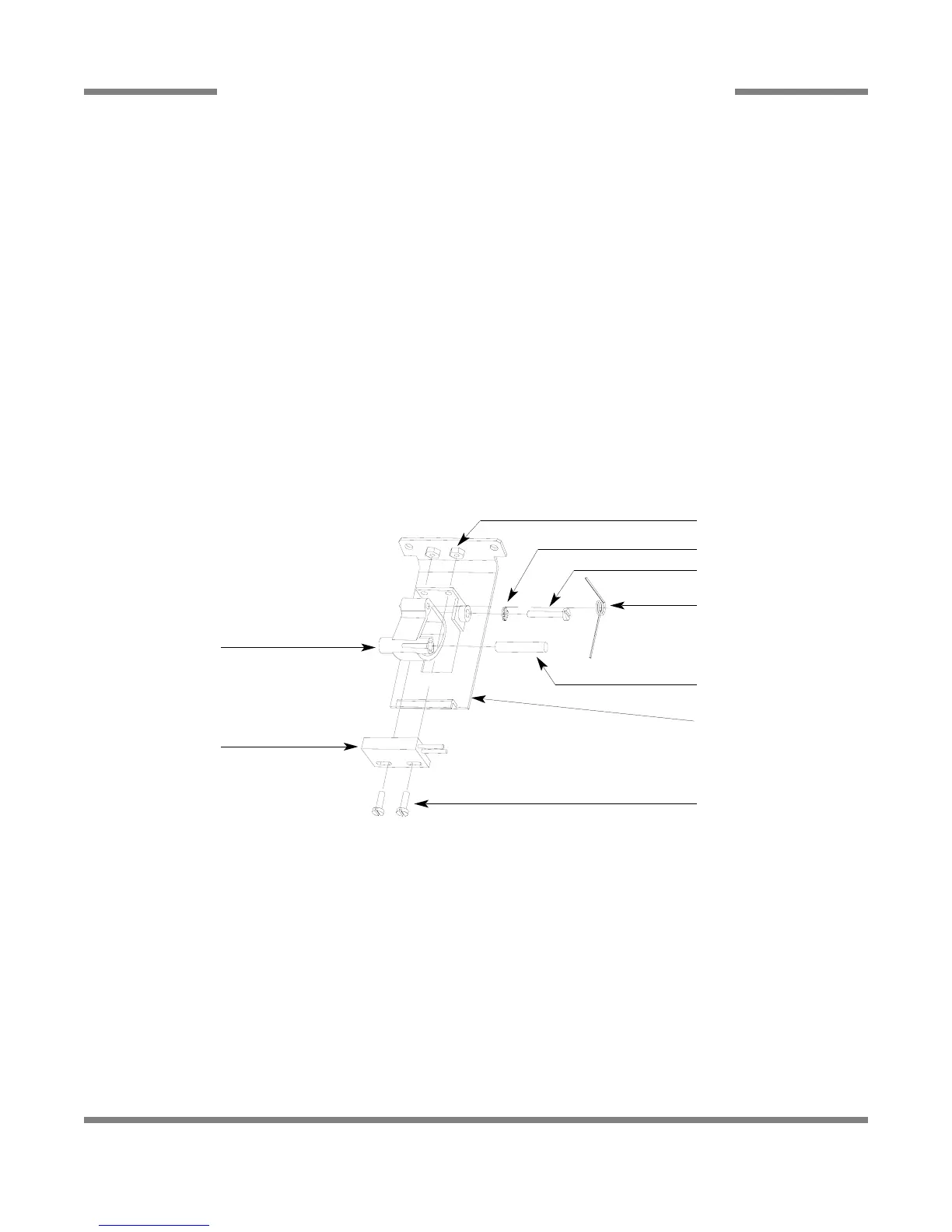

CAM HOLDER ASSEMBLY
