Jackson TEMPSTAR User Manual

Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

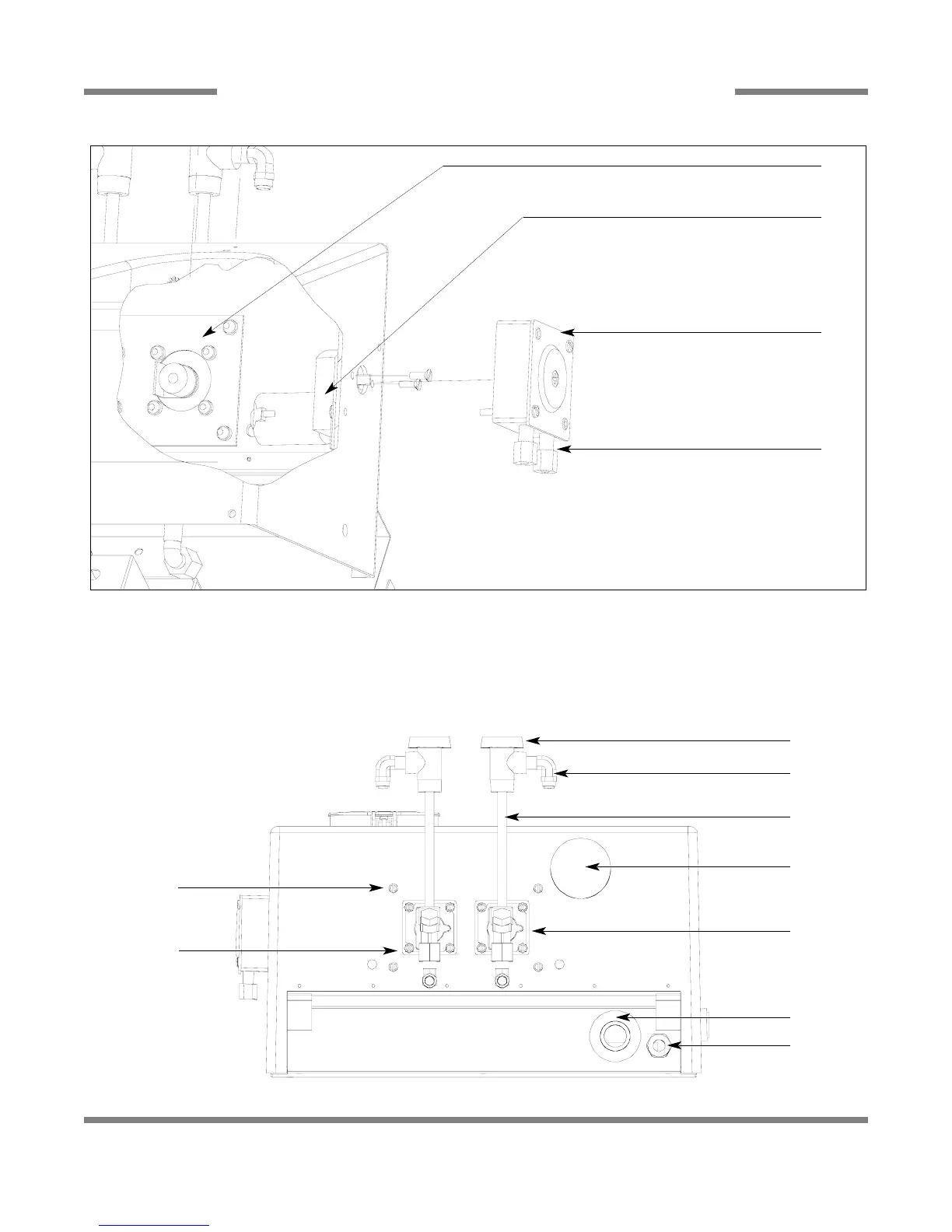

TEMPSTAR SDS DISPENSER ASSEMBLY (CONTINUED)
52
26
27
28
29
FEEDER PUMP
30
31
32
33
34
35
36
37 & 38
37 & 38
DISPENSER PLUMBING ASSEMBLY
ITEM QTY DESCRIPTION Mfg. No.
26 1 Plate, Solenoid Valve Mounting 05700-031-58-16
27 1 Plate, Pump Mounting 05700-011-57-88
28 1 Peristaltic Pump 04320-111-51-03
29 2 Ferrule Nut, Chemical Tube Connector 04730-609-16-00

Jackson TEMPSTAR Specifications

General

Model	TEMPSTAR
Category	Dishwasher
Weight	Varies by model
Depth	25-5/8"
Height	33-1/2"
