Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

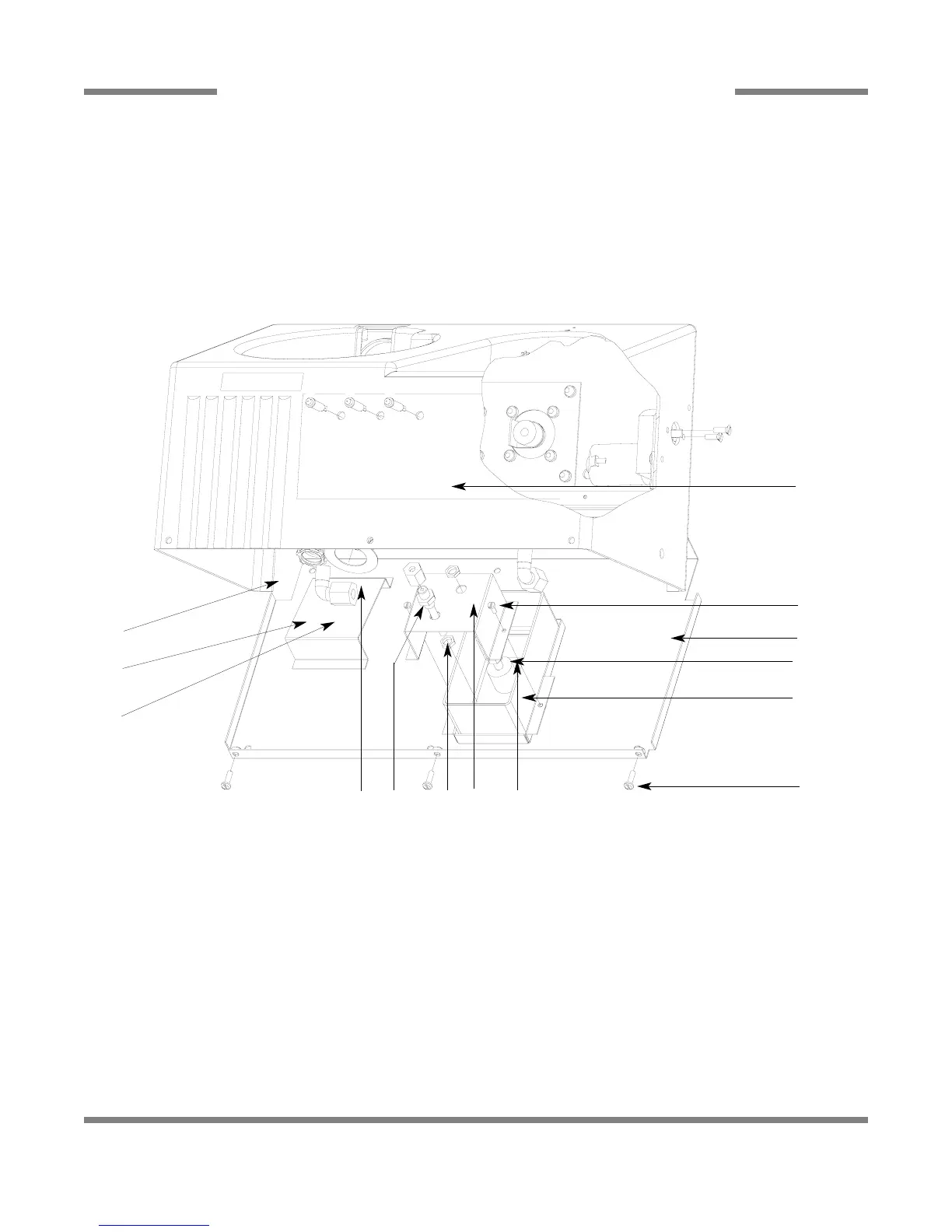

TEMPSTAR SDS DISPENSER ASSEMBLY (CONTINUED)
53
ITEM QTY DESCRIPTION Mfg. No.
39 1 Decal, Dispenser Front 09905-021-50-18
40 1 Dispenser Mounting Plate 05700-031-50-12
41 2 Screw, 6-32 x 3/8" Long 05305-171-07-00
42 1 Switch, Float 05930-011-48-98
43 1 Reservoir 09515-031-48-63
44 3 Screw, 10-32 x 1/2" Long 05305-011-39-36
45 3 Lockwasher, #10 External Tooth 05311-273-03-00
46 1 Reservoir Clip 05700-021-49-26
47 1 Jam Nut, 1/8"-27 05310-011-58-00
48 1 Rinse Additive Pickup Tube 05700-011-50-14
49 1 Ferrule Nut, Chemical Tube Connector 04730-609-16-00
50 1 Panel, Dispenser Sliding Cover 05700-011-51-19
51 1 Fitting, Liquid Tight 05975-011-49-03
52 1 Elbow, 1/4" NPT x 3/8" Compression 04730-111-59-34
53 1 Insert, 3/8" Tubing P/P 04730-111-59-35
39
40
41
42
43
44 & 45
47
46
49 48
50
51
53
52
LOWER DISPENSER ASSEMBLY
ITEM QTY DESCRIPTION Mfg. No.
30 2 1/4" NPT Vacuum Breaker 04810-011-51-62
31 2 Elbow, 3/8" Comp. X 1/4" NPT, 90°, Brass 04730-111-58-18
32 2 Nipple, 1/4" x 6" Brass 04730-011-79-29
33 1 Plug, Hunky 05975-011-59-49
34 2 Valve, Solenoid 04810-011-48-99
35 1 Grommet, 1.25" O.D. x 1.00" I.D. 05975-111-58-01
36 1 Fitting, Liquid Tight 05975-011-49-03
37 12 Screw, 10-32 x 1/2" Long 05305-011-39-36
38 12 Lockwasher, #10 External Tooth 05311-273-03-00
To Next Page
