Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

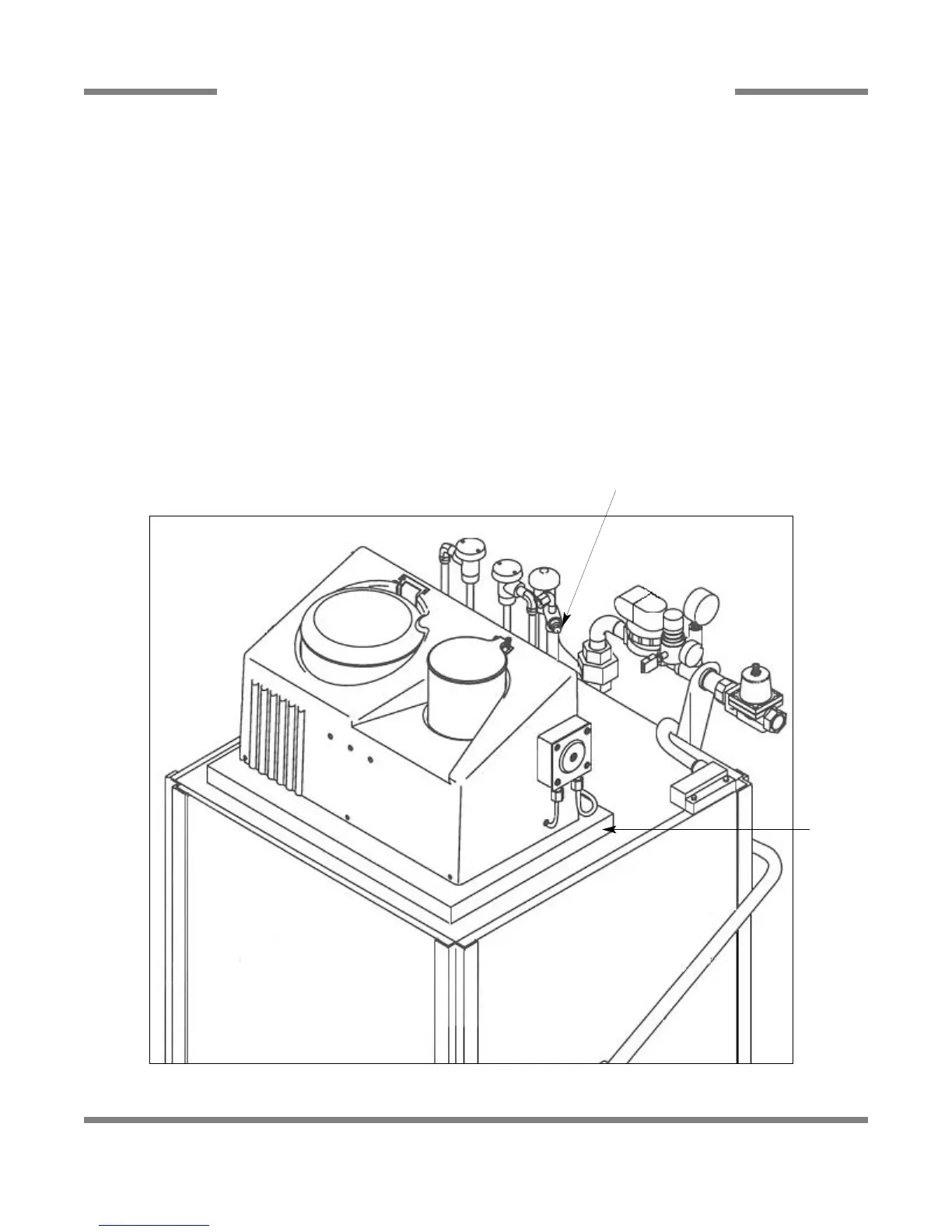

TEMPSTAR SDS DISPENSER ASSEMBLY (CONTINUED)
54
ITEM QTY DESCRIPTION Mfg. No.
54 1 Thermal Barrier Box Assembly 05700-021-48-14
55 1 Thermal Box Top Weldment 05700-021-50-64
56 1 Thermal Box Bottom Weldment 05700-021-50-65
57 1 Foam, 1" Thick 05640-011-49-07
58 3 Screw, 10-32 x 3/8" Phillips Pan Head 05305-173-26-00
59 3 Lockwasher, #10 Internal Tooth 05311-273-03-00
60 1 Valve, Check 04820-111-51-14
61 1 Fitting, Outlet Elbow 04820-111-51-18
62 1 Nut, P/P For 1/8” Tubing 04730-011-59-45
Other components not shown:
- - Sensor, Detergent 06680-011-49-83
- - Kit, Detergent Sensor Mounting 04730-111-51-17
- - Gasket, 1/8” Thick 05330-021-51-08
54
55
56
57
58
59
60, 61, 62
To Next Page
