Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

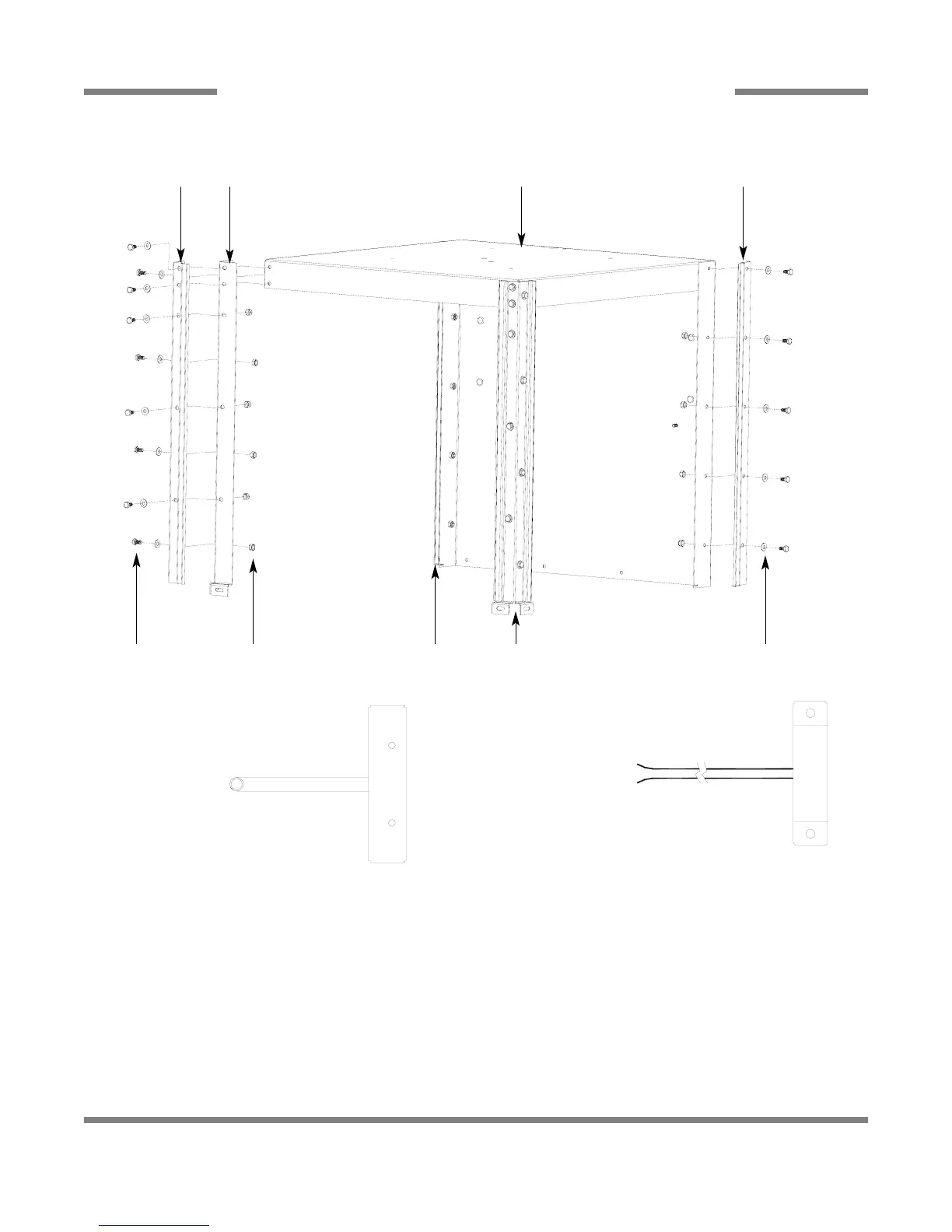

HOOD ASSEMBLY
28
1
2
3, 5
4
6
7
8 9 10
Switch Box Weldment
05700-002-14-34
SDS Switch Box Weldment
05700-002-30-98
Magnetic Reed Switch
05930-003-05-84
ITEM QTY DESCRIPTION Mfg. No.
1 1 Hood Weldment (Tempstar/Tempstar LT/Tempstar NB) 05700-041-94-39
1 1 Hood Weldment (Tempstar SDS) 05700-041-47-87
2 1 Left Front Hood Support 05700-021-33-18
3 1 Right Front Hood Support 05700-021-33-17
4 1 Double Door Guide, Front Left 05700-021-33-20
5 1 Double Door Guide, Front Right 05700-021-33-19
6 1 Guide, Right Rear 05700-021-84-70
7 1 Guide, Left Rear 05700-021-84-71
8 28 Screw, 1/4"-20 x 1/2" Long 05305-274-02-00
9 28 Locknut, 1/4"-20 with Nylon Insert 05310-374-01-00
10 28 Washer, 1/4"-20 ID, S/S, Flat 05311-174-01-00

Jackson TEMPSTAR Specifications

General

Model	TEMPSTAR
Category	Dishwasher
Weight	Varies by model
Depth	25-5/8"
Height	33-1/2"
