Jackson TEMPSTAR - Tempstar SDS Incoming Plumbing Assembly

Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

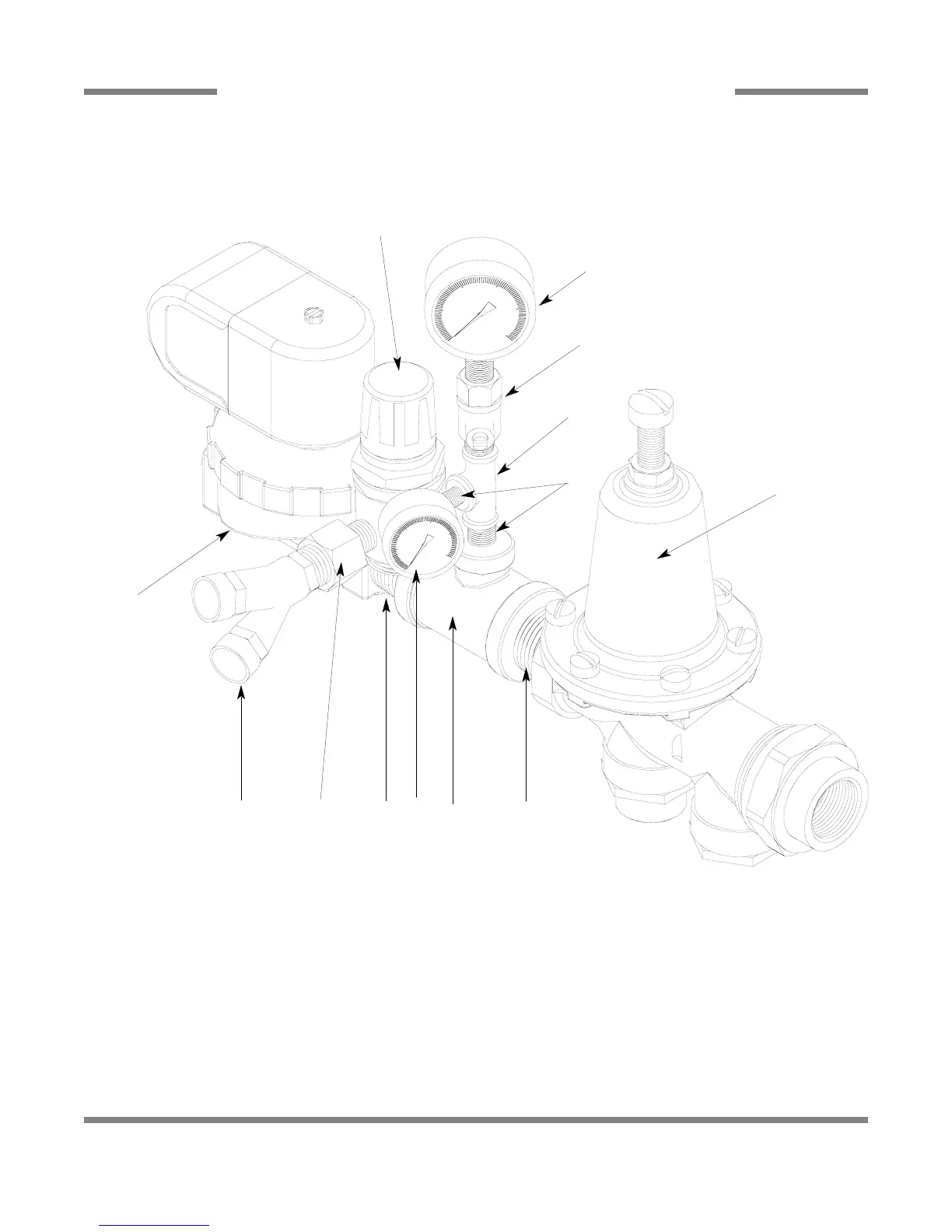

TEMPSTAR SDS INCOMING PLUMBING ASSEMBLY
46
ITEM QTY DESCRIPTION Mfg. No.
1 1 Gauge, Pressure, 0-100 PSI 06685-111-88-34
2 1 Valve, Ball, 1/4" NPT 04810-011-72-67
3 1 Tee, 1/4" x 1/4" x 1/4" Brass 04730-011-51-20
4 2 Nipple, 1/4" Close Brass 04730-207-02-00
5 1 Regulator, Pressure 06685-111-48-54
6 1 Gauge, Pressure, 0-100 PSI 1/8" 06685-011-48-32
7 1 Reducer, 1/4" Male x 3/8" Female Brass 04730-011-59-40
8 1 Fitting, 3/8" Y-Branch 04730-111-58-21
9 1 Valve, Solenoid, 3/4" NPT 04810-100-03-18
10 2 Nipple, Close, 3/4" NPT 04730-207-34-00
11 1 Tee, Brass, 3/4" NPT x 3/4" NPT x 1/4" NPT 04730-211-04-00
12 1 Water Pressure Regulator, 3/4" NPT 06685-011-58-22
1
2
3
4
6
5
78
9
10
11
10
12
Please refer to page 41, for component numbers 7 through
14 to connect to the Booster Tank. Refer to page 43 for the
Outlet Plumbing Assembly.
