Jackson TEMPSTAR - Safety Door Interlock (Sdi);Exhaust Fan Control;Transformer Mounting Box Components

Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

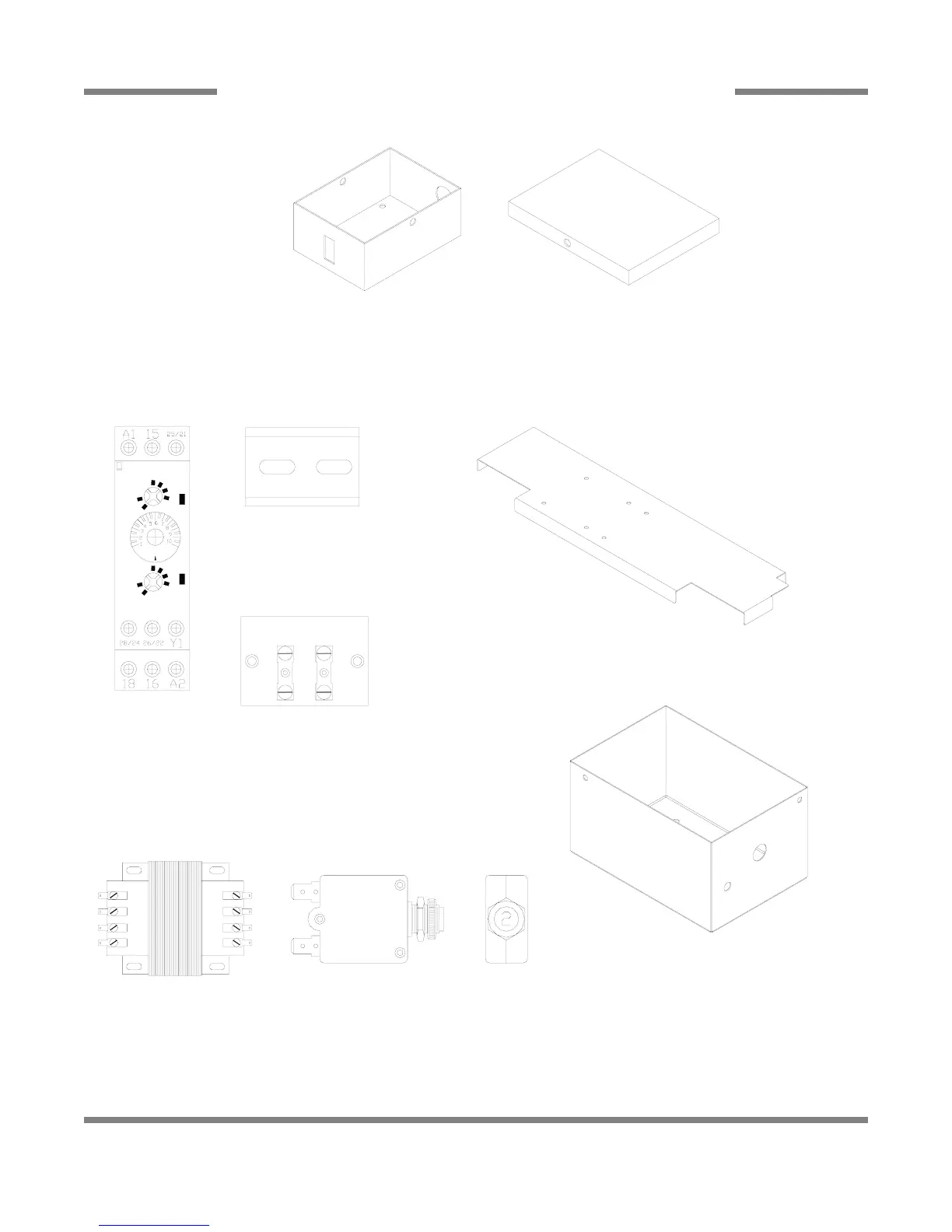

SAFETY DOOR INTERLOCK (SDI) /EXHAUST FAN CONTROL/TRANSFORMER MOUNTING BOX
55
Safety Door Interlock Box Bottom
05700-001-21-26
Safety Door Interlock Box Cover
05700-001-21-27
Other Safety Door Interlock (SDI) components (not shown):
DESCRIPTION Mfg. No.
Pipe Clamp (found on the side of the machine) 05700-000-35-05
Solenoid, Electrical Interlock Option 04810-100-61-33
Relay 05945-111-47-51
Exhaust Fan
Control
Delay Timer
05945-011-65-44
Exhaust Fan
Control
2” Din Rail
05700-002-36-09
Exhaust Fan
Control
Terminal Board
05940-011-84-41
415/440/460V
Transformer
05950-111-65-93
380V Transformer
05950-111-64-17
2 Amp Circuit Breaker
05925-111-64-18
Transformer Mounting Bracket
05700-031-62-82
Transformer Mounting Box
05700-002-10-01
Transformer Mounting Box Top
(not shown)
05700-000-78-53
