Jackson TEMPSTAR User Manual

Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

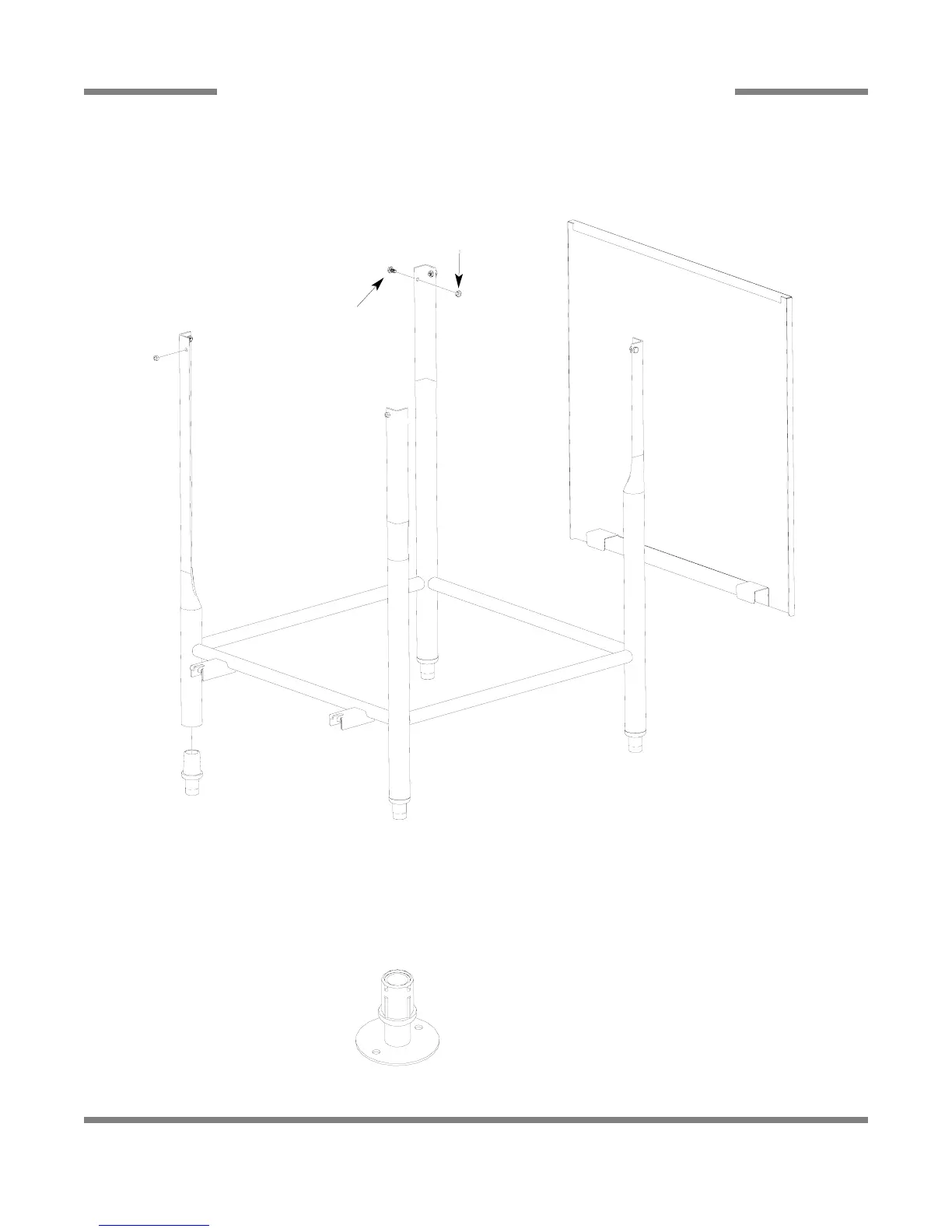

FRAME ASSEMBLY
36
Front Panel
05700-002-36-65
Bolt, 1/4”-20 x 1/2”
05305-274-02-00
Locknut, 1/4”-20 S/S Hex with Nylon Insert
05310-374-02-00
Bullet Foot
05340-108-01-03
Frame Weldment
05700-031-48-01
Flanged Bullet Foot
05340-002-34-86

Jackson TEMPSTAR Specifications

General

Model	TEMPSTAR
Category	Dishwasher
Weight	Varies by model
Depth	25-5/8"
Height	33-1/2"
