Jackson TEMPSTAR - Tempstar LT & Tempstar NB Incoming Plumbing Assembly

Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION

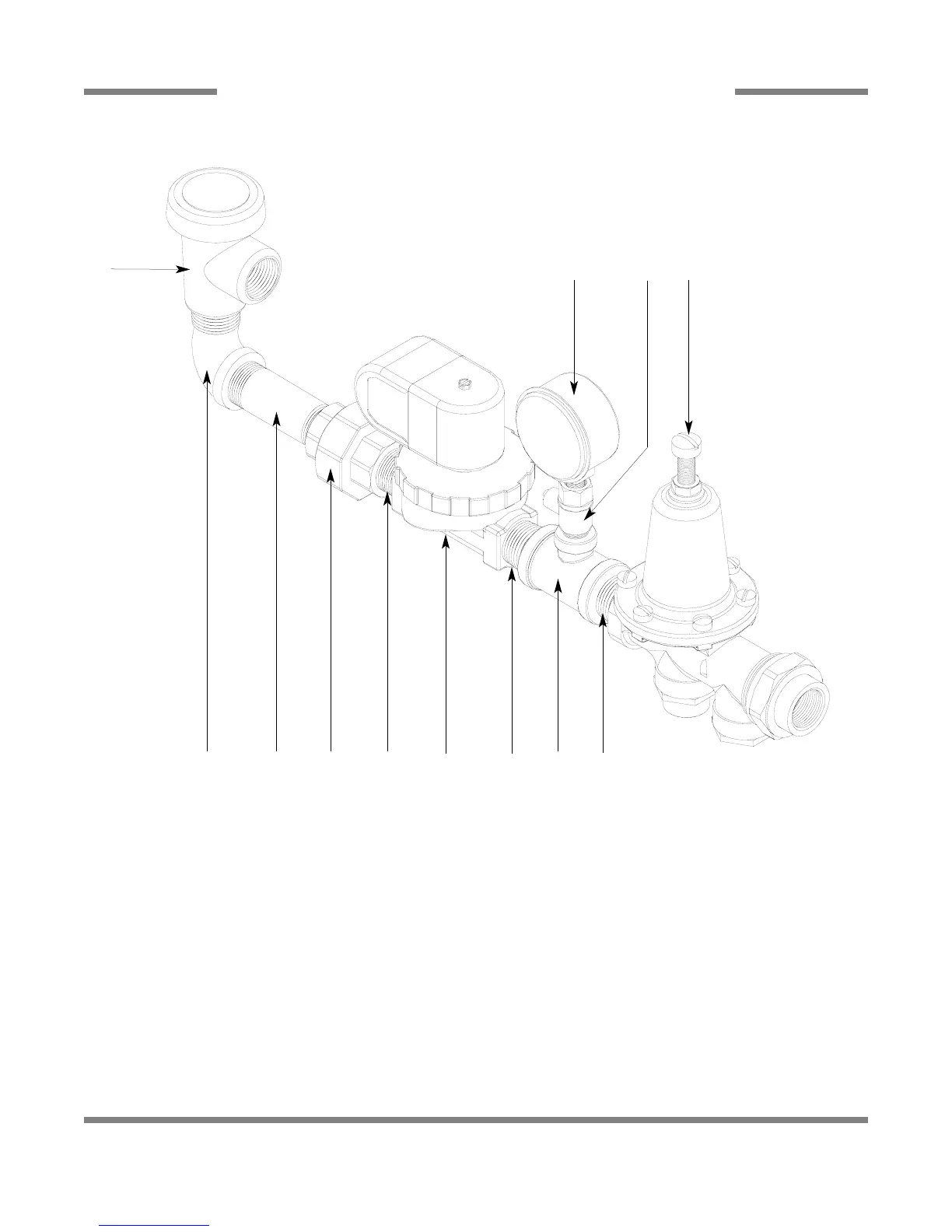

TEMPSTAR LT & TEMPSTAR NB INCOMING PLUMBING ASSEMBLY
45
ITEM QTY DESCRIPTION Mfg. No.
1 1 Vacuum Breaker, 3/4" NPT 04820-002-53-77
2 1 Elbow, Brass, Street, 3/4" NPT 04730-206-04-34
3 1 Nipple, Brass, 3/4" NPT x 3" Long 04730-011-38-29
4 1 Union, Brass, 3/4" NPT 04730-212-05-00
5 3 Nipple, Close, Brass, 3/4" NPT 04730-207-34-00
6 1 Valve, Solenoid, 3/4" NPT 04810-100-03-18
7 1 Tee, Brass, 3/4" NPT x 3/4" NPT x 1/4" NPT 04730-211-04-00
8 1 Pressure Gauge, 0-100 PSI 06685-111-59-66
9 1 Valve, Ball, Bronze, 1/4" NPT 04810-011-72-67
10 1 Water Pressure Regulator, 3/4" NPT 06685-011-58-22
2
3
4 5 6
7
5
5
81 9
10
