Tempstar LT/NB/S/SDS Technical Manual 7610-011-86-35
Issued: 12-07-2007 Revised: N/A
SECTION 5: PARTS SECTION
CANTILEVER ARM/DOOR ASSEMBLIES (CONTINUED)
31
ITEM QTY DESCRIPTION Mfg. No.
1 1 Cantilever Arm 05700-031-50-67
2 2 Spring Pin, 1/4" x 1 1/8" 05315-407-06-00
3 2 Yoke Assembly 05700-000-75-77
3a 1 Cotter Pin 05315-207-01-00
3b 1 Yoke 05700-000-75-78
3c 1 Clevis Pin, 5/16” x 1 3/8” 05315-700-01-00
3d 2 Nylon Washer 05311-369-03-00
3e 1 Bushing 03120-100-03-00
3f 2 Locknut, 3/8”-16 S/S Hex Center 05310-256-04-00
4 2 Rod, Spring 05700-002-29-38
5 2 Spring 005340-109-02-
00
6 2 Bolt, Cantilever Hanger Eye 3/8"-16 05306-956-05-00
7 2 Washer, 3/8" ID x 7/8" OD S/S 05311-176-02-00
8 4 Nut, 3/8"-16 S/S Hex 05310-276-01-00
9 2 Connector, Cantilever Arm 05700-011-90-99
10 2 Screw, 1/4"-20 x 1 1/2" Long S/S 05305-274-23-00
11 4 Washer, 1/4" S/S 05311-174-01-00
12 4 Locknut, 1/4"-20 S/S Hex with Nylon Insert Low Profile 05310-374-02-00
13 2 Sleeve, Cantilever Arm 05700-000-85-69
14 2 Plug, Cantilever Arm 05340-011-35-00
15 1 Magnet, Reed Switch 05930-111-51-68
16 2 Locknut, 8-32 S/S Hex with Nylon Insert 05310-272-02-00
17 1 Door, Right Side (Complete Assembly) 05700-002-30-88
17A 1 Right Door Weldment with Studs 05700-002-29-85
18 6 Door, Guides 05700-111-33-59
19 2 Screw, 1/4"-20 x 1/2" Long S/S 05305-274-02-00
20 2 Spacer, PB Bolt 05700-000-29-40
21 4 Locknut, 1/4"-20 S/S Hex with Nylon Insert 05310-374-01-00
22 2 Door Connector Bracket 05700-021-33-39
23 1 Door, Front (Complete Assembly) 05700-002-30-89
23A 1 Door Only, Front 05700-002-29-83
24 1 Door, Left Side (Complete Assembly) 05700-002-30-87
24A 1 Door Only, Left Side 05700-002-29-86
25 4 Door Connecting Plate 05700-002-20-78
26* 2 Bracket, Cantilever Arm Support 05700-031-88-00
27* 6 Wear Button, 1/2" Dia. UHMW 05700-011-88-01

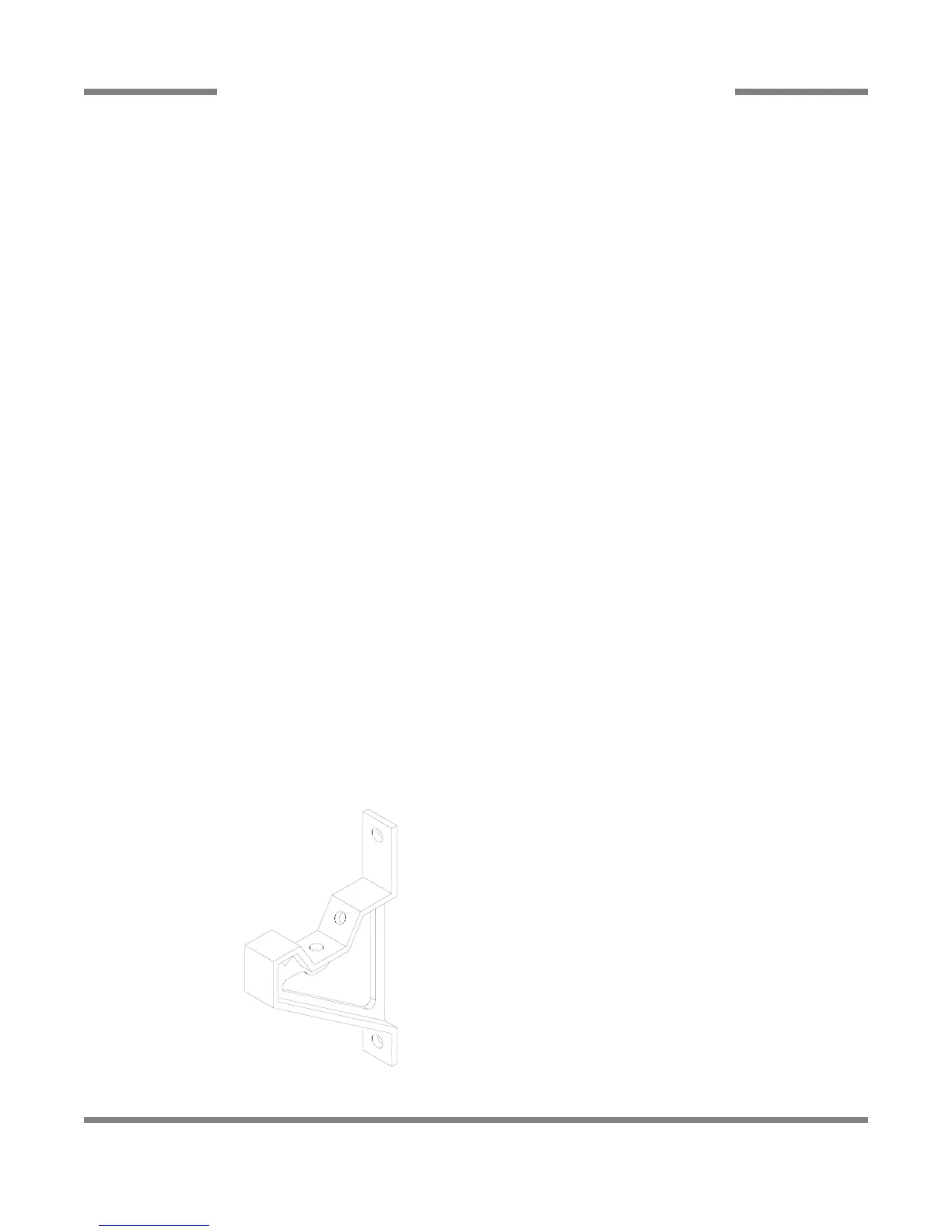

Bracket, Cantilever Arm Support
09515-003-15-64
Wear Button, 1/2" Dia. UHMW
05700-011-88-01
