Jackson WAREFORCE UH 30 - Parts and Assemblies; Control Panel and Related Assemblies

25
Page Created: 03-31-2011
Revised: 03-11-2013
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)

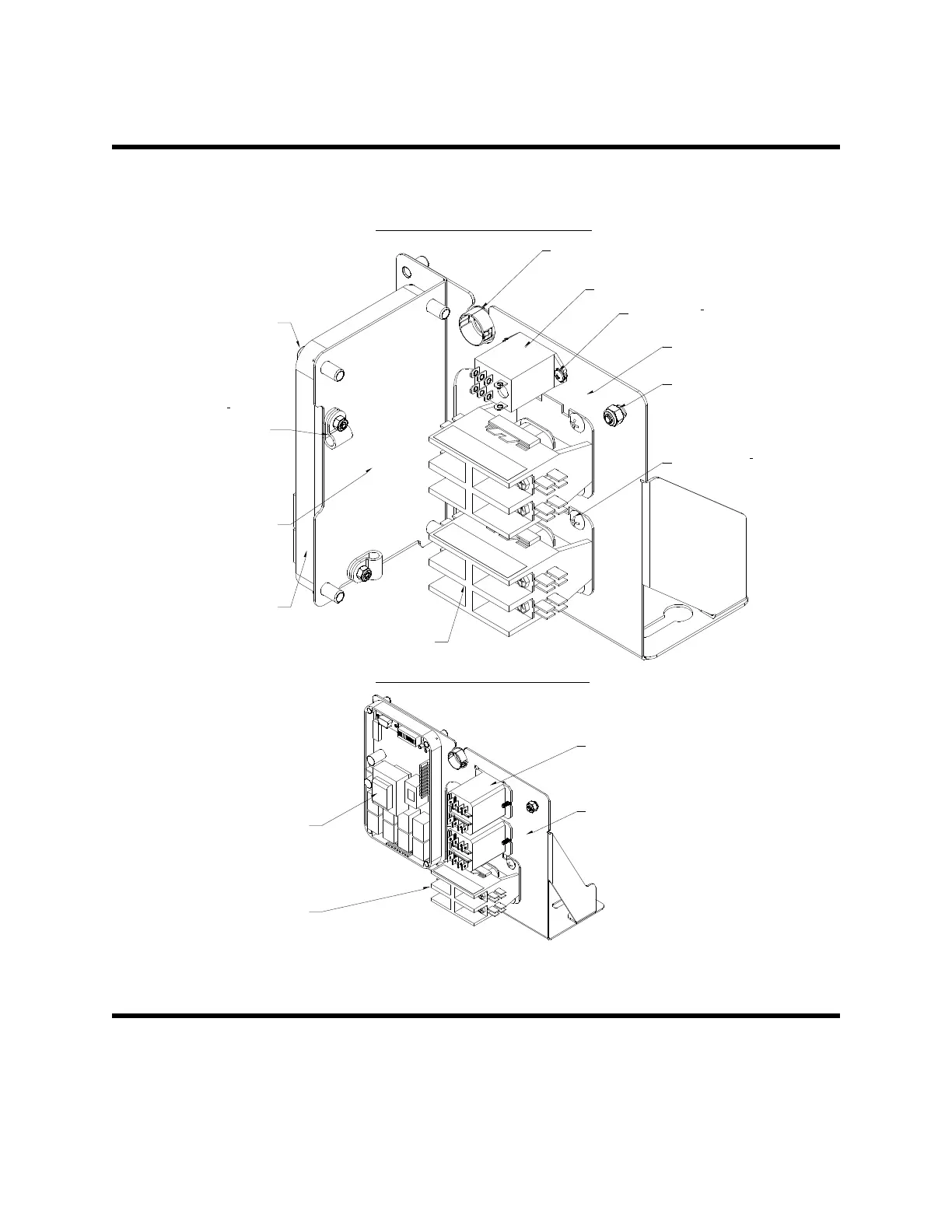

CONTROL PANEL WELDMENT ASSEMBLIES
Control Panel Weldment
05700-003-46-73
Optional Heater Relay, 20A
05945-002-90-51
Avenger LT Complete Control Panel Assembly
Complete Control Panel
Weldment Assembly
Avenger LT
05700-003-7523
Unless specified here,
other components are
the same as above.
Universal Timer
05945-003-33-09
*Fused Universal Timer
05945-003-75-23
Pump Motor Contactor, 110V
(1 per Avenger LT Asm.)
05945-109-05-69
*Fused Universal Timer
05945-003-75-23
Contactor, 240V
(2 Per Avenger HT Asm.)
05945-002-74-20
Universal Timer
05945-003-33-09
Timer Mounting Bracket
Avenger HT Only
05700-003-36-05
P Clamp
1
4
"
05975-002-61-42
Locknut, 6-32 w/Nylon
Insert
05310-373-03-00
Screw, 10-32 X 1"
(4 Per Ass'y)
05305-002-19-42
Screw, 10-32 X
3
8
"
05305-173-12-00
Locknut, 10-24 w/Nylon
Insert (1 Per Ass'y)
05310-373-01-00
Control Panel Weldment
05700-003-31-48
Complete Control Panel
Weldment Assembly
Avenger HT
05700-003-31-47
Screw, 6-32 X
3
8
"
05305-002-25-91
Relay, 240V
05945-111-89-75
Bushing, Snap
05975-003-35-21
Avenger HT Complete Control Panel Assembly
