Jackson WAREFORCE UH 30 - Control Panel Assembly;Kick Panel Weldment-Wareforce Ul 30

28
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)

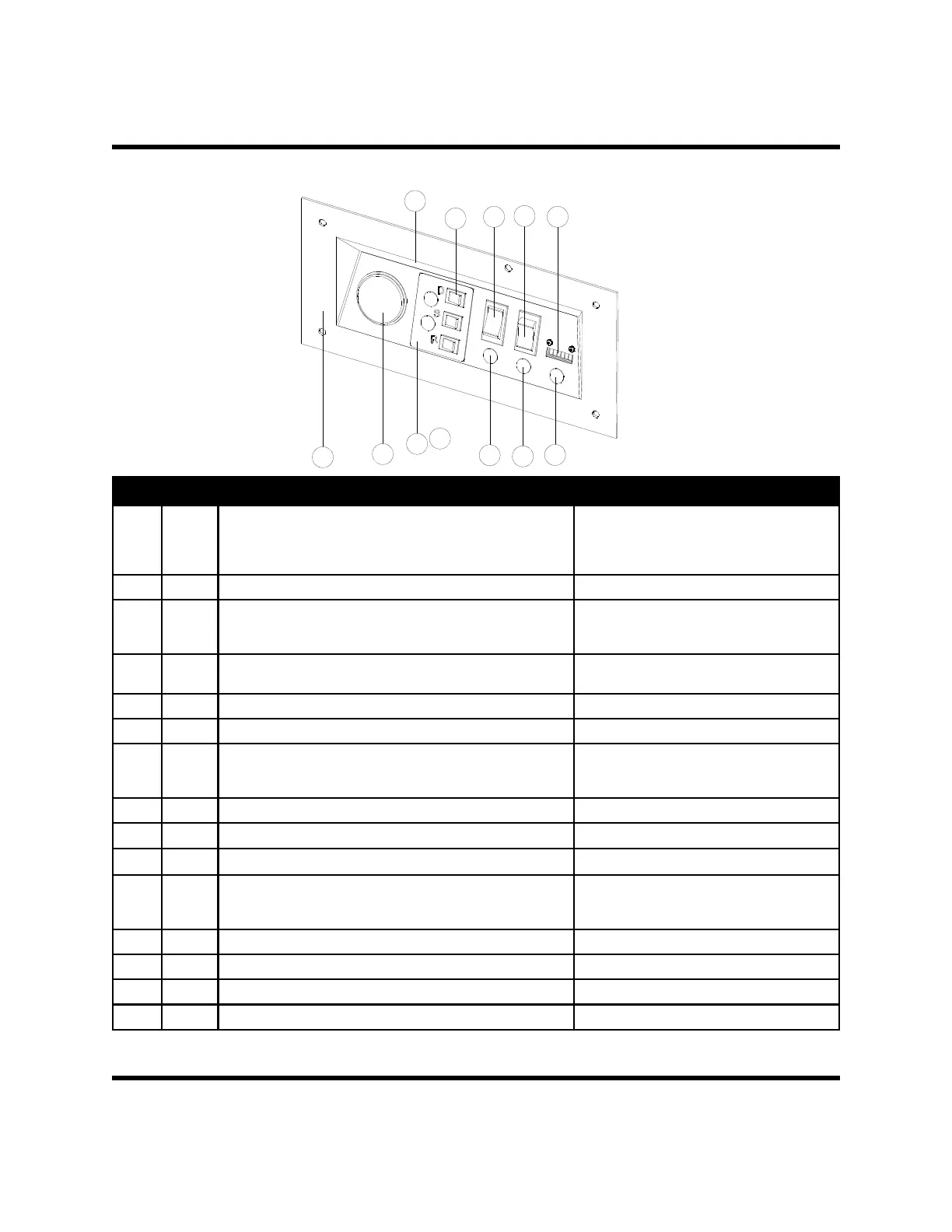

CONTROL PANEL ASSEMBLY/KICK PANEL WELDMENT-WAREFORCE™ UL 30
Item QTY Description Part Number
1 1
1
6
CONTROL PANEL
DECAL, CONTROL PANEL
LOCKNUT, 1/4” -20 S/S HEX W/NYLON INSERT
09330-041-73-90
09905-003-31-95
05310-374-01-00
2 1 THERMOMETER, 48” RINSE 06685-111-68-48
3 1
1
1
PLATE, SWITCH MOUNTING
DECAL, PRIME SWITCH
LOCKNUT, 6-32 HEX W/NYLON INSERT
05700-011-80-40
09905-011-49-52
05310-373-03-00
4 1 LIGHT, RED 05945-111-44-45
5 1 LIGHT, AMBER 05945-111-44-44
6 1 LIGHT, GREEN 05945-111-44-43
7 1
2
COUNTER, 115V
SCREW, 4-40 X 1/4” PHILLIPS PAN HEAD
05990-111-35-38
05305-002-32-38
8 1 SWITCH, AUTO-MANUAL 05930-301-49-00
9 1 SWITCH, ON-OFF 05930-011-49-55
10 3 SWITCH, PERIPUMP 05930-011-49-54
11 2
2
BUZZER, 115V (NOT SHOWN)
SCREW, 6-32 X 3/8 PAN PHILLIPS HEAD
05990-003-36-12
05305-171-07-00
12 1 LIGHT, RED 05945-504-07-18
** 1 KICK PLATE WELDMENT (NOT SHOWN) 05700-003-53-14
** 1 COMPLETE CONTROL PANEL ASSEMBLY 05700-003-34-23
** 1 WIRE HARNESS 05999-003-34-62
Page Created: 03-31-2011
Revised: 03-11-2013
1
2
3
12
4
5
6
7
8
9
10
11
D-Detergent
S-Sanitizer
R-Rinse Aid
