WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)

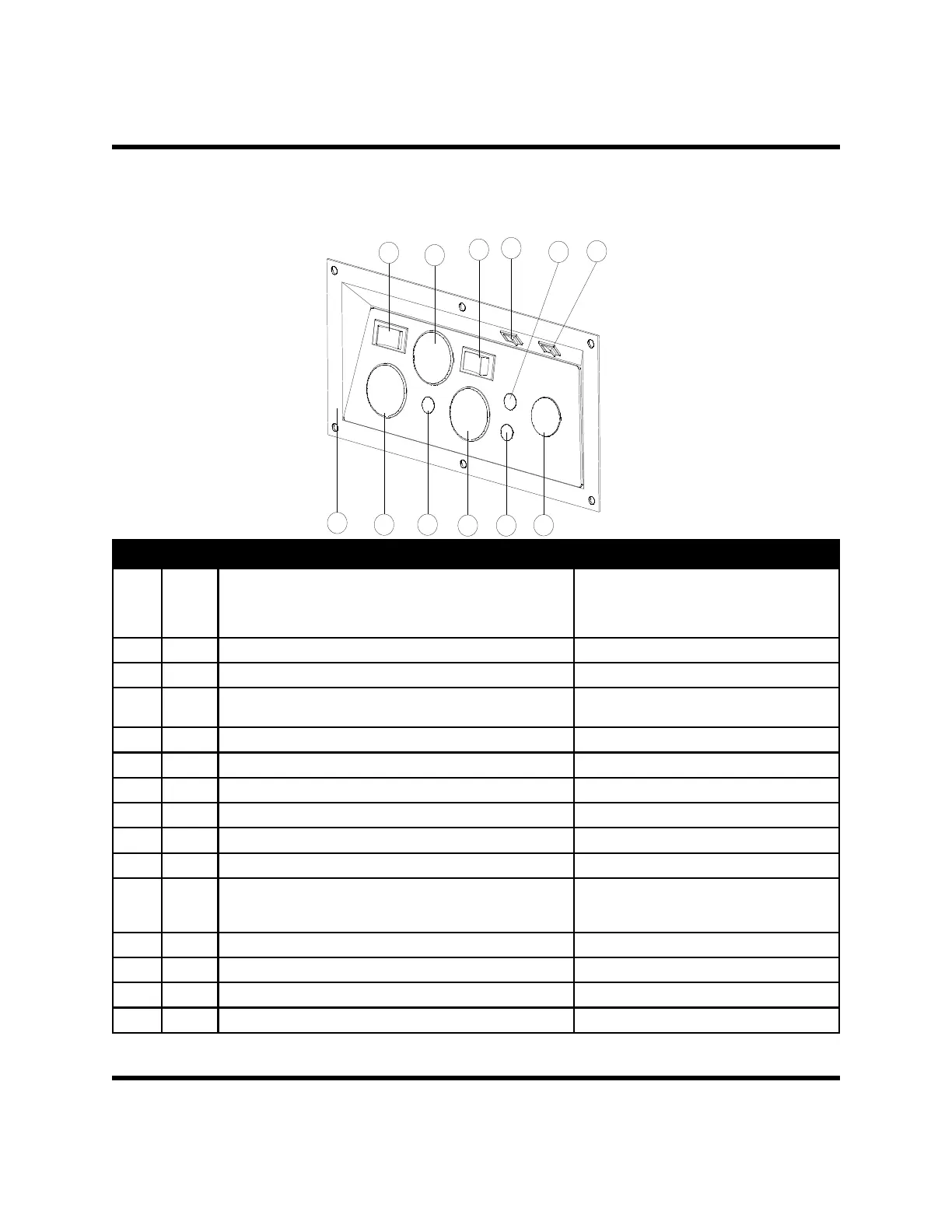

CONTROL PANEL ASSEMBLY/KICK PANEL WELDMENT-WAREFORCE™ UH 30
Item QTY Description Part Number
1 1
1
6
CONTROL PANEL
DECAL, CONTROL PANEL
LOCKNUT, 1/4” -20 S/S HEX W/NYLON INSERT
09330-003-31-66
09905-003-31-65
05310-374-01-00
2 1 THERMOMETER, 48” RINSE 06685-111-68-48
3 1 LIGHT, AMBER 05945-111-44-44
4 1 THERMOMETER, 96” WASH 06685-111-68-49
5 1 LIGHT, RED 05945-111-44-45
6 1 WINDOW PLUG 05975-003-31-72
7 1 SWITCH, RINSE AID 05930-011-49-54
8 1 SWITCH, DETERGENT 05930-011-49-54
9 1 LIGHT, GREEN 05945-111-44-43
10 1 SWITCH, ON-OFF 05930-301-49-00
11 1
1
1
GAUGE, 0-100 PSI WITH GREEN ZONE
BELL ADAPTER, 1/4 NPT X 1/8 FNPT
HOSE, PRESSURE GAUGE
06680-011-86-42
04730-003-33-02
04730-003-33-02
12 1 SWITCH, AUTO-MANUAL 05930-011-49-55
** 1 KICK PLATE WELDMENT (NOT SHOWN) 05700-003-32-91
** 1 COMPLETE CONTROL PANEL ASSEMBLY 05700-003-31-64
** 1 WIRE HARNESS 05999-003-34-61
12
11
8
9
7
10
1
2 3
4 5
6
