Jackson WAREFORCE UH 30 - Rinse Solenoid Valve & Vacuum Breaker Repair Parts Kit;Water Hammer Arrestor Kit Option

38
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)

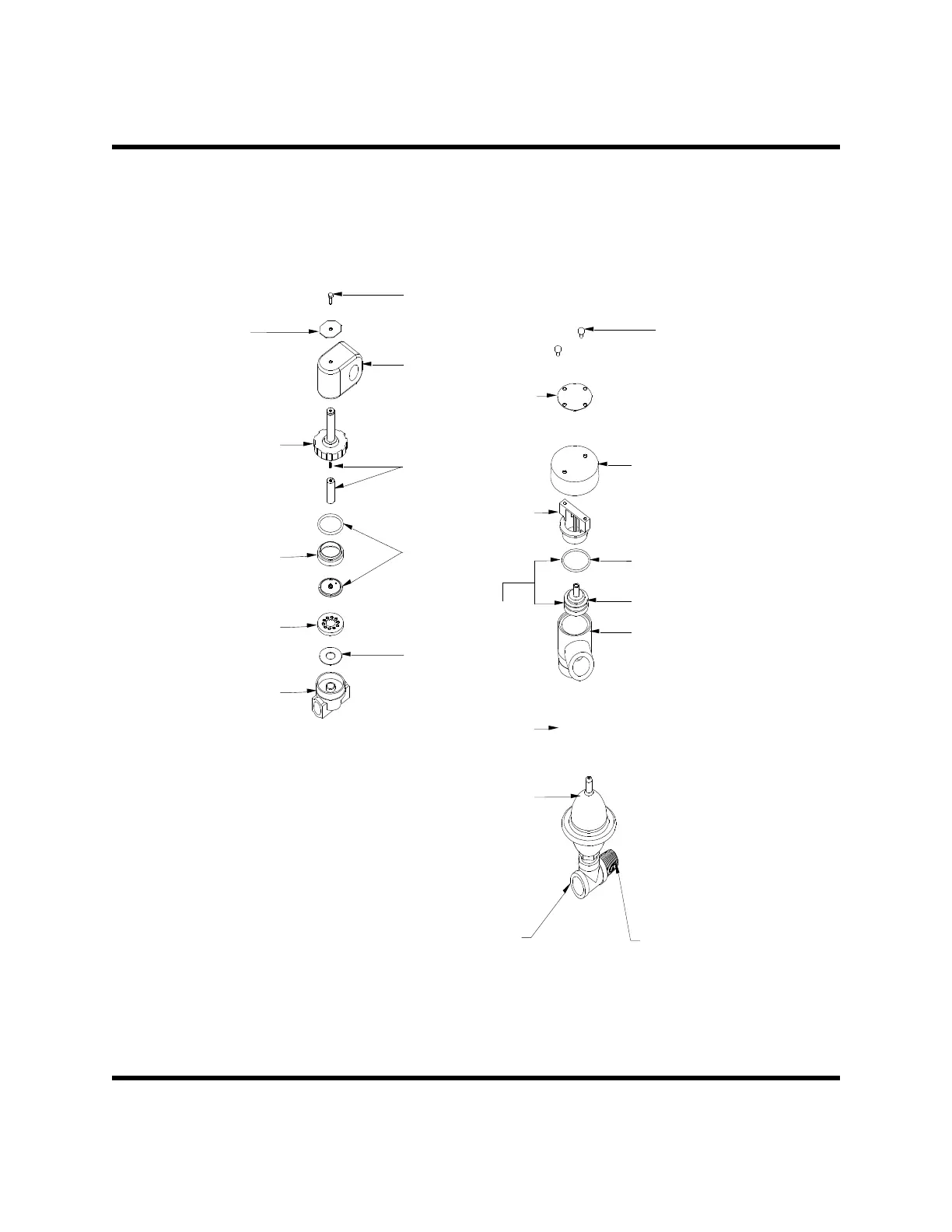

RINSE SOLENOID VALVE & VACUUM BREAKER REPAIR PARTS KIT/WATER HAMMER KIT OPTION
Page Created: 04-06-2011
Revised: 03-11-2013
TEE 1 /2" X 1 /2" X 1 /2"
04730-211-27-00
Screw
Coil & Housing
Spring & Plunger Kit
06401-003-07-40
O-Ring & Diaphram
06401-003-07-41
Mesh Screen
Data Plate
Valve Bonnet
Spring position is moved
for clarity. Goes below
the plunger.
Diaphragm
Retainer
Screen
Retainer
Valve Body
Cap Screw
Data Plate
Cap
Cap Retainer
O-Ring
Plunger
Body
Components of
Repair Kit
06401-003-06-23
Complete Vacuum Breaker Assembly, 1 /2" NPT
04820-003-06-13
Water Hammer Arrestor Assembly
05700-002-64-67
Cap Retainer
Water Hammer Arrestor
1 /2" NPT
06685-100-05-00
Close Nipple 1 /2" NPT
04730-207-15-00
Coil & Housing Only 1 /2"
06401-003-07-44
Complete 110 Volt Solenoid Valve Assembly, 1 /2" NPT
04810-100-12-18
Coil & Housing Only 1 /2"
06401-003-07-43
Complete 220 Volt Solenoid Valve Assembly, 1 /2" NPT
04810-100-09-18
