Jackson WAREFORCE UH 30 - Rinse Arm & Wash Arm Assemblies

42
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)

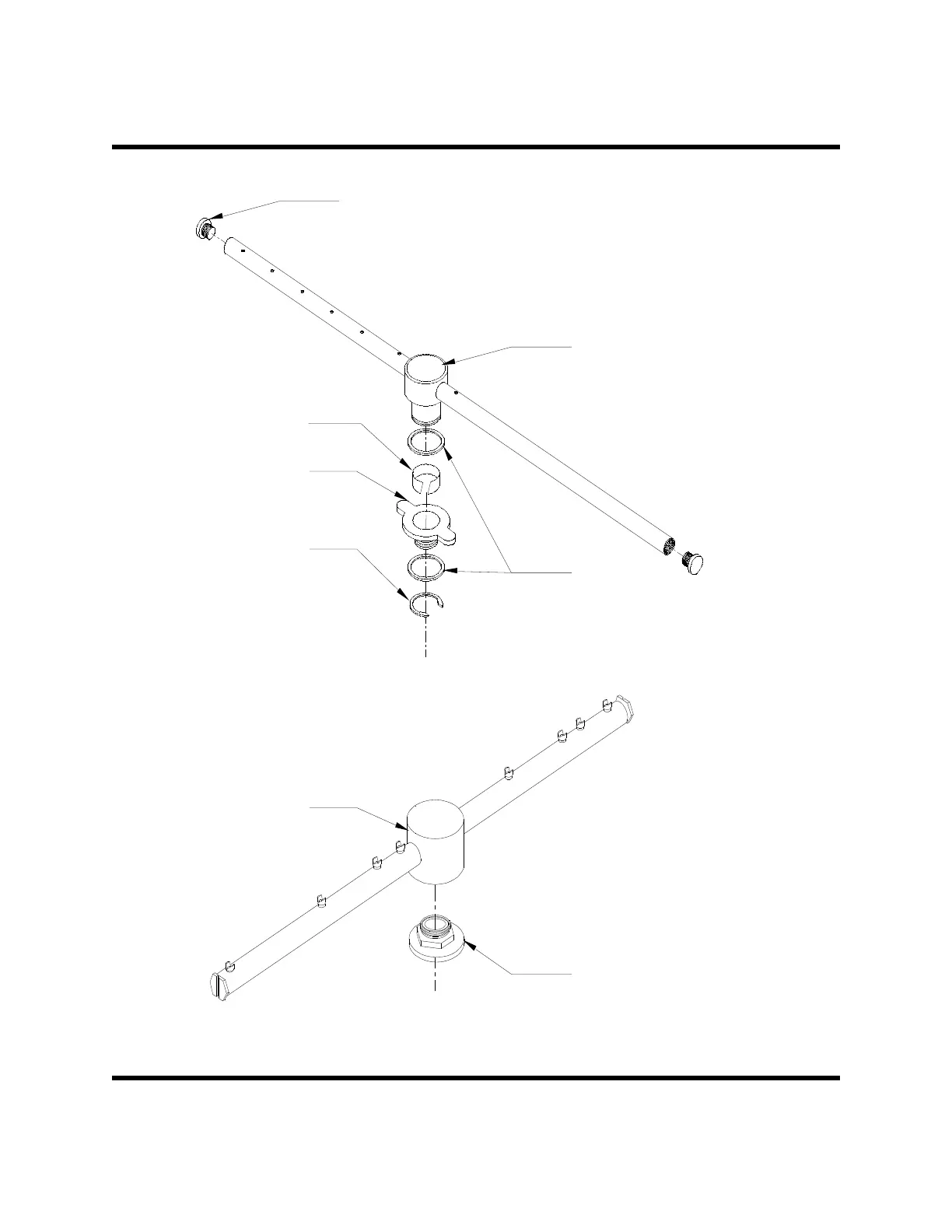

RINSE ARM & WASH ARM ASSEMBLIES
Plug, Rinse Arm
04730-609-04-00
Rinse Arm Assembly
(AVENGER HT units ONLY)
2 per Assembly
05700-031-39-21
Rinse Arm
05700-031-38-30
O-Ring (Not Shown)
05330-002-60-69
Washer, Rinse Arm
05330-011-42-10
Bearing. 03120-002-72-24
Bushing, Rinse Head
05700-021-33-84
Ring, Retaining
05340-112-01-11
Wash Arm Assembly
2 Per AVENGER LT
1 Per AVENGER HT
05700-021-39-23
Wash Arm Weldment w/Plugs
05700-021-46-58
Bearing Assembly
05700-021-35-97
O-Ring (Not Shown)
05330-002-60-69
Page Created: 04-06-2011
Revised: 03-11-2013
