Jackson WAREFORCE UH 30 - Stands & Components

50
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)
STANDS & COMPONENTS
Page Created: 04-07-2011
Revised: 03-11-2013
INSTALLATION INSTRUCTIONS: To install the stand, first remove the adjustable feet from the machine. Place machine on table
and use the square mounting holes to line up the machine. Re-insert the adjustable feet through bottom of table top and
tighten to lock machine to table.

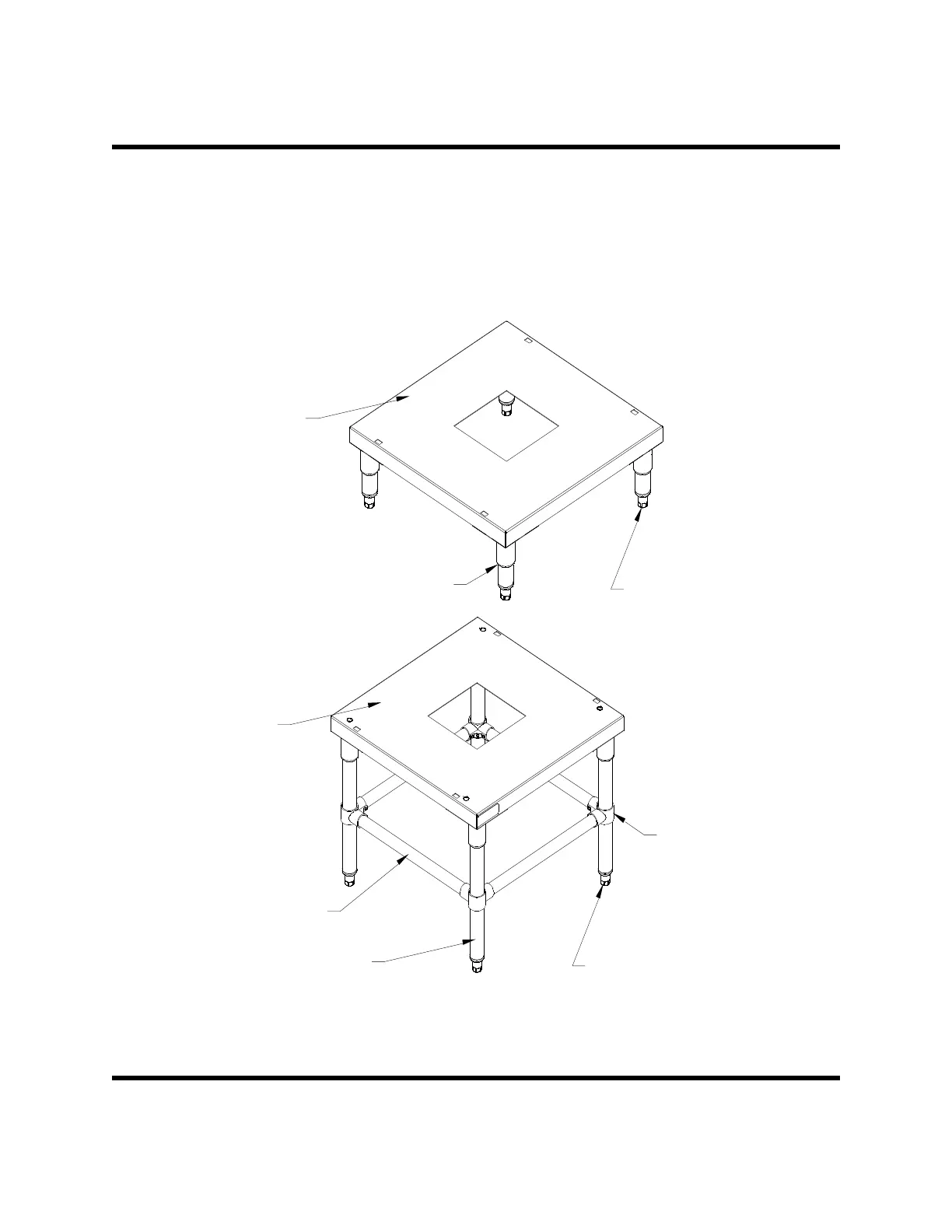

6" Stand Assembly
05700-003-34-24
Stand
05700-002-88-82
Bullet Foot
05340-108-01-03
6" Leg
05700-021-61-10
Stand
05700-002-88-82
Cross Brace
05700-003-25-90
18" Leg
05700-002-89-47
Cross Member Bracket
04730-003-25-89
Bullet Foot
05340-108-01-03
18" Stand Assembly
05700-003-34-25
