Jackson WAREFORCE UH 30 - Terminal Block Box Assembly

29
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)

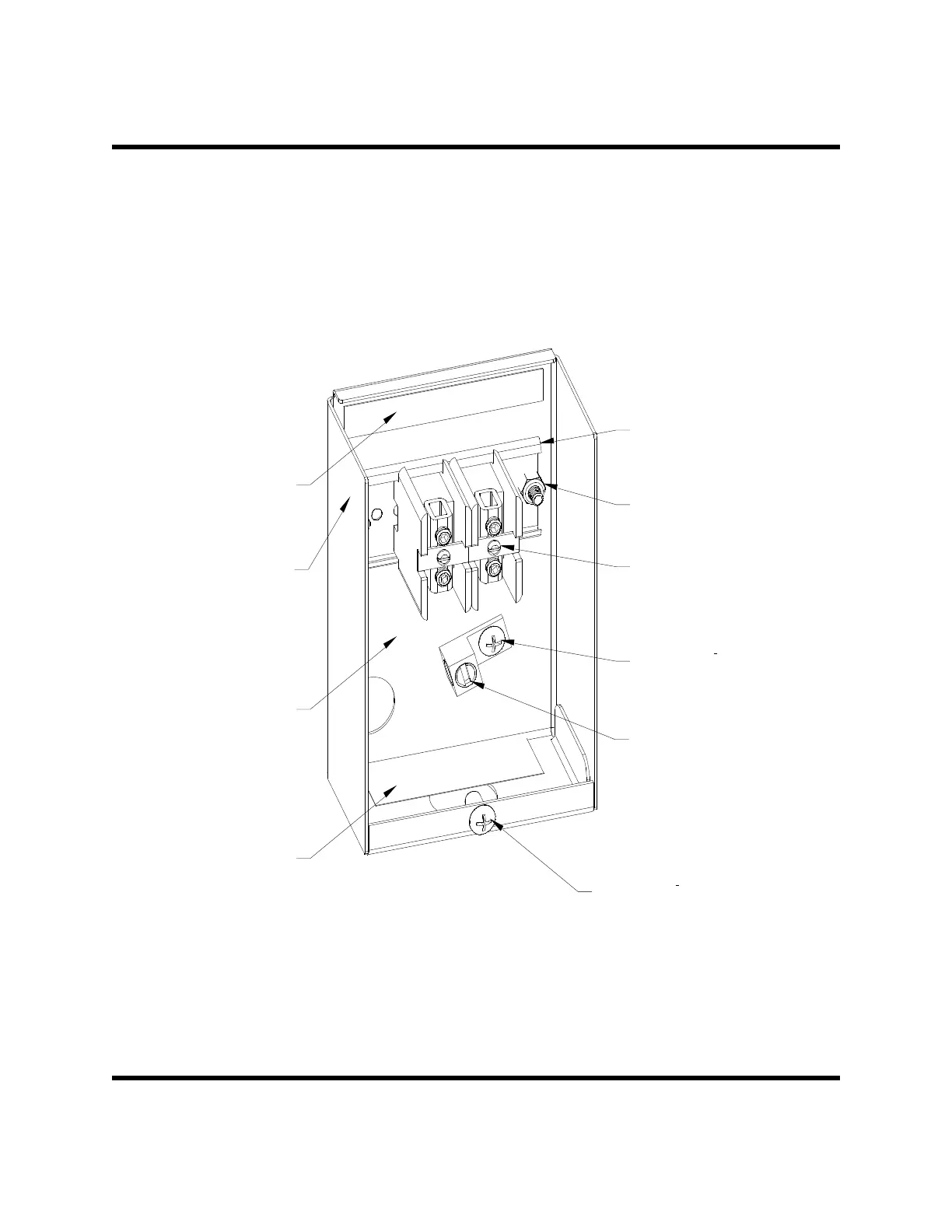

TERMINAL BLOCK BOX ASSEMBLY
Page Created: 04-01-2011
Revised: 03-11-2013
Screw, 10-32 X
1
2
"
05305-011-39-36
Decal, Copper Conductors
09905-011-62-72
Ground Lug
05940-200-76-00
Screw, 10-32 X
1
2
"
05305-011-39-36
Terminal block
(2 Per) (3 Per 480V)
05940-500-02-19
Locknut, 10-24 S/S Hex
with Nylon Insert
05310-373-01-00
Terminal Block Track
05700-000-43-60
Decal, Copper Conductors
09905-011-62-72
Decal, Power Connections
09905-011-47-35
Terminal Block Box
05700-003-27-69
Terminal Box Cover
(Not Shown)
05700-003-27-70
(LOCATED AT LOWER LEFT REAR CORNER OF MACHINE)
