Jackson WAREFORCE UH 30 - Vacuum Switch Assembly; Vacuum Switch Assembly Components

53
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)

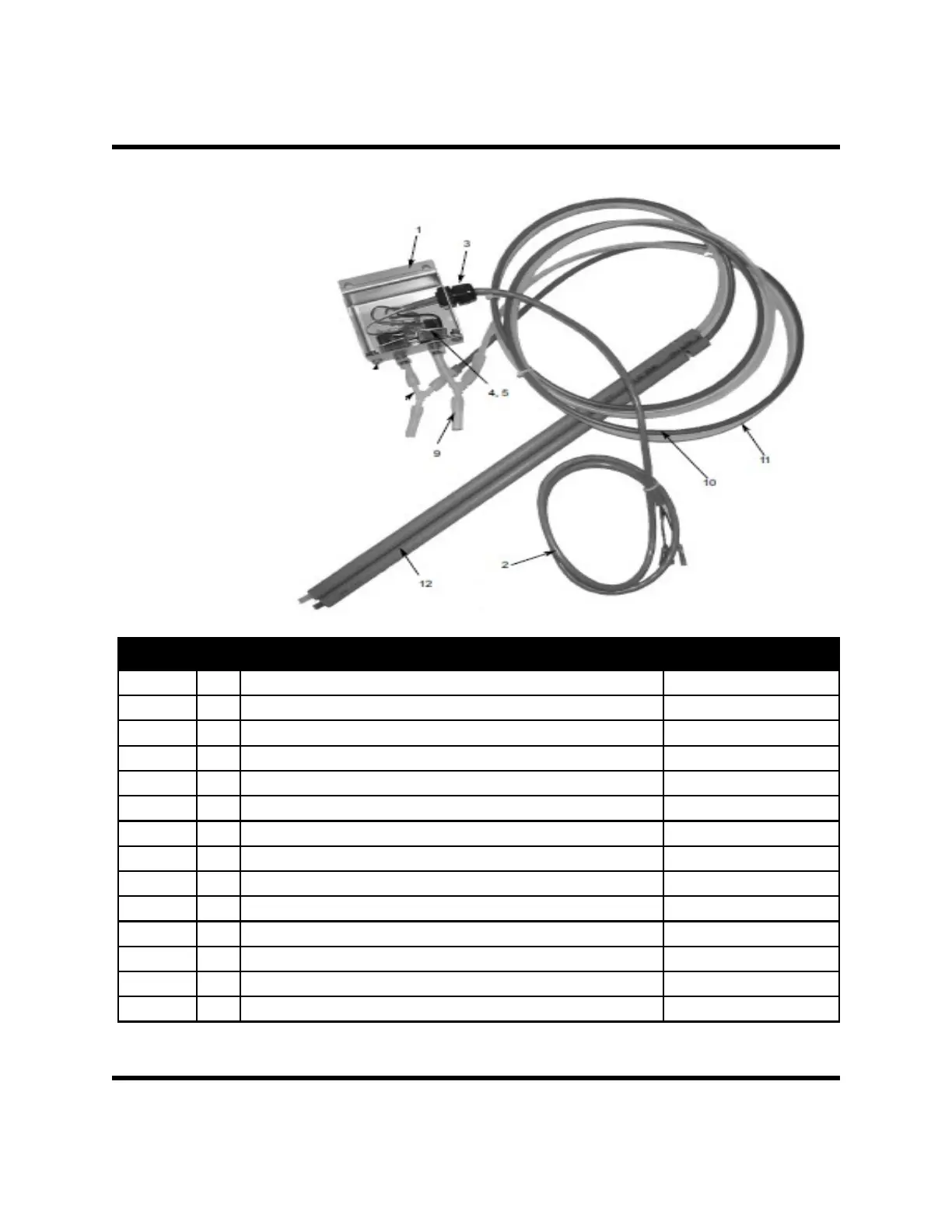

VACUUM SWITCH ASSEMBLY
Page Created: 04-11-2011
Revised: 03-11-2013
Item QTY Description Part Number
COMPLETE ASSEMBLY 05700-003-55-98
1 1 BOX, VACUUM SWITCH 05700-003-55-96
2 1 HARNESS, VACUUM SWITCH 05700-003-55-97
3 1 FITTING, .231 X .394 LIQUID TIGHT 05975-011-49-03
4 2 SWITCH, PRESSURE 06685-003-36-13
5 2 BRACKET, PRESSURE SWITCH 05700-003-53-03
6 2 LOCKNUT, 10-32 S/S HEX WITH NYLON INSERT 05310-373-02-00
7 2 SCREW, 10-32 X 3/8” LONG 05305-173-12-00
8 2 WYE, 1/4” BARBED 04730-003-36-14
9 6 TUBING, TYGOPRENE 1” LONG 05700-003-53-26
10 2 TUBING, 1/4” ID X 100” LONG, RED 05700-003-03-45
11 2 TUBING, 1/4” ID X 100” LONG, CLEAR 05700-003-20-67
12 2 STIFFENER, CHEMICAL TUBE 05700-002-66-49
13 12 TIE, CABLE 05975-60201-16
