Jackson WAREFORCE UH 30 - WAREFORCE UH 30 480 V Control Panel Assembly

26
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)

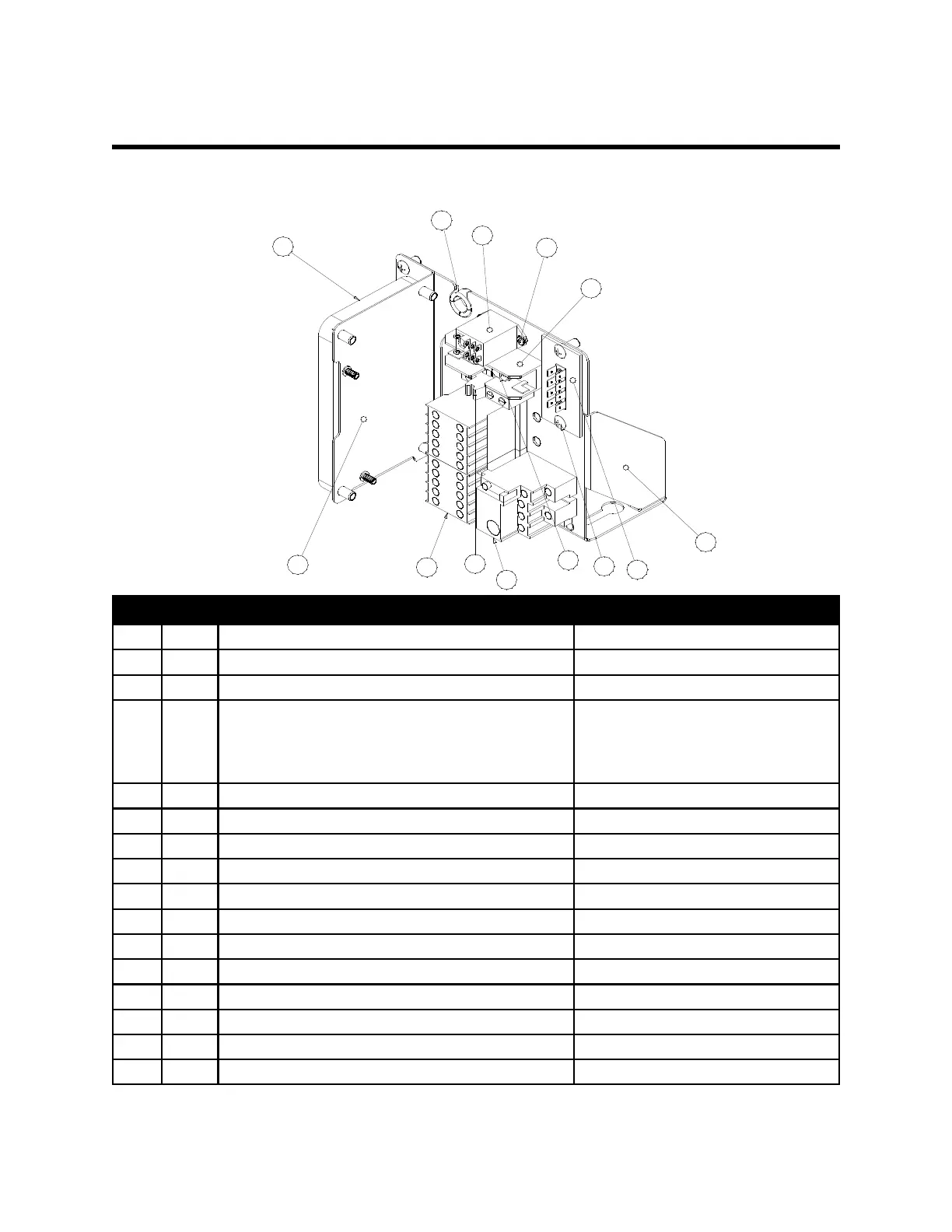

WAREFORCE™ UH 30 480V CONTROL PANEL ASSEMBLY
Item QTY Description Part Number
1 1 ELECTRICAL PANEL WELDMENT 05700-003-37-46
2 1 TIMER, BRACKET ASSEMBLY 05700-003-36-05
3 1 TIMER, UNIVERSAL 05945-003-33-09
*1
1
1
1
FUSED UNIVERSAL TIMER (ALTERNATE CONSTRUCTION)
FUSE
9 WIRE HARNESS
10 WIRE HARNESS
05945-003-75-23
05920-003-75-24
05999-003-75-81
5999-003-75-82
4 1 RELAY 05945-002-47-41
5 1 TERMINAL BOARD 05940-021-94-85
6 1 TRACK, TERMINAL BLOCK 05700-003-37-49
7 1 FUSE HOLDER 05920-011-72-89
8 1 FUSE, 1/4 AMP 05920-002-75-95
9 2 CONTACTOR 05945-111-60-07
10 1 OVERLOAD 05945-111-60-08
11 2 SCREW, 6-32 X 3/8” W/EXTERNAL T WASHER 05305-002-25-91
12 1 OPEN/CLOSED BUSHING, 7/8” 05975-003-35-21
13 6 SCREW, 10-32 X 3/8” LONG PHIL TRUSS HEAD 05305-173-12-00
14 2 END CLAMP 05950-111-60-30
15 1 TRANSFORMER (NOT SHOWN) 05950-011-50-70
1
5
13
8
10
14
9
2
7
11
4
12
3
