Jackson WAREFORCE UH 30 - Miscellaneous Door Components

47
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)
MISCELLANEOUS DOOR COMPONENTS
Page Created: 04-07-2011
Revised: 03-11-2013
Hardware:
Locknut, 6-32 S/S Hex with Nylon Insert
05310-373-03-00
Screw, 6-32 X 1 /4" Flat Head
05305-171-01-00

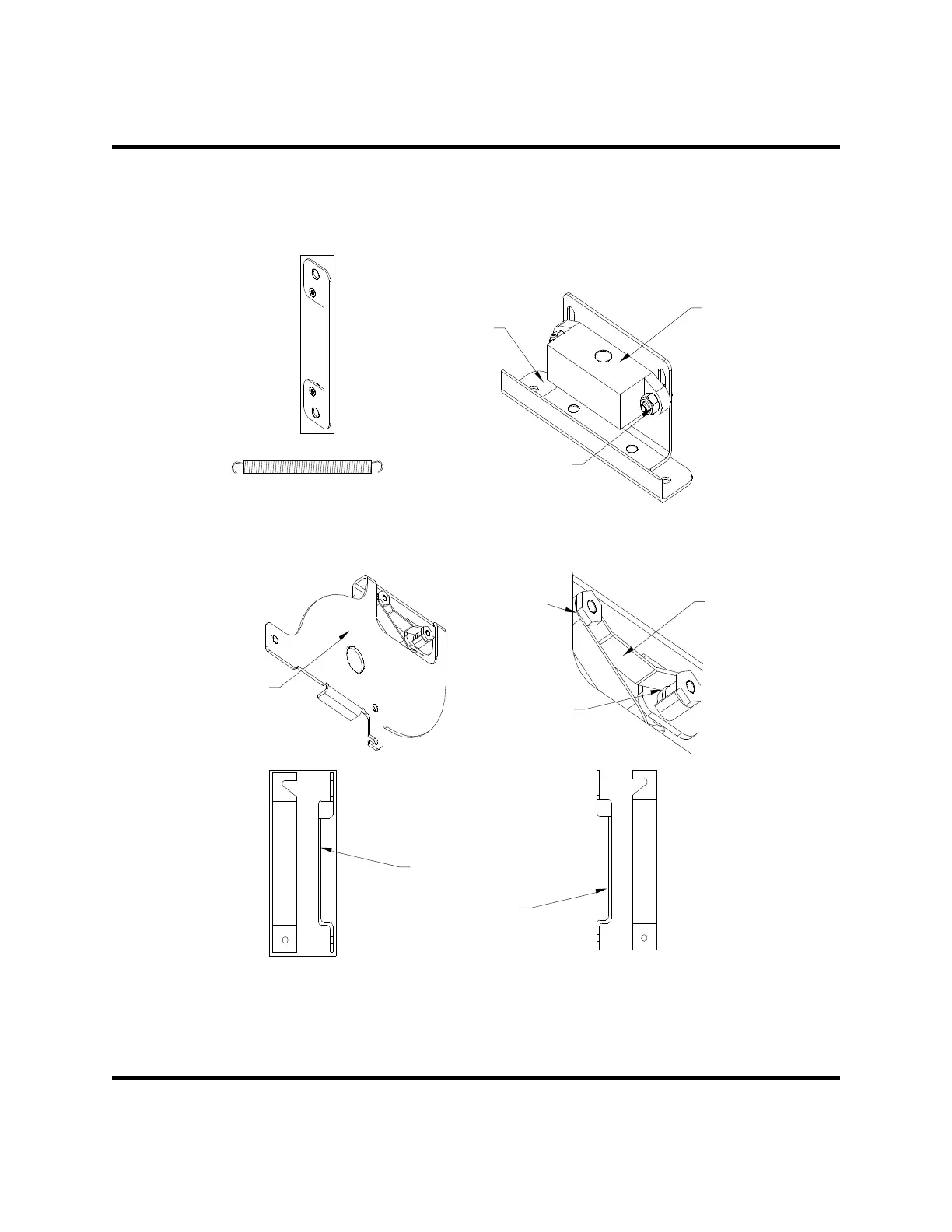

Door Switch & Bracket Assembly
05700-003-32-21
Door Switch
05930-003-31-44
Door Switch Bracket
05700-003-31-43
Switch Mounting Plate
Assembly
05700-003-33-54
Door Spring
05700-003-32-85
Hinge Stop Assembly
Right (Shown): 05700-003-32-61
Left: 05700-003-32-60
Hinge Stop Weldment
Right (Shown): 05700-003-32-63
Left: 05700-003-32-61
Latch Spring
05700-003-32-32
Latch Nut (2 Per Assembly)
05700-003-32-33
O-Ring (2 Per Assembly)
05330-003-32-34
Cover,Right Hinge Weldment
05700-002-18-42
Cover,Left Hinge Weldment
05700-002-18-41
Hinge Components secured with:
Locknut, 1 /4"-20 S/S Hex with Nylon Insert
05310-374-01-00
