Jackson WAREFORCE UH 30 - Plumbing and Valve Assemblies

36
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)

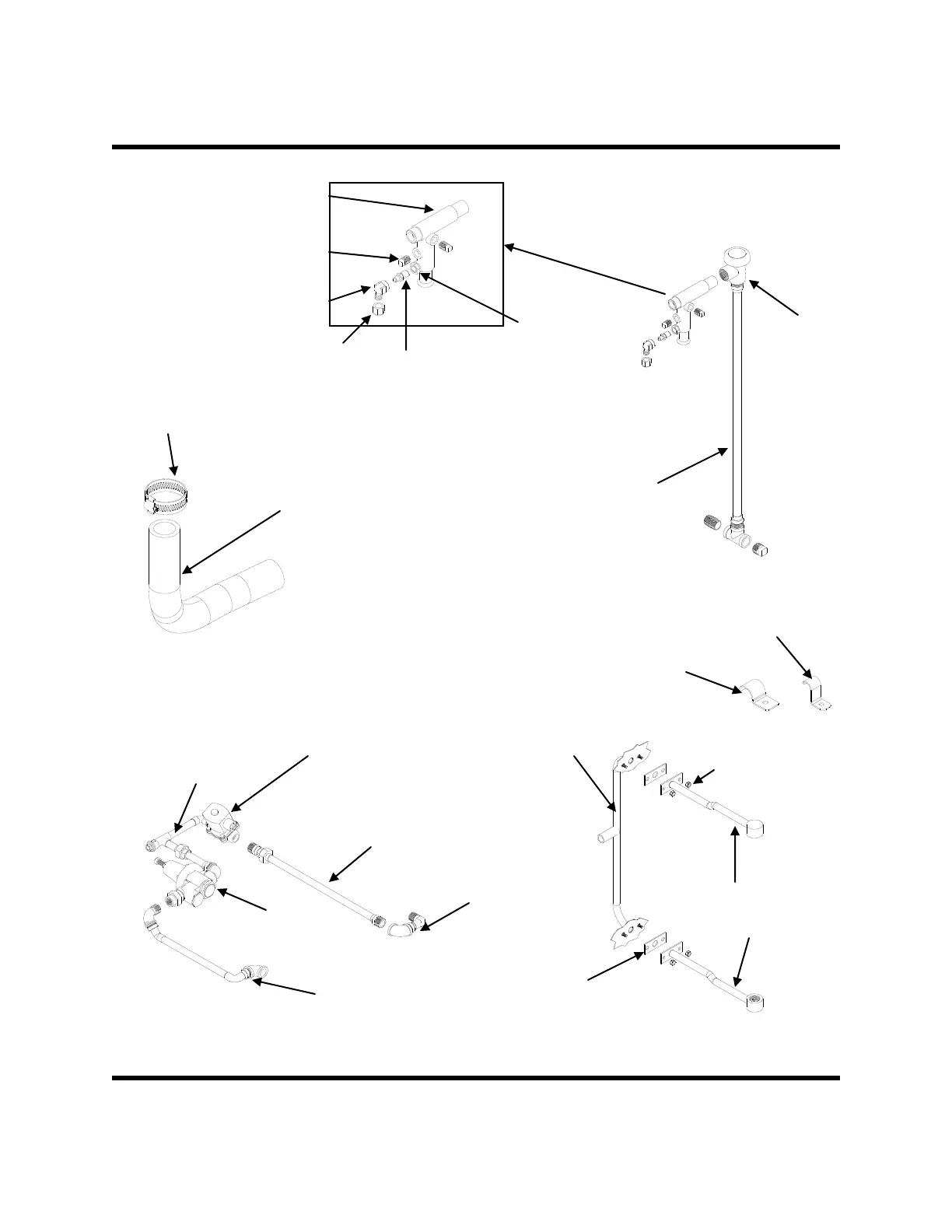

WAREFORCE™ UH 30 PLUMBING ASSEMBLIES
Page Created:04-01-2011
Revised: 03-11-2013
Clamp, Hose
2 per
04730-719-06-09
Rinse Hub Weldment
05700-021-38-31
Valve, solenoid 1/2” 220 volt
04810-003-71-56
Valve, solenoid 1/2” 110volt
04810-003-71-55
Inlet Booster Valve
Plumbing
05700-003-33-98
Vacuum Plumbing Assembly
05700-003-32-14
Complete Incoming
Plumbing Assembly
05700-003-36-32
Regulator
04820-100-04-07
Incoming Plumbing Assembly
05700-003-32-17
Inlet Hook-Up Plumbing
05700-003-33-99
Inlet Booster Plumbing
05700-003-33-97
Injector Hose, 3/4” X 7 1/2”
05700-003-33-49
Injector Hose Spring
05340-003-33-50
Clamp, Pipe
2 per assembly
05700-000-35-05
Clamp, Pipe
05700-011-36-62
Rinse Gasket
05330-111-42-81
Lock Nut 1/4-20 S/S
05310-374-01-00
Vacuum Breaker Tubing
Assembly
05700-003-32-15
Vacuum
Breaker
04820-003-06-
Busing, 1/4x 1/8” S/S
04730-003-05-61
Injector Weldment
05700-031-41-83
Plug, 1/4” Brass
2 per machine
04730-209-01-00
Fitting, Outlet Elbow
04820-111-51-18
Valve, Check
04820-111-51-14
Nut, P/P for 1/8”
Tubing
04730-011-59-45
Rinse Stiffener
(Non replaceable)
Connects to Rinse
Stiffener
Connects to
Rinse Injector
