Jackson WAREFORCE UH 30 - Motor & Pump Assembly

41
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)

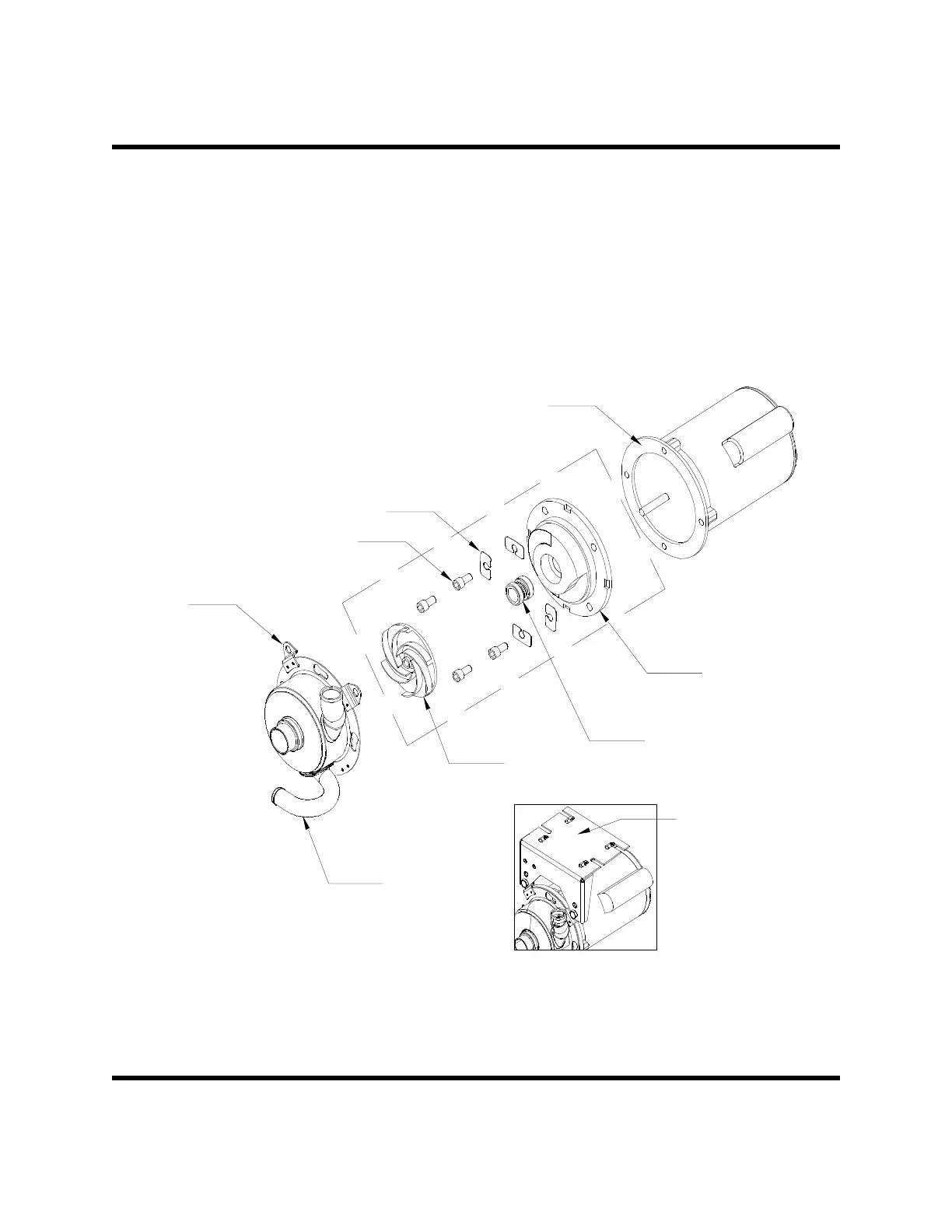

MOTOR & PUMP ASSEMBLY
Case O-Ring, 60 HZ
05330-002-81-83
Seal Plate, 60 HZ
05700-002-81-87
Mechanical Seal, 60 HZ
05330-002-34-22
Other parts not shown:
Drain Plug-04730-002-81-89
Mounting Bracket
05700-003-31-58
Impeller Assembly, 60 HZ
05700-002-81-86
Pump Casing S/S, 60 HZ
05700-002-85-00
Hardware:
Bolt, 3 /8" (2 per)
05311-276-03-00
Lock washer, 3 /8" (2 per)
05311-276-01-00
Nut Hex, 3 /8"-16 (2 per)
05310-276-01-00
Case Capscrew
05305-002-81-88
Shim Kit
05700-002-82-58
Motor Only, 208-230V, 60 HZ 06105-002-79-61
Motor Only, 460V, 60 HZ 06105-003-52-64
Complete Pump & Motor Assembly, 60 HZ With Bracket
05700-003-31-57
Complete Pump & Motor Assembly, 60 HZ No Bracket
06105-002-72-75
Pump Only Assembly, 60 HZ
(Area indicated within box, Casing is included)
05700-002-79-50
Complete Pump & Motor Assembly, 480V 60 HZ With Bracket
05700-003-52-80
Complete Pump & Motor Assembly, 480V 60 HZ No Bracket
06105-003-52-78
Page Created: 04-06-2011
Revised: 03-11-2013
