Jackson WAREFORCE UH 30 - Page 46

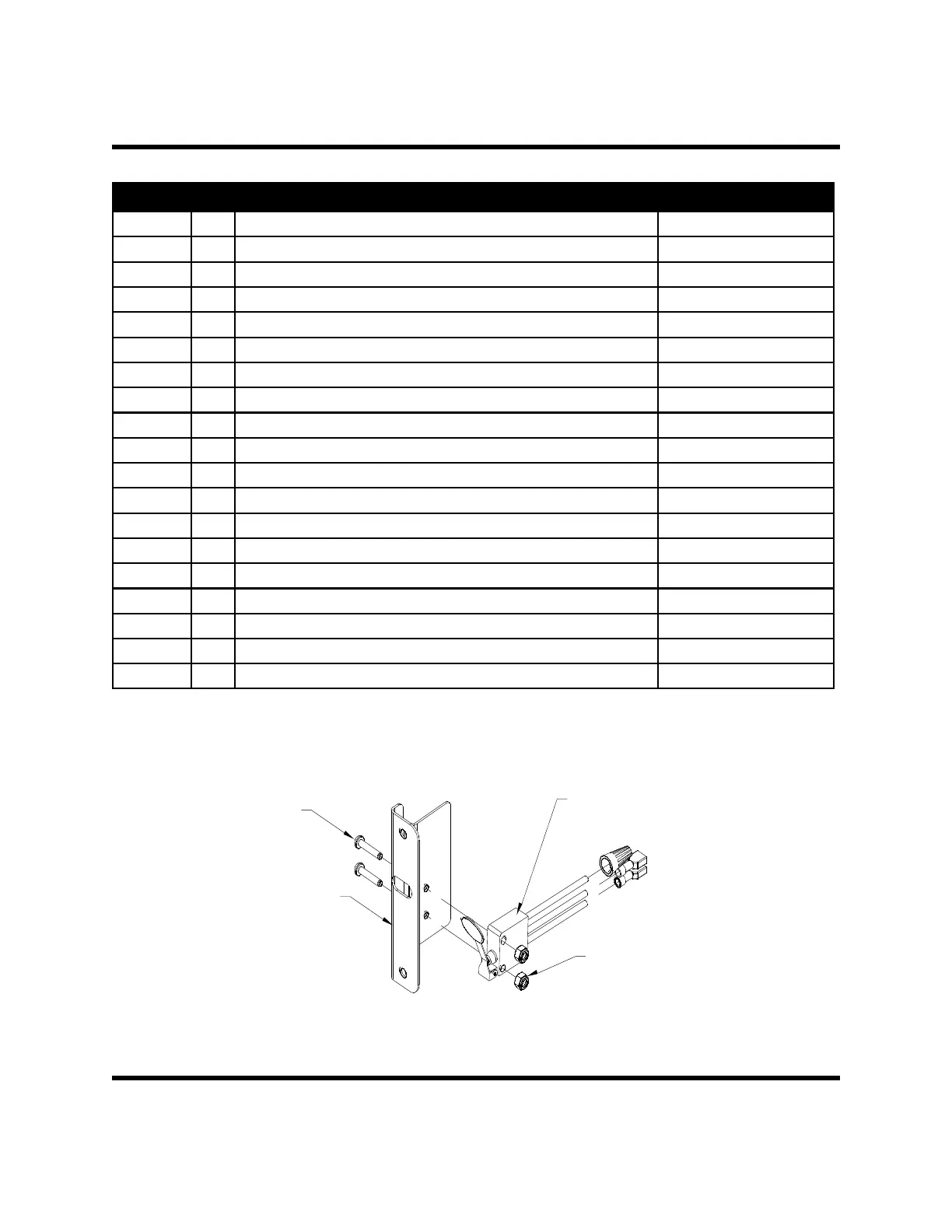

Cycle Switch Weldment
05700-003-36-81
Screw, 6-32 X 5 /8"
05305-011-39-85
Switch Cover Plate
05700-003-52-10
Lock Nut 6-32
05310-373-03-00
Cycle Switch Arm
05700-003-52-14
46
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)
WAREFORCE UH/UL 30 DOOR ASSEMBLY (CONTINUED)
Page Created: 04-07-2011
Revised: 03-11-2013
Item QTY Description Part Number
1 1 OUTER DOOR WELDMENT 05700-003-33-37
2 1 INNER DOOR 05700-003-33-21
3 1 DOOR HANDLE 05700-003-26-62
4 2 BOLT, 1/4” -20 X 3/8” LONG 05305-274-20-00
5 1 CHANNEL, RIGHT SEAL 05700-003-33-19
6 1 CHANNEL, LEFT SEAL 05700-003-33-20
7 1 CHANNEL, TOP SEAL 05700-003-33-22
8 12 SCREW, 10-32 X 1/2” PAN PHILLIPS HEAD 05305-011-44-52
9 1 BAFFLE, DOOR 05700-003-33-38
10 1 START SWITCH ASSEMBLY 05700-003-34-80
11 1 HINGE, RIGHT WELDMENT 05700-003-32-72
12 1 HINGE, LEFT WELDMENT 05700-003-32-71
13 6 SCREW, 1/4”-20 X 1/1/2” FLAT PHILLIPS HEAD 05305-011-44-50
14 2 HINGE SPACER 05700-003-33-42
15 2 STOP, DOOR HINGE 05700-003-32-55
16 2 SCREW, NUMBER 10 PAN HEAD 18-8 S/S X 1/2” 05305-173-01-00
17 2 RETAINING PLATE ASSEMBLY 05700-011-44-37
18 1 MAGNET, REED SWITCH 05930-002-68-53
19 2 LOCK NUT, 6-32 S/S HEX WITH NYLON INSERT 05310-373-03-00
