WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)
WAREFORCE™ UH 30 CHEMICAL FEEDER PUMP ASSEMBLY (CONTINUED)
Page Created: 04-01-2011
Revised: 03-11-2013
Item QTY Description Part Number
1
1 Peri Pump Weldment 05700-003-33-48
2 1 Detergent Feeder Pump (Red Roller) 36 RPM, 240V 05700-002-78-74
2 1 Motor, 36 RPM 115V (480V Machine) 04320-111-35-14
3 1 Rinse Aid Feeder Pump (Black Roller), 14 RPM 240V 05700-002-72-48
3 1 Motor, 14 RPM 115V (480V Machine) 04320-111-35-13
4 2 Nylon, Loop Strap 04320-002-71-22
5 2 Locknut, 6-32 with Nylon Insert
05310-373-03-00
6 1 Red Tube 1/4” X 14-1/2” 05700-003-33-59
7 1 Tube, Tygoprene 3/16” X 8” 05700-003-22-89
8 1 Red Tube 1/4” X 72” 05700-003-33-58
9
1
Red Tube 1/4” X 120”
05700-003-33-57
10 1 1/8” X 120” Clear Tube 05700-003-33-61
11 1 1/8” X 93” Clear Tube 05700-003-33-60
12 1 12” Long Black Sleeve 05700-003-33-63
13 1 Blue Tube, 1/4” X 22” 05700-001-86-78
14 2 Chemical Tube Stiffener 05700-002-66-49
15 1 Stop Bracket 05700-003-36-24
16 2 Screw, 10-32 X 3/8” 05305-173-12-00

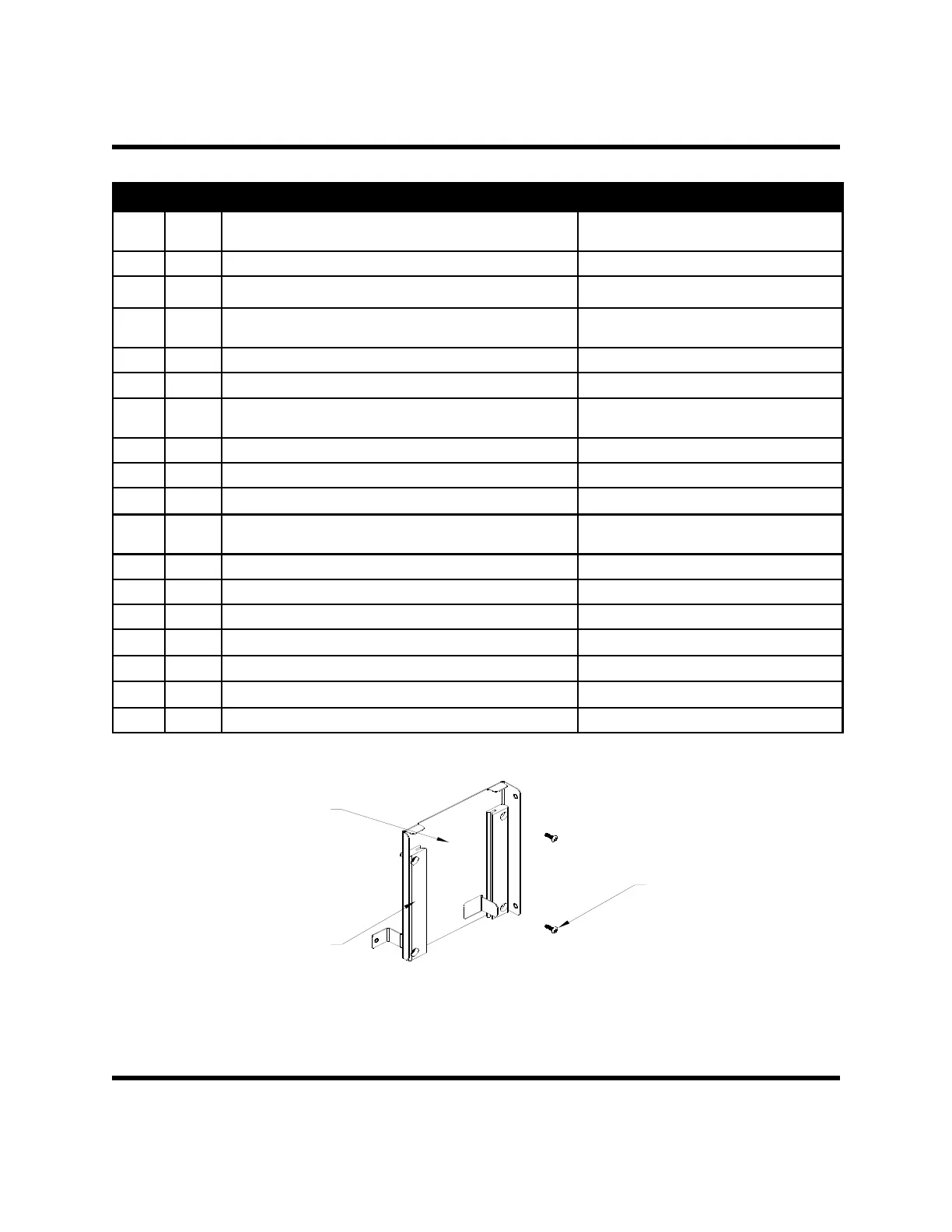

Screw, 10-32 X 5/8" Truss Head
(4 per Assembly)
05305-003-02-12
Track, Peripump
(2 per Assembly)
05700-003-33-44
Bracket, Track Mounting
05700-003-33-52
Complete Avenger HT Peripump
Track Assembly
05700-003-33-46
