ADJUSTMENTS 3
GB-11
3.8 OPC LOCK-OUT (T-HANDLE) ________________________________________________
Adjust screw
(R)
so that the OPC bail
(T)
stops shortly
after OPC lock out lever
(S)
engages the OPC bail.

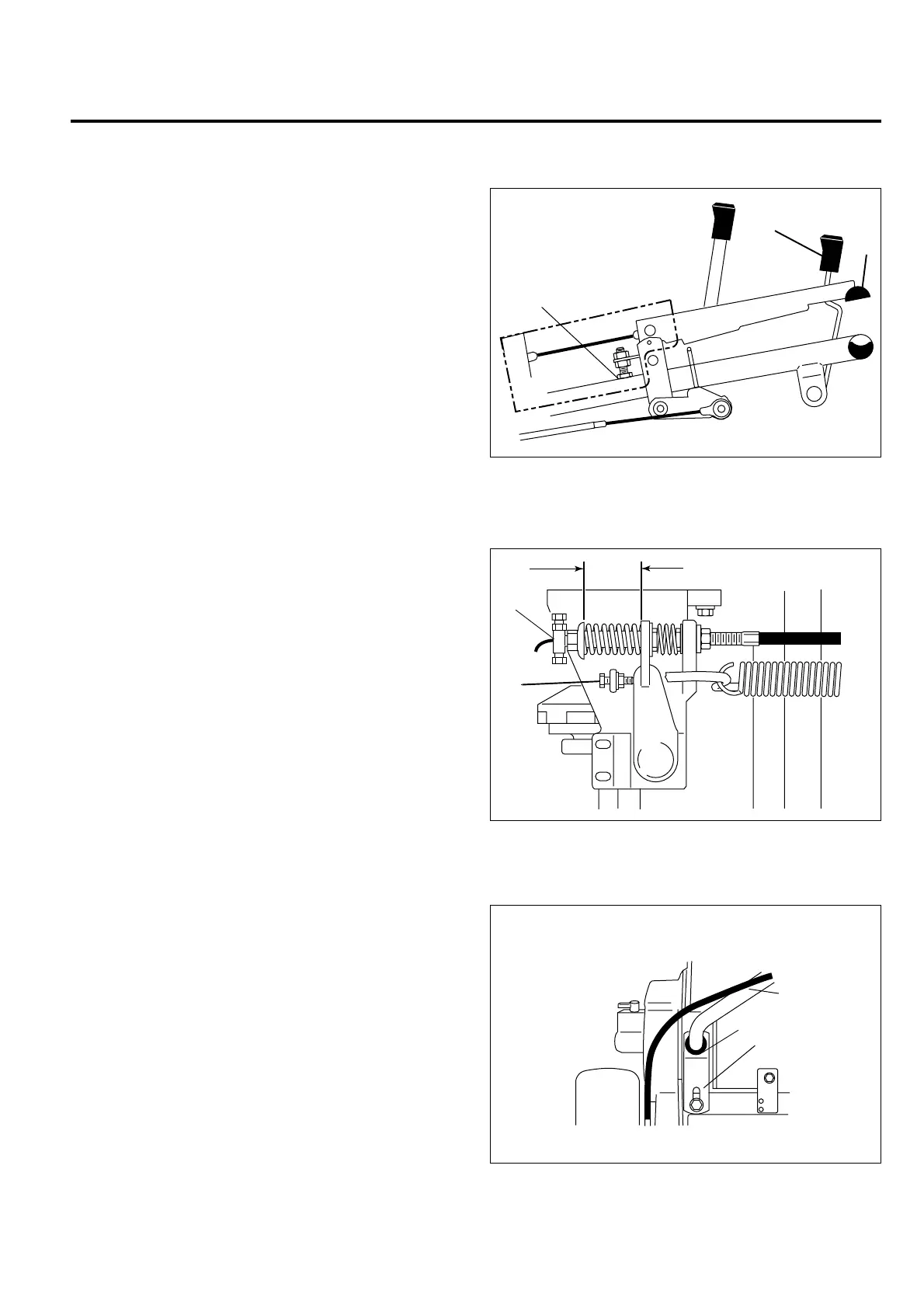

Figure 3G
3.9 CLUTCH _________________________________________________________________
Adjust stop screw
(V)
until clutch fingers are (.06 -
touching) the throw out bearing. Lock jam nut.
Pull clutch cable until OPC bail is against the stop.
The OPC Lock Out lever on T-handle units must be
properly adjusted before clutch is adjusted. (See Section
3.8)
Pin
(U)
should be against end of the bolt. Spring should
measure 1-13/16 in., (46 mm) with the clutch
disengaged. With the clutch fully engaged, the spring
should compress to 1-3/4 in., (44 mm).
Figure 3H
3.10 HANDLE _________________________________________________________________
1. To adjust the angle of the handle bar
(Y)
, loosen
screw
(W)
on both sides of the mower and adjust the
handle bar to the desired position.
2. After adjusting handle bar, adjust bracket
(X)
so that
the handle bar just rests on the bottom of the slot in
bracket. Tighten screw
(W)
.
Figure 3I
R
S
T
U
1-13/16” (46 mm) disengaged
1-3/4” (44 mm) engaged
V
Y
X
W
